Custom Load Washer Load Cell

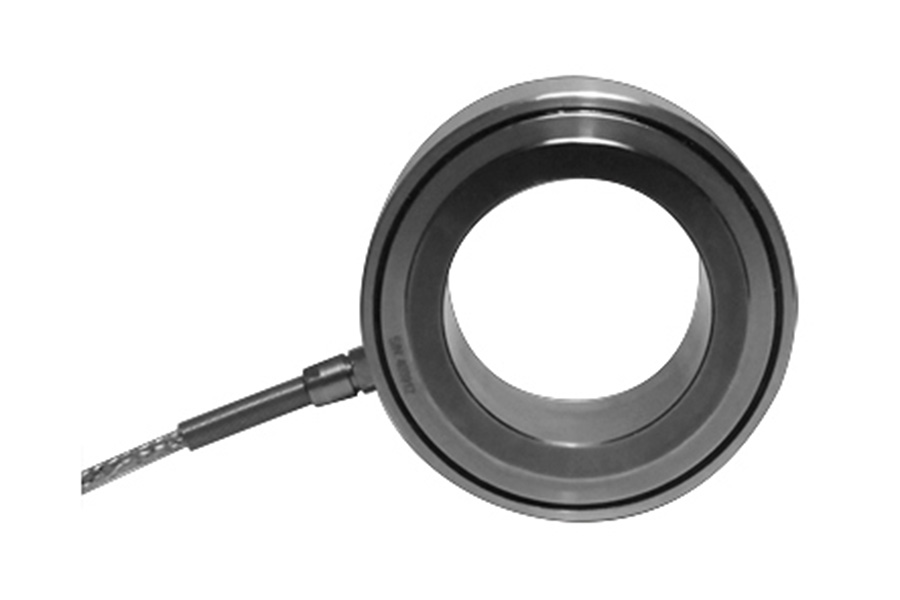

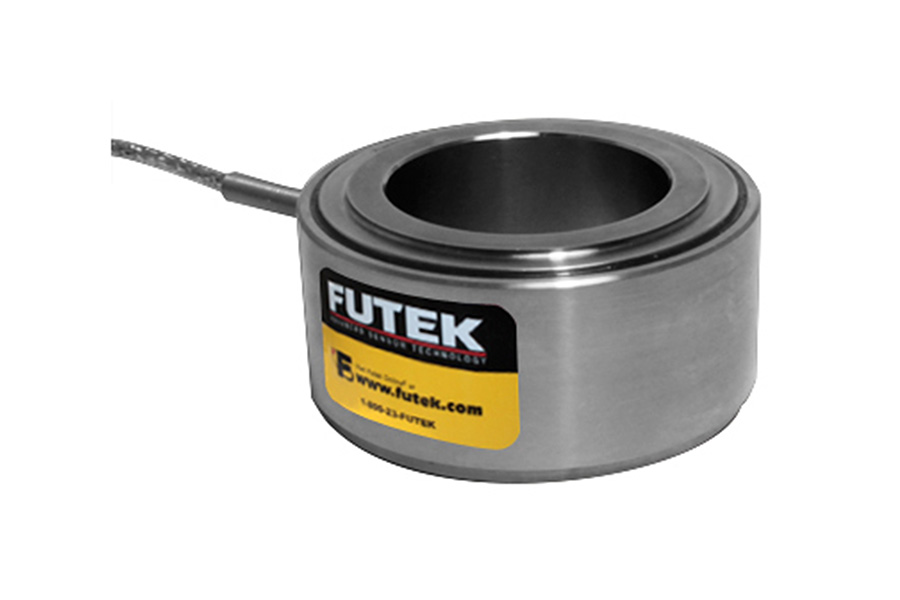

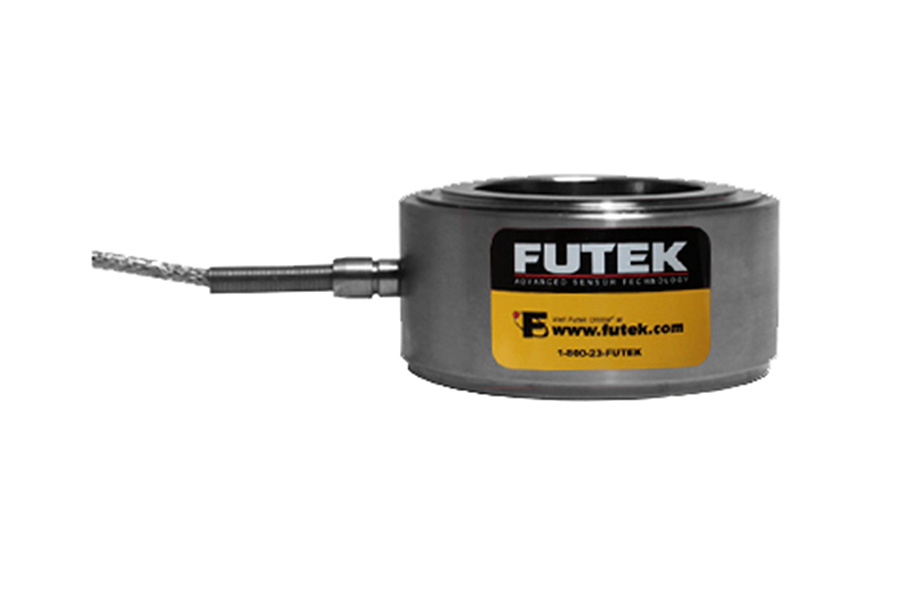

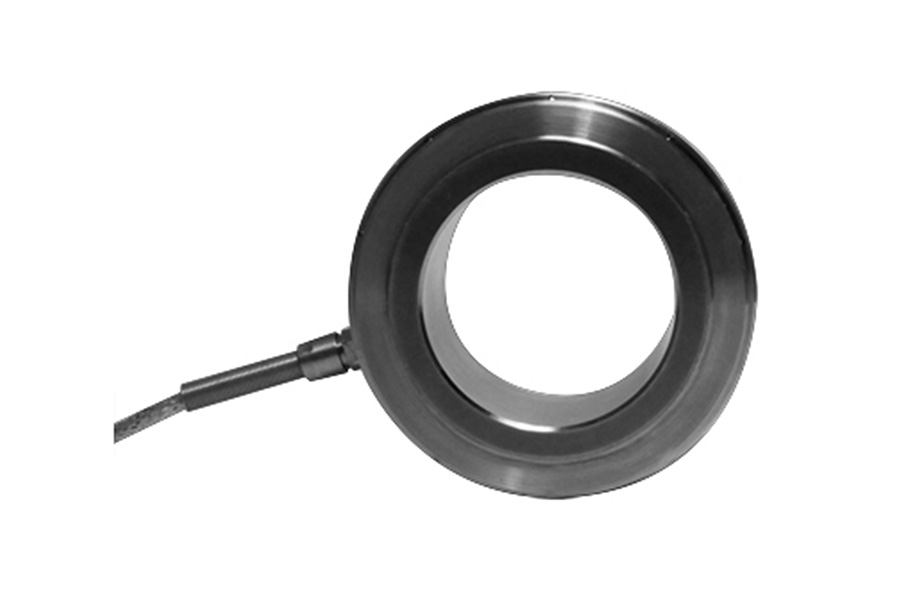

QLA343, 40000 lb , Custom Load Washer Load Cell , Material - 17-4 PH S.S. , 1.53" [38.9 mm] ID x 1.25" Height [31.8 mm] , 28 Awg 4 Conductor Braided Shielded PVC Cable , 30 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Excitation	1	1		18	Vdc
Input Resistance	1		372		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			40000	lbs
Hysteresis	1	-2		2	% of R.O.
Nonlinearity	1	-2		2	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-45		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
