Custom Tension & Compression Load Cell, Fatigue Rated

QLA373 , 50000 lb , Custom Low Profile Load Cell , Fatigue Rated , Material - 17-4 PH S.S. , 5.827" [148 mm] ID x 10.71" [272 mm] OD x 1.97" [50 mm] H , 6 Pin Bendix Receptacle , PT02E-10-6P
Listed price is in U.S. currency and subject to verification along with availability
Description

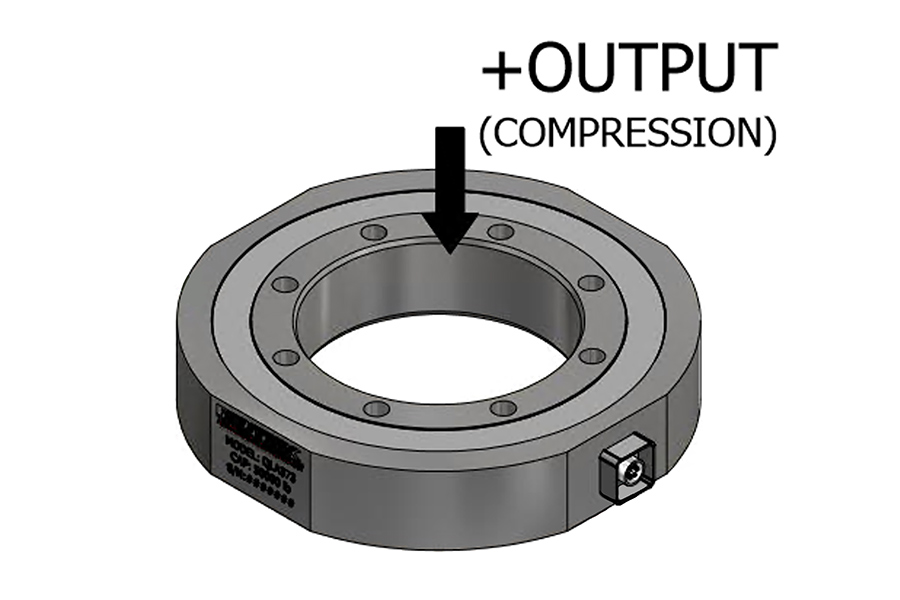

Model QLA350 is a custom low profile load cell designed to have a high measurement capacity relative to its height. Standing at only 1.97 inches (50..0 mm) tall, it is designed to measure up to 50000 lb (222.4 kN) and is fatigue-rated to withstand a high number of loading cycles. It features 8x female threads on the loading surface to allow for a uniformly distributed load.


Features
  • Designed for tension and compression applications
  • Fatigue rated
  • Machined flats and removable Bendix cover
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Shunt Calibration
1
30
kOhm
Excitation
1
1
20
Vdc
Input Resistance
1
175
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
50000
lbs
Hysteresis
1
-0.5
0.5
% of R.O.
Nonlinearity
1
-0.5
0.5
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
Output Resistance
1
175
Ohms nom.
Rated Output
1
1.5
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
