QLA132

Custom Wire Tension Load Cell

1 Products
settings
Item Number
Load Capacity
Thread Size
Inner Diameter In Inches
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Features
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
4.4961 lb
M3x0.5
0.32
1.85
1.85
1.58
1.85
Fatigue Rated, Overload Protection
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
1 ft
Tension & Compression
0.3 %RO
140 F
32 F
18 VDC
0.3 %RO
IP40
2024-T4
QLA132 , 20 N , Custom Wire Tension/Roller Tension Shear Force Load Cell , Supports Pulley w/ 8 mm Shaft , 500% Safe Overload Protection , Material - 2024-T4 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 1 ft Long
160 F
60 F
Y

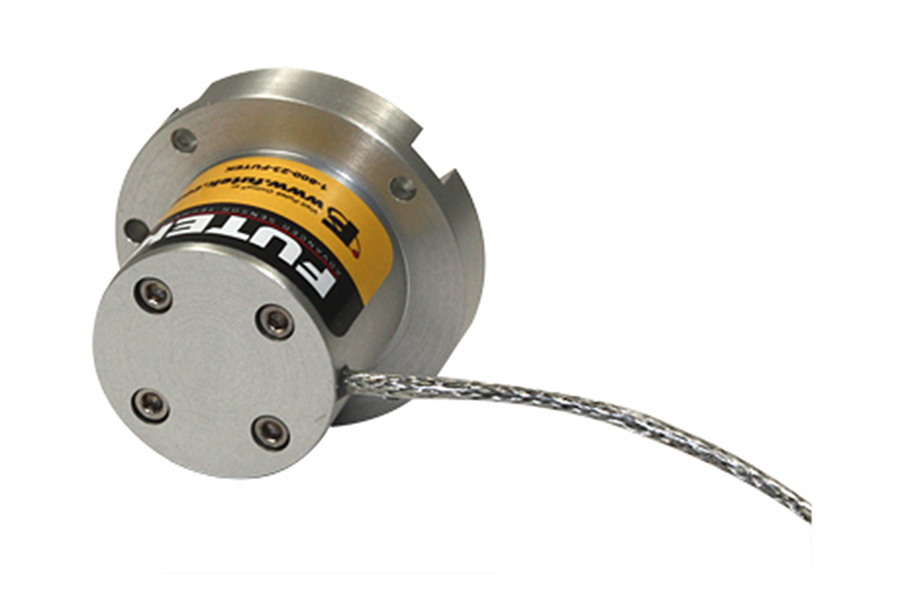

Model QLA132 is a custom load cell designed to measure wire tension. It is offered in three capacities: 0.5 lb (2.5 N), 5 lb (20 N), and 11 lb (100 N). It can measure wires up to 0.32” (0.81 cm) in diameter, and features a safe overload protection of 500% of the Rated Output. The load cell has a maximum diameter of 1.85” (4.7 cm). This load cell has a nonlinearity of +/- 0.3% and nonrepeatability of +/- 0.3% of its Rated Output. It is constructed out of aluminum and includes a 12” (30.5 cm) 28 AWG 4 conductor shielded PVC cable.


FUTEK’s QLA132 is a Custom Roller Tension Shear Force Load Cell for both closed-loop and open-loop tension control that can be applied in the calendering process of battery manufacturing automation. This model can be further customized according to your roller tension measurement needs.

QLA132
QLA132
QLA132
QLA132
QLA132
+
