QLA413 play_arrowQSH02027

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

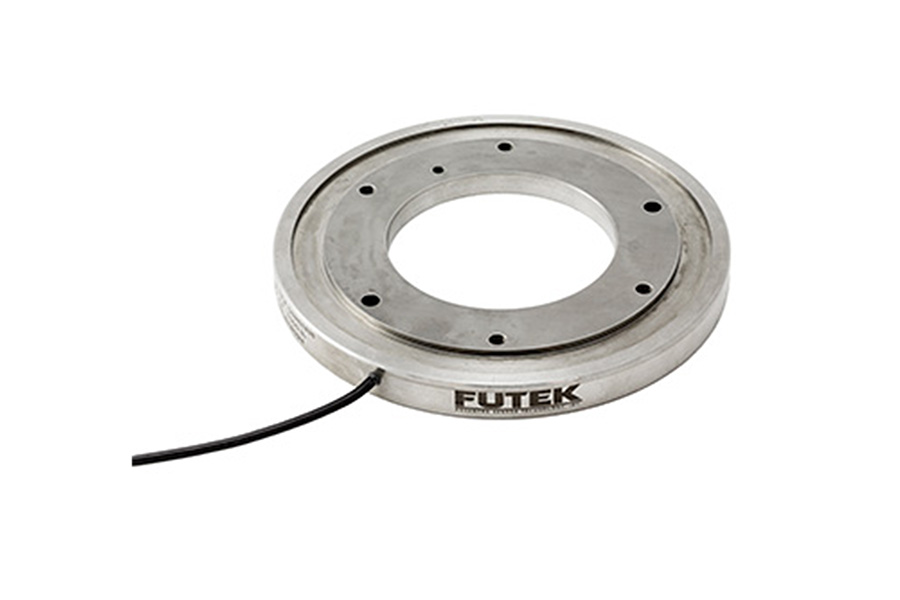

QLA413, 1000 lb , Custom Flange Style Thru Hole Load Cell, Material - 17-4ph S.S. ,Shear & Moment Resisting , 2.13" [54 mm] ID x 4" [101.6 mm] OD x 0.38" [9.5 mm] H , 29 Awg 4 Conductor Spiral Shielded Silicone , 10 ft Long
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Model QLA413 is a custom flange style thru-hole load cell designed to minimize the effects of shear (up to 100 lbs) and moment (up to 400 in-lb) loads.  It offers a rated capacity of 1000 lb (4440 N), with a safe overload protection of 1500 lb (6672 N). With a diameter of 4.000” (101.6 mm) and a height of 0.375” (9.5 mm), it useful in applications that require a low profile. It is constructed of 17-4 PH stainless steel. This load cell is designed to measure loads in compression and is thermally compensated for 50 to 100 °F (10 to 38 °C). It offers a nonlinearity of ± 1.0% of the Rated Output. It includes a #29 AWG 4 conductor shielded cable 10 ft (3 m) long.


Features
  • Special design to minimize effects of shear and moment loads
  • Low profile design
  • Used in compression applications
  • Integrated output cable
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Shunt Calibration
1
100
kOhm
Excitation
1
1
15
Vdc
Input Resistance
1
700
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
1000
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.5
0.5
% of R.O.
Output Resistance
1
700
Ohms nom.
Rated Output
1
3
mV/V nom.
Compensated Temperature
1
50
100
F
Operating Temperature
1
-60
200
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
