QLA393 QSH02039

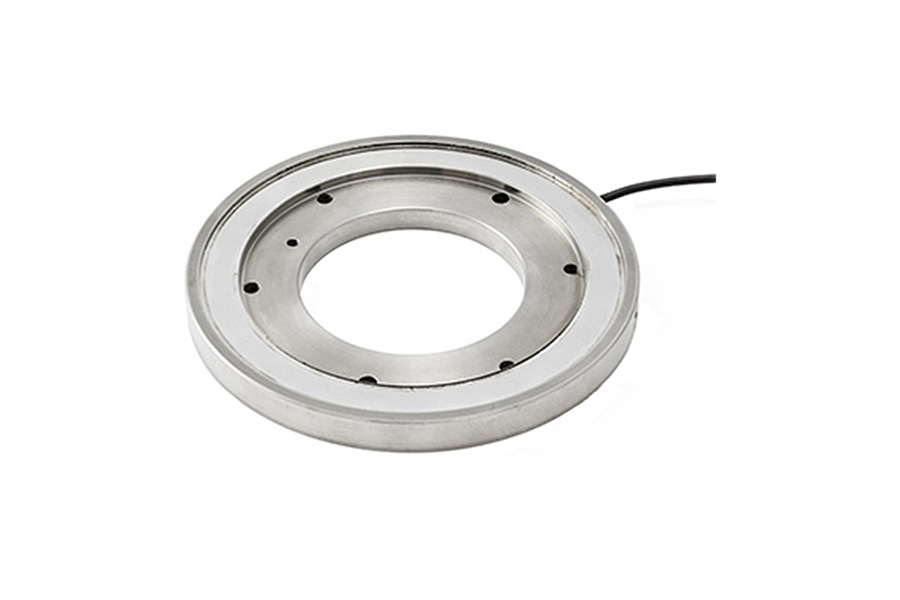

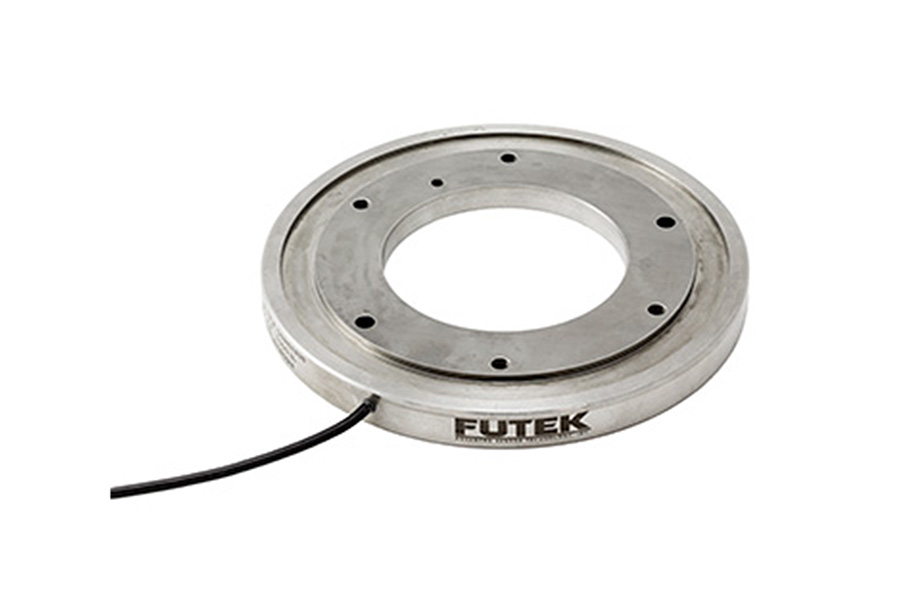

Diaphragm Load Cell 3/8 in Thick Moment and Shear Resistant

QLA393 , 1000 lb , Custom Flange Style Thru Hole Load Cell w/ ID Lobe Pockets , Material - 17-4ph S.S. , Shear & Moment Resisting , 2" [50.8 mm] ID x 4" [101.6 mm] OD x 0.375" [9.5 mm] H , 29 Awg 4 Cond Spiral Shielded Silicone , 10 ft Long

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		100		kOhm
Excitation	1	1		15	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			1000	lbs
Hysteresis	1	-1		1	% of R.O.
Nonlinearity	1	-1		1	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		3		mV/V nom.
Compensated Temperature	1	50		100	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
