Item Number | Load Capacity | Thread Size | Height In Inches | Length In Inches | Width In Inches | Environmental Conditions | Features | Description | Output Type | Connection Type | # Of Bridges/channels | Connector Type | Cable Type | Cable Length | Load Directions | Nonrepeatability | Max Operating Temperature | Custom Special | Min Operating Temperature | Max Excitation | Nonlinearity | Input Resistance | Ip / Nema Rating | Material | Max Compensated Temperature | Min Compensated Temperature | Weight In Lb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

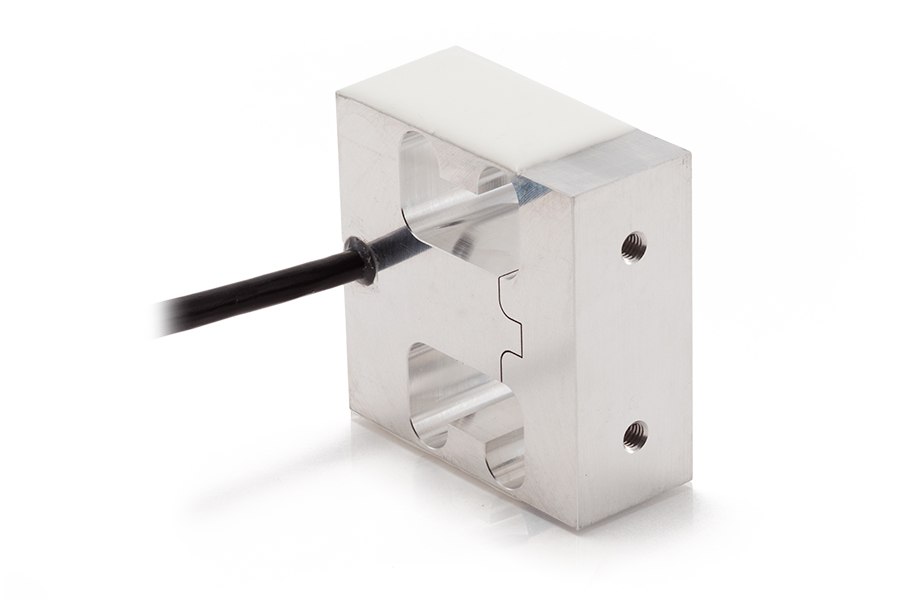

15 lb | M5x0.8 | 2.36 | 2.36 | 1.02 | Water Resistance | Overload Protection, RoHS | QLA285 , 15 lb , Ultra High Accuracy Parallel Beam Load Cell with Overload Protection , RoHS Compliant , Replacement for Ishida TLC-6L , Material - 2024-T4 , M5x0.8-Thread , 26 Awg 4 Conductor Foil Shielded PVC Cable , 8 in. Long | mV/V | Cable | 1 | 8 in | Tension & Compression | 0.01 %RO | 160 F | Y | 0 F | 18 VDC | 0.05 %RO | 350 Ohm | IP65 | 2024-T4 | 160 F | 60 F | 0.4 |
highlight_off
Commonly used in food packaging applications for precise weighing automation. Offered in both a version with or without high overload protection with high IP64 environmental protection.
Replacement for Ishida load cell.
