Parallel Beam Load Cell

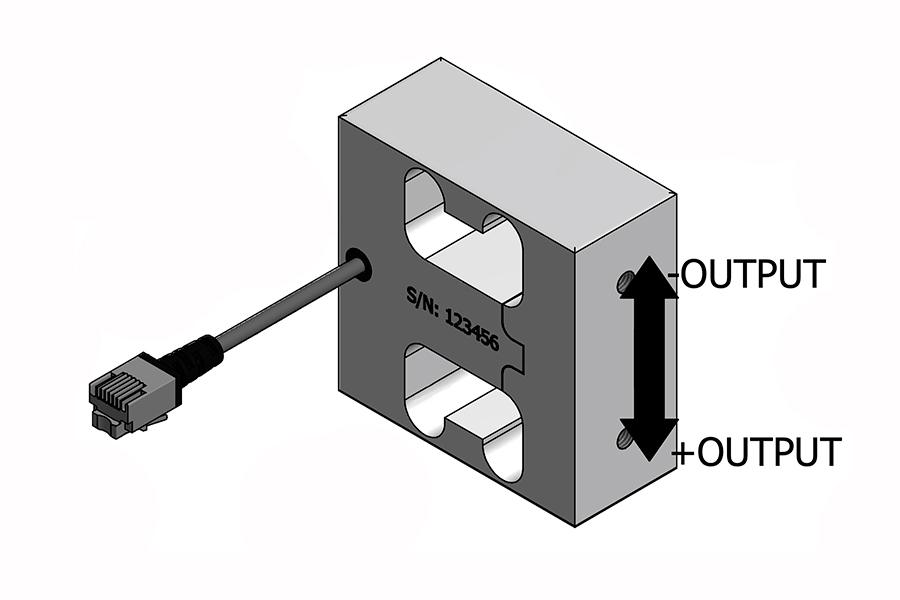

QLA378 , 15 lb , Ultra High Accuracy Robust Parallelogram Beam Load Cell , 2024-T4 , M5x0.8-Thread , RoHS Compliant , IPC620 , 1000% Overload Protection , 28 Awg 4 Conductor PVC Cable , 6.9 in. Long , with Molded RJ11 6P/4C Connector

Spec Sheet

3D Model Download

Listed price is in U.S. currency and subject to verification along with availability

Description

Shear beam load cells deliver exceptional stability in the case of lateral or side forces. Shear strains on the spring element do not change when the load application point moves within a specific range, which is desirable in applications where the load application force varies. Therefore, the electrical signal output of the strain gauge bridge is proportional to the applied force, regardless the point where the load is applied.

Shear beam load cell is also known as bending load cell, parallelogram load cell or Parallel Beam Load Cell, is widely used in industrial weighing scale and general measurement applications where robustness is required.

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		60.4		kOhm
Excitation	1	1		18	Vdc
Input Resistance	1		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	lbs
Capacity	1			15	lbs
Hysteresis	1	-0.03		0.03	% of R.O.
Nonlinearity	1	-0.03		0.03	% of R.O.
Nonrepeatability	1	-0.01		0.01	% of R.O.
Output Resistance	1		350		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1			160	F
Temperature Shift Span	1	-0.01		0.01	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-2		2	% of R.O.
