QLA107

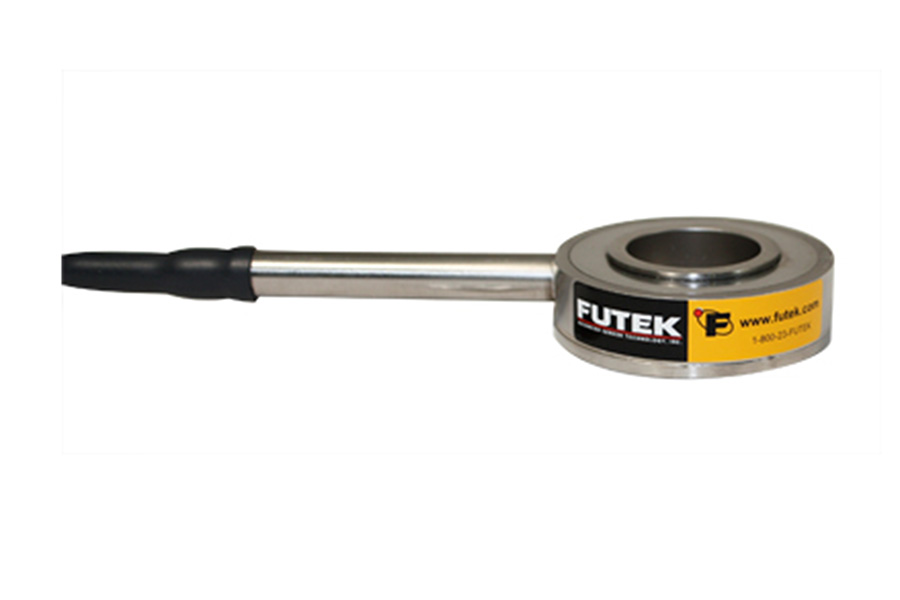

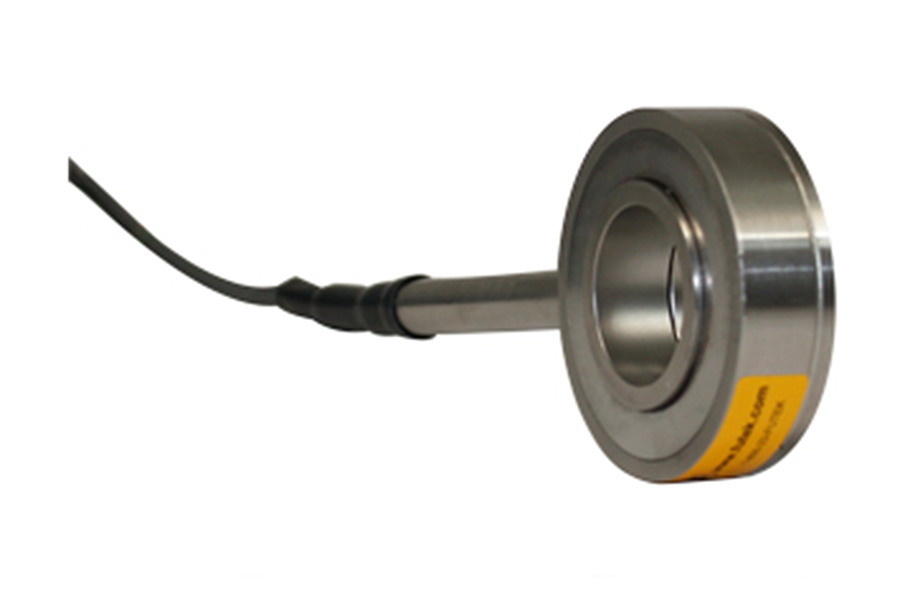

Thru Hole/Donut Load Cell with Welded Washer

1 Products
settings
Item Number
Load Capacity
Inner Diameter In Inches
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Custom Special
1000 lb
0.95
1.98
0.62
1.98
1.98
mV/V
Cable
1
24 Awg 4 Conductor Braided Shielded PVC Cable
15 ft
Compression
0.5 %RO
200 F
-40 F
18 VDC
2 %RO
700 Ohm
IP64
17-4 PH S.S.
QLA107 , 1000 lb , Thru Hole/Donut Load Cell with Welded Washer , Material - 17-4 PH S.S. , 0.95" [24.1 mm] ID , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long
160 F
60 F
Y
