Xcite Load Cell

QLA186 , 5000 lb , Xcite Load Cell , Welded SS Cover , Material - 17-4 PH S.S. , 1/2-20-Thread , 4 Pin Microtech Receptacle DR-4S , Includes 301 KOHM Resistor
Listed price is in U.S. currency and subject to verification along with availability
Description

Custom Miniature Inline Threaded Tension and Compression Load Cell

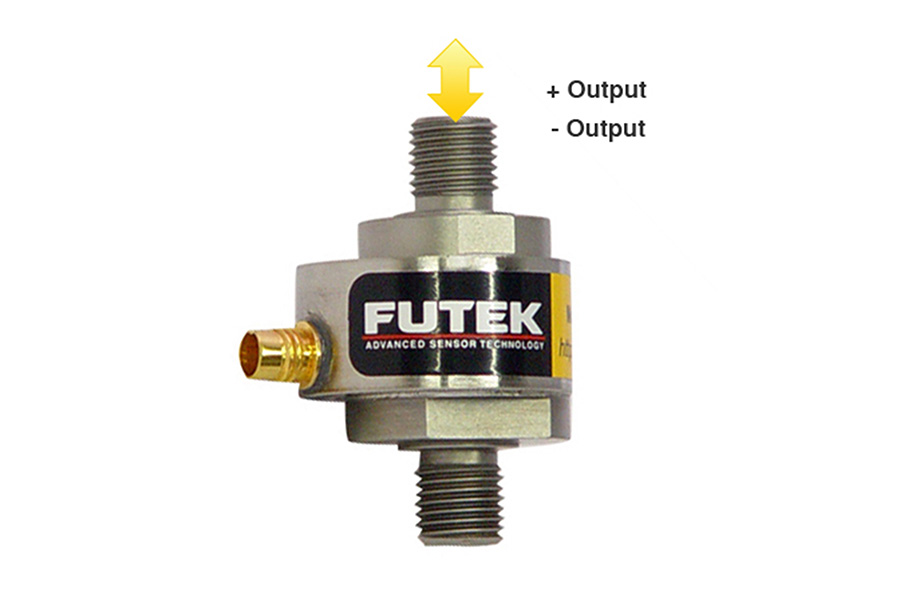

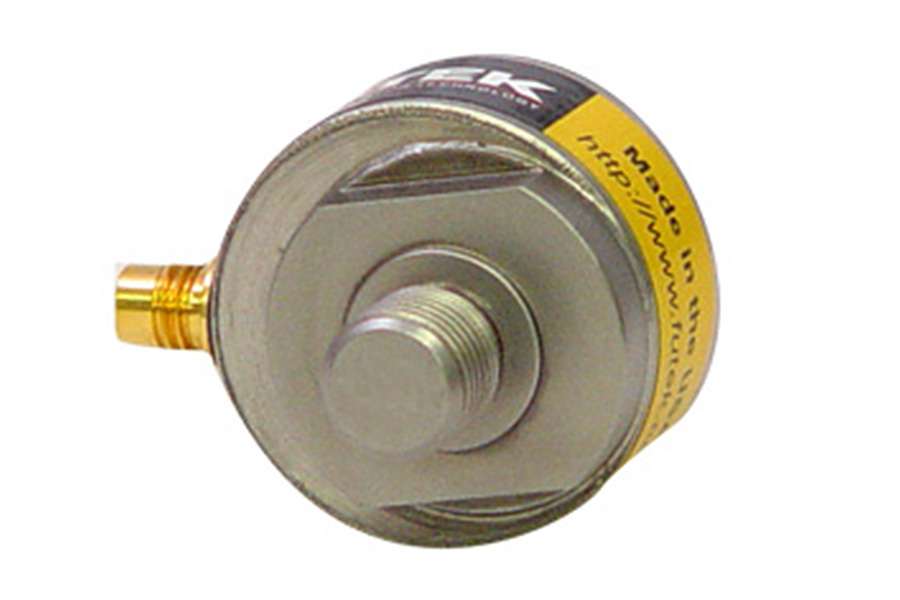

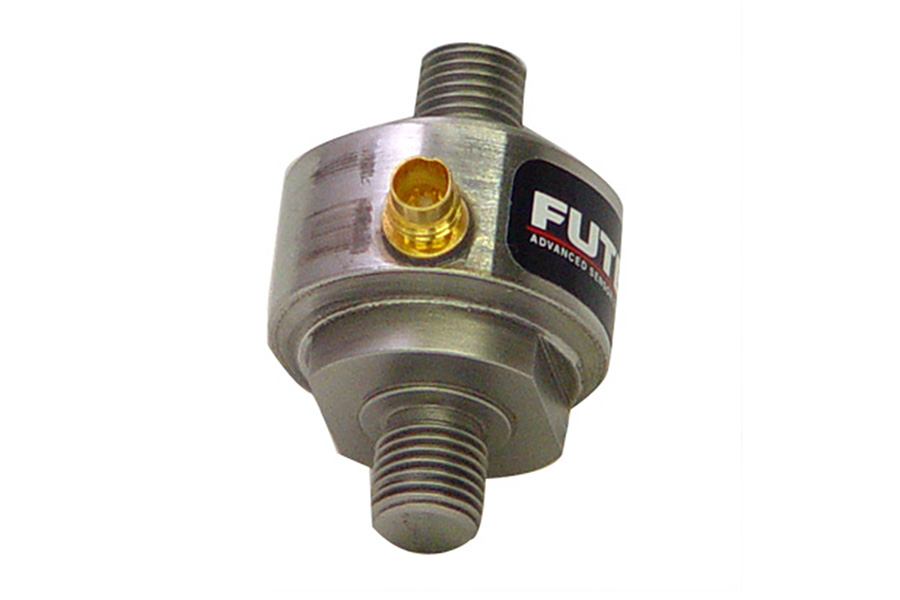

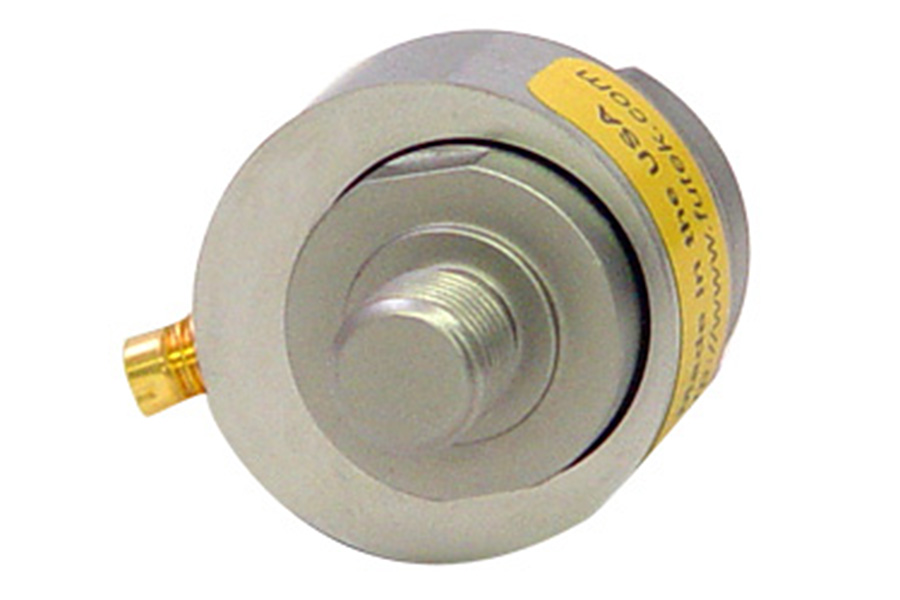

Model QLA186 is a Custom In Line Load Cell built for Endurance, Press, or Inline applications. The custom QLA186 In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a Microtech 4 Pin Receptacle. This product offers an exceptional miniature design with a height of 1.75” and a diameter of 1.12”. You will also find options mating cable/connector packages readily available.

The QLA186 In Line Load Cell offers high accuracy and high stiffness. It has Nonlinearity of ±0.5% and Deflection of 0.001” to 0.002” nominal. The custom QLA186 In Line Load Cell can be modified or customized to meet your requirements. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.

Product Highlights:
  • Weight: 2.5 oz
  • Miniature Design
  • Low Deflection
  • 17-4 Stainless Steel Construction
  • In both Tension & Compression
  • Utilizes Metal Foil Strain Gauge Technology

For those who are a looking for a complete system solution, FUTEK can provide signal conditioned displays, inline amplifiers, or USB Output Kits. FUTEK’s USB Output Kits make things plug and play on any Windows Based PC. FUTEK's QLA186 is also available with TEDS / IEEE1451.4 option.

Features
  • 20 kHz Natural Frequency
  • Ulta Low Deflection
  • Includes 301 kOhm Shunt Resistor
  • NIST Traceable Compression Calibration Certificate Included
  • Integrated Connector
  • Welded Construction
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
350
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Safe Overload
1
150
% of R.O.
Capacity
1
5000
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.2
0.2
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
1
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
50
150
F
Temperature Shift Span
1
-0.02
0.02
% of Load/F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
Zero Balance
1
-2
2
% of R.O.
+
