QTA

Filterskeyboard_arrow_right
# InStock
OUTPUT TYPE
mV/V (15)
ENVIRONMENTAL CONDITIONS
High Temperature (1)
MAX OPERATING TEMPERATURE
160 F (1)
194 F (3)
200 F (9)
365 F (1)
MIN OPERATING TEMPERATURE
-60 F (10)
0 F (1)
14 F (3)
IP / NEMA RATING
IP20 (3)
IP40 (10)
ROTARY TYPE
Slip ring (3)
# OF BRIDGES/CHANNELS
1 (16)
MAX COMPENSATED TEMPERATURE
113 F (1)
122 F (2)
160 F (10)
365 F (1)
MIN COMPENSATED TEMPERATURE
41 F (2)
60 F (11)
68 F (1)
DESCRIPTION

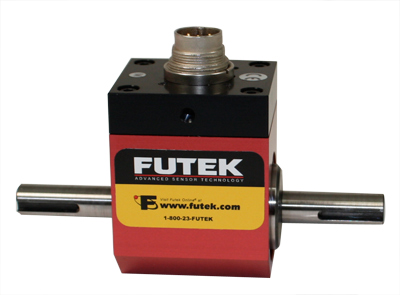

QTA106, 100 in-lb , Shaft to Shaft Rotary Torque Sensor, 3/8 Dia Shaft, 1/8 Key Way , Material - 17-4 PH S.S., 6 Pin Bendix Receptacle, PT02A-10-6P (1)
QTA116 , 80 N-m , Custom Reaction Torque Sensor , Material - 7075-T6 , 28 Awg 4 Conductor Braided Shielded Clear PVC , 6 in Long w/ DB9 Male and Auto Recognition (1)
QTA138 , 1 N-m , Custom Micro Reaction Torque , 18 mm W x 16.2 mm H x 10 mm ID , RoHS Compliant , Material - 2024-T4 AL , 34 Awg 4 Conductor Braided Cable, 6 in. Long (1)
QTA138 , 1 N-m , Custom Micro Reaction Torque , 18 mm W x 16.7 mm H x 10 mm ID , RoHS Compliant , Material - 15-5 PH S.S. , 34 Awg 4 Conductor Braided Cable, 6 in. Long (1)
QTA141 , 1 N-m , Custom Micro Thru Hole Reaction Torque Sensor , RoHS Compliant , 10 mm ID x 22 mm OD x 10 mm H , Material - 2024-T4 , 34 Awg 4 Conductor Braided Cable , 6 in Long (1)
QTA141 , 1.5 N-m , Custom Micro Thru Hole Reaction Torque Sensor , RoHS Compliant , 10 mm ID x 22 mm OD x 10 mm H. , Material - 2024-T4 , 34 Awg 4 Conductor Braided Cable , 6 in Long (1)
QTA141 , 2 N-m , Custom Micro Thru Hole Reaction Torque Sensor , RoHS Compliant , 10 mm ID x 22 mm OD x 10 mm H , Material - 2024-T4 , 34 Awg 4 Conductor Braided Cable , 6 in Long (1)
QTA142 , 20 Nm , Custom High Temperature Flange To Flange Reaction Torque Sensor , RoHS Compliant , 1" [25.55 mm] OD x 1.5" [38.1 mm] H x 0.47" [12mm] ID , Operating Temperature up to 365 F [185 °C] , 34 Awg 4 Conductor Cable , 20 in (1)
QTA143 , 0.75 N-m , Miniature Low Capacity Through Hole Flange to Flange Reaction Torque Sensor , 14 mm ID x 10 mm H x 26 mm square , RoHS Compliant , 2024-T4, #30 Awg 6 Conductor Braided Shielded PVC Cable , 2 ft [0.6 m] Long (1)
QTA152 , 1 N-m , Custom Micro Reaction Torque Sensor , 9 mm ID x 13.1 mm H x 20 mm OD , RoHS EU 2015/863 Compliant, Material - 2024-T4 , 4 Conductor Flex Cable , 0.5 mm Pitch , for connector FH19C-4S-0.5SH (1)
QTA152 , 1 N-m , Custom Micro Reaction Torque Sensor w/ Thru Hole , 9 mm ID x 13.1 mm H x 19.3 mm OD , RoHS Compliant , Material - 2024-T4 , 4 Conductor FFC Flex Cable , 0.5 mm Pitch , 1 in Long (1)
QTA152 , 1.5 N-m , Custom Micro Reaction Torque Sensor , 9 mm ID x 13.1 mm H x 20 mm OD , RoHS EU 2015/863 Compliant, Material - 2024-T4 , 4 Conductor Flex Cable , 0.5 mm Pitch , Built to Customer Rev 03 & Compliant to Rev 05 (1)
QTA152 , 1.5 N-m , Custom Micro Reaction Torque Sensor w/ Low Temperature and Off-Axis Load Sensitivity , 9 mm ID x 13.1 mm H x 20 mm OD , RoHS EU 2015/863 Compliant , Material - 2024-T4 , 4 Conductor Flex Cable , 0.5 mm Pitch (1)
QTA158 , 60 N-m , Custom Reaction Torque Sensor - B5 Wrist , 45 mm ID x 10.25 mm H x 72 mm OD , RoHS Compliant , Material - 2024-T4 , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 2 ft Long (1)
QTA163 , 1 N-m , Micro Rotary Torque Sensor w/ Integrated TEDS , 5 mm Male Shaft to Shaft with Flats , RoHS Compliant , Material - 17-4PH S.S. Shaft with Aluminum Housing , 7 Pin Quick Disconnect Nano Receptacle (1)
QTA163 , 2 N-m , Micro Rotary Torque Sensor w/ Integrated TEDS , 6 mm Male Shaft to Shaft , RoHS Compliant , Material - 17-4PH S.S. Shaft with Aluminum Housing , 7 Pin Quick Disconnect Nano Receptacle (1)
CUSTOM SPECIAL
N (1)
Y (15)
16 Products

FUTEK is a leading measurement solutions provider that designs and develops a wide range of custom torque sensors, utilizing one of the most advanced technologies in the sensor industry: metal foil strain gauge technology. We have deep expertise in creating custom solutions for complex applications. Our sensors are designed to perform reliably and accurately under the most extreme temperature and environmental conditions.

Since 1988, FUTEK's in-house multidisciplinary engineering team has been engaged in hundreds of custom torque sensor design programs (aka bespoke torque sensor), ranging from aerospace mission-critical NASA programs to miniature surgical robot sensors. Our custom sensor design approach encompasses all phases of the project: from the early custom sensor design inputs, prototype / pilot run, design for manufacturability reviews (preliminary, critical, and final), high-volume production build phase all the way to the assembly and integration in the end-user final product/system.

custom load cells custom load transducer custom force sensor custom load cell design
Fig. 1: Benefits of early engagement with FUTEK for your torque measurement sensor design program.

Benefits of early engagement on OEM / Custom Torque Sensor projects:

  • Save money and resources
  • Enhance your application performance
  • Optimize the mounting configuration
  • Maximize ease of manufacturability

Our world-class electronics take your custom sensor performance to new heights. The earlier you engage with us on your next custom torque sensor design project, the more capabilities we can squeeze in, including:

  • Ability to customize PEC geometry and interconnectivity
  • Safety and fault detection features for maximum reliability
  • System integration with in-situ calibration with sensor
  • Design for low power consumption

You gain a lot of value by engaging early with us for your OEM applications. What happens when you engage late in the game?

  • Constrained sensor geometry
  • Limited mounting configurations
  • Limited components procurement
  • Expediting fee for POs
  • Costly design changes

Reach out to our Application Engineers today and discuss how you can benefit from our 30+ years of know-how in the force and torque measurement industry.
