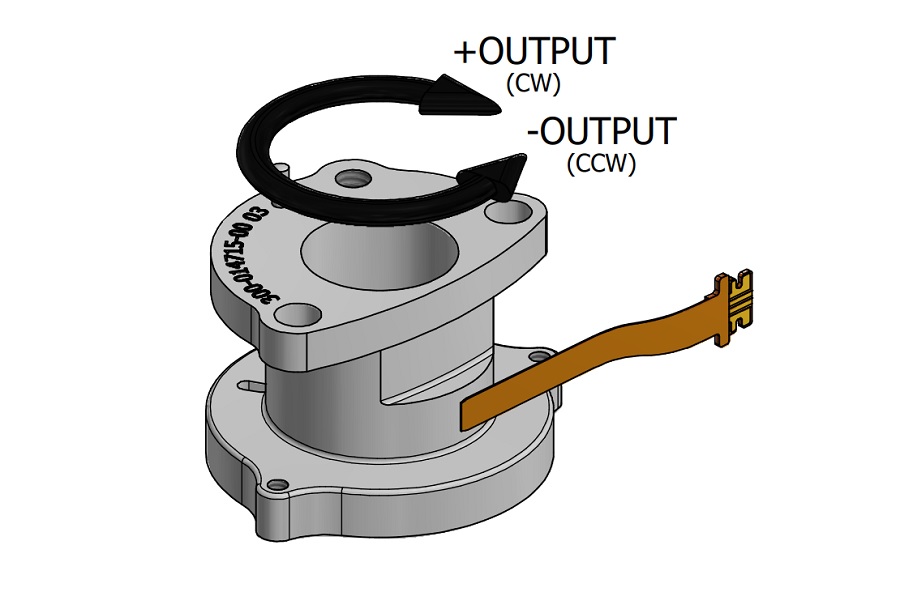

Custom Micro Reaction Torque Sensor

QTA152 , 1.5 N-m , Custom Micro Reaction Torque Sensor , 9 mm ID x 13.1 mm H x 20 mm OD , RoHS EU 2015/863 Compliant, Material - 2024-T4 , 4 Conductor Flex Cable , 0.5 mm Pitch , Built to Customer Rev 03 & Compliant to Rev 05

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

The QTA152 micro reaction torque sensor is one of the smallest torque sensor in FUTEK’s catalog.

Its unique geometry allows it to fit in applications where precision closed-loop torque measurements have previously not been possible. By matching the motor/gearhead assembly diameter without adding to its size, the QTA152 allows for precise torque measurement in a very dense array, which maximizes the real state utilization of the assembly. Its unique motor mounting provisions do not require adapters, which would increase the system's height and weight.

Allows for multiple mounting configurations
Can mount directly onto a brushless DC motor
A large ID supports the motor shaft coupler
Very thin and flexible cable withstands the tight bending radius and physical stress associated with moving applications
Can be integrated with electronics for custom requirements
High precision and reliability
Ideal for medical surgical robots or any dynamic application
It can be modified to suit OEM applications
Low height (13.1mm) allows easy integration to most joints and motor

Features

5 times smaller than conventional torque sensors
10 times more accurate that current loop torque measurement
Sized to mount to precision servo motors

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		5		Vdc
Bridge Resistance	1		1000		Ohms nom.
Excitation	1	1		10	Vdc
Input Resistance	1		1000		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			333	% of R.O.
Capacity	1			1.5	N-m
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.2		0.2	% of R.O.
Output Resistance	1		1000		Ohms nom.
Rated Output	1		0.75		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.04		0.04	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
