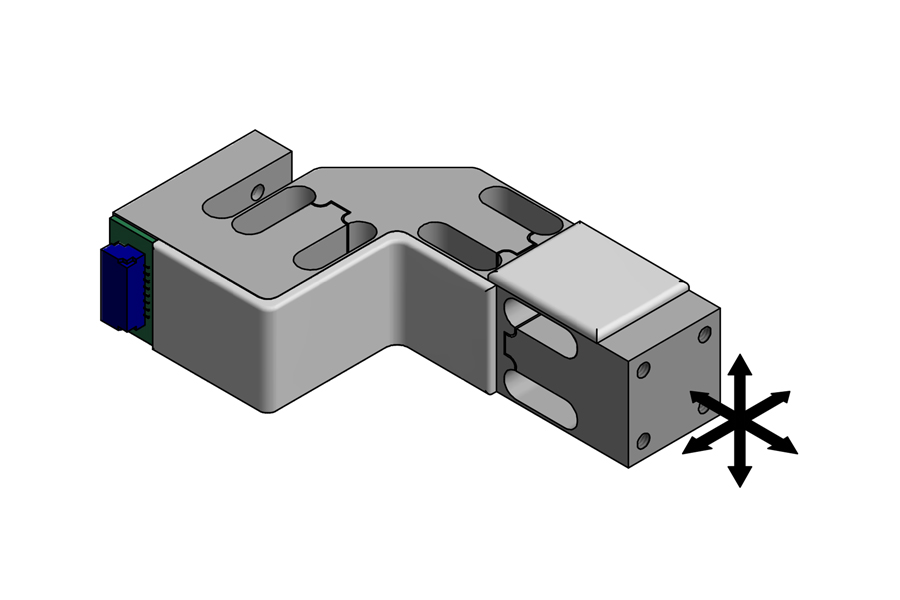

3 Axis Load Cell w/ Overload Protection

QMA147, Ch 1: 5 lb; Ch 2: 5 lb; Ch 3: 5 lb, Custom Tri-Axial Bending Beam Load Cell with M2.5 Mounting, RoHS Compliant, Board Mount JST 8 Pin SM08B-SRSS-TB
Listed price is in U.S. currency and subject to verification along with availability
Description
Features
  • Overload Protection in all 3 Degrees of Freedom
  • Compact Size
  • Integrated Latching Receptacle
Technical Documents
Specifications
Calibration
Electrical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
2
10
Vdc
3
10
Vdc
Excitation
1
1
15
Vdc
2
1
15
Vdc
3
1
15
Vdc
Input Resistance
1
117
Ohms nom.
2
117
Ohms nom.
3
117
Ohms nom.
Capacity
1
5
lbs
2
5
lbs
3
5
lbs
Hysteresis
1
-0.25
0.25
% of R.O.
2
-0.25
0.25
% of R.O.
3
-0.25
0.25
% of R.O.
Nonlinearity
1
-0.25
0.25
% of R.O.
2
-0.25
0.25
% of R.O.
3
-0.25
0.25
% of R.O.
Nonrepeatability
1
-0.1
0.1
% of R.O.
2
-0.1
0.1
% of R.O.
3
-0.1
0.1
% of R.O.
Output Resistance
1
350
Ohms nom.
2
350
Ohms nom.
3
350
Ohms nom.
Rated Output
1
1.5
mV/V nom.
2
1.5
mV/V nom.
3
1.5
mV/V nom.
Compensated Temperature
1
60
160
F
2
60
160
F
3
60
160
F
Operating Temperature
1
180
F
2
180
F
3
180
F
Temperature Shift Zero
1
-0.01
0.01
% of R.O./F
2
-0.01
0.01
% of R.O./F
3
-0.01
0.01
% of R.O./F
Zero Balance
1
-5
5
% of R.O.
2
-5
5
% of R.O.
3
-5
5
% of R.O.
Related Accessories
Cable Assembly , 6 inch [15 cm] Long , 8 Position JST 08SR-3S Both Ends , 30 Awg Black Wires , Mates to LSM305 & QMA147
QMA147 Connector Cable Assembly, 3x 29 AWG 4 Conductor Spiral Shielded Silicone inside of mesh jacket , For USB225 , 5 ft Long
+
