QMA148 play_arrowQSH02089

Custom Low Profile Torque and Thrust Biaxial Sensor

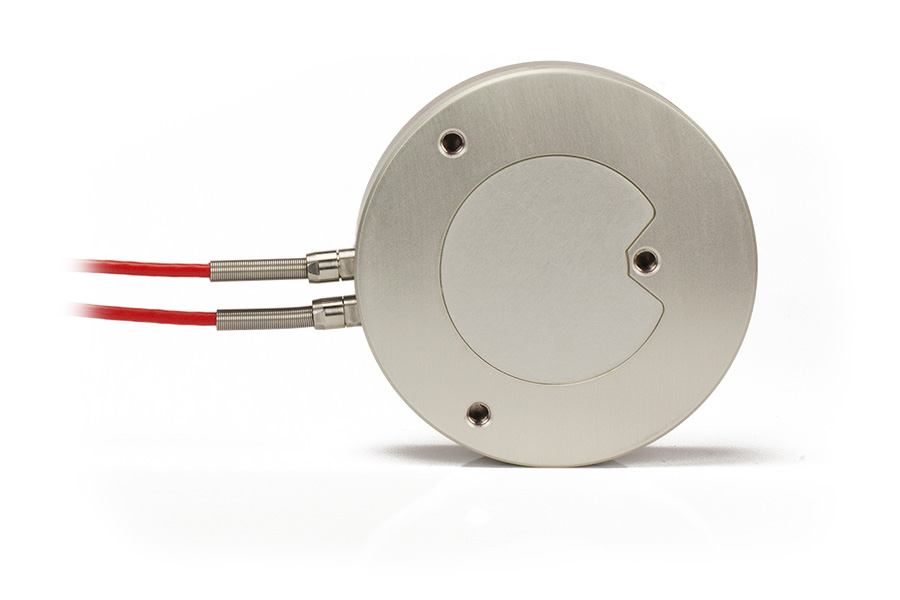

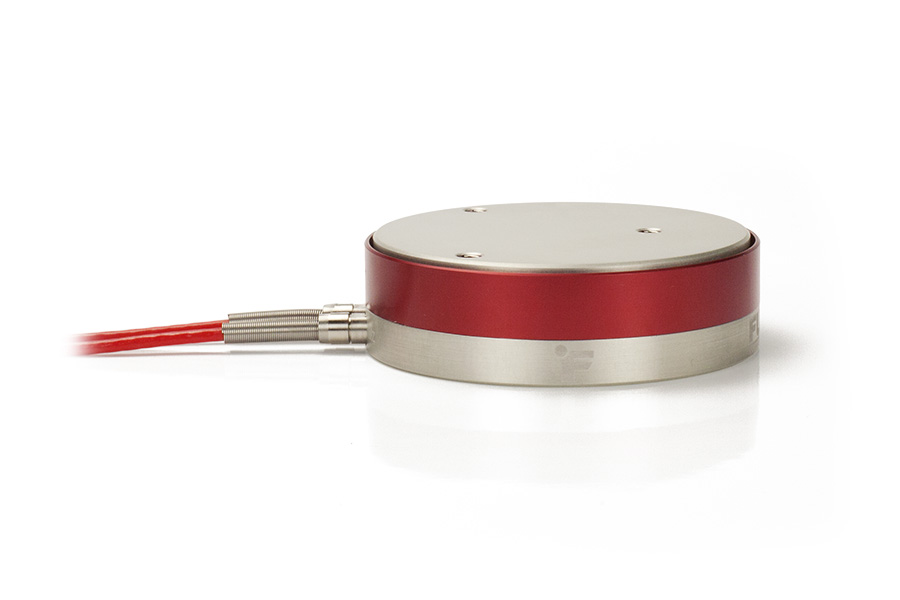

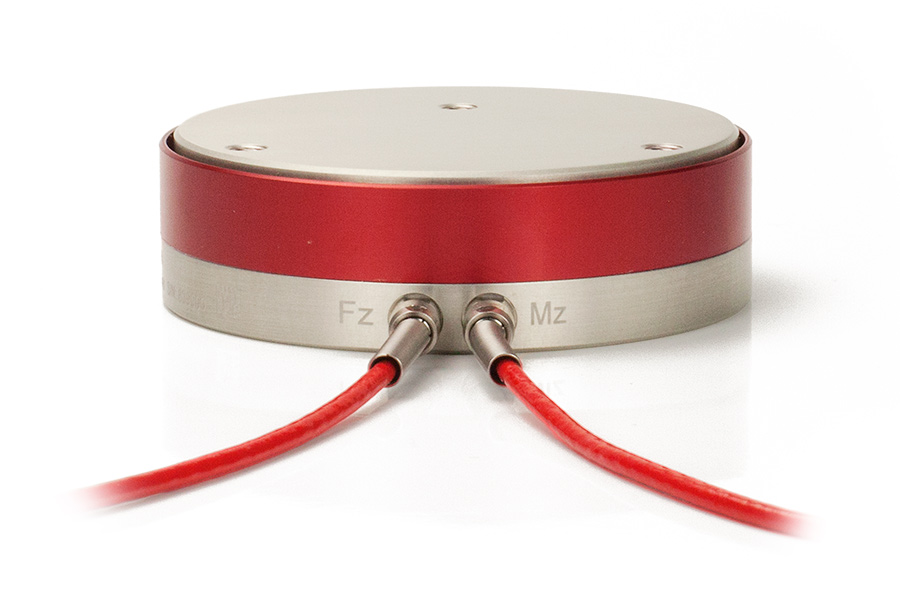

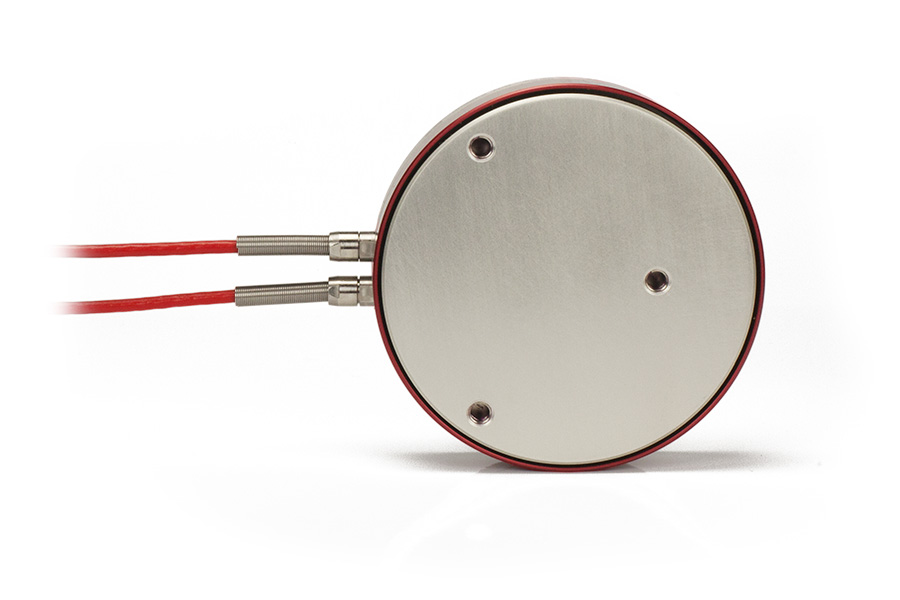

QMA148 , Ch Fz: 200 lb; Ch Mz: 200 in-lb , Custom Low Profile Torque & Thrust Sensor , 1" [25.4 mm] H x 3.4" [86.4 mm] OD , Material - 7075 , 2x 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Custom Low Profile Torque & Thrust Sensor

Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fz-1
5
Vdc
Mz-1
5
Vdc
Shunt Calibration
Fz-1
60.4
kOhm
Mz-1
60.4
kOhm
Excitation
Fz-1
1
10
Vdc
Mz-1
1
10
Vdc
Input Resistance
Fz-1
350
Ohms nom.
Mz-1
350
Ohms nom.
Insulation Resistance
Fz-1
500
Mohms @ 50 Vdc
Mz-1
500
Mohms @ 50 Vdc
Safe Overload
Fz-1
150
% of R.O.
Mz-1
150
% of R.O.
Capacity
Fz-1
200
lbs
Mz-1
200
in-lb
Hysteresis
Fz-1
-0.5
0.5
% of R.O.
Mz-1
-0.5
0.5
% of R.O.
Nonlinearity
Fz-1
-0.5
0.5
% of R.O.
Mz-1
-0.5
0.5
% of R.O.
Nonrepeatability
Fz-1
-0.25
0.25
% of R.O.
Mz-1
-0.25
0.25
% of R.O.
Output Resistance
Fz-1
350
Ohms nom.
Mz-1
350
Ohms nom.
Rated Output
Fz-1
1
mV/V nom.
Mz-1
2
mV/V nom.
Compensated Temperature
Fz-1
60
160
F
Mz-1
60
160
F
Operating Temperature
Fz-1
-60
200
F
Mz-1
-60
200
F
Temperature Shift Span
Fz-1
-0.01
0.01
% of Load/F
Mz-1
-0.01
0.01
% of Load/F
Temperature Shift Zero
Fz-1
-0.01
0.01
% of R.O./F
Mz-1
-0.01
0.01
% of R.O./F
