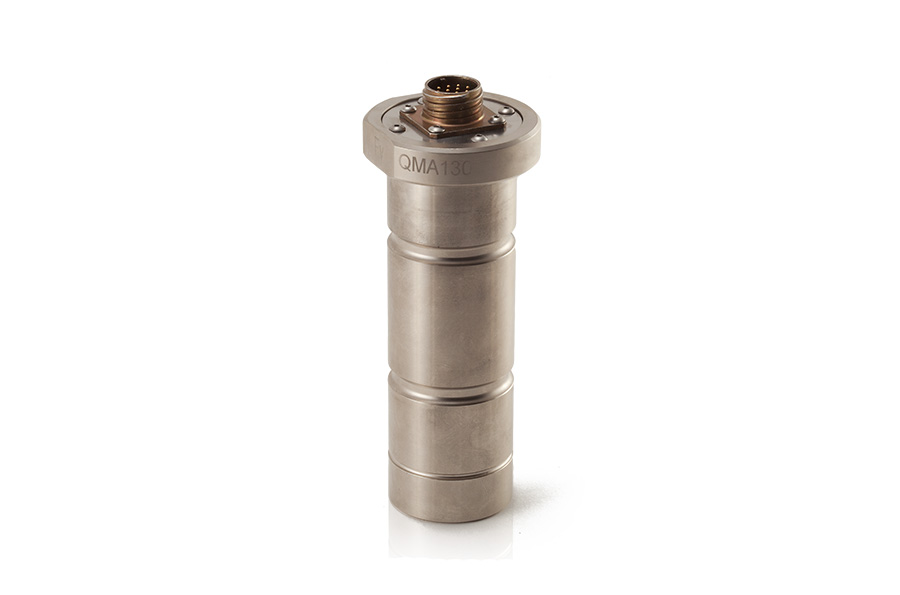

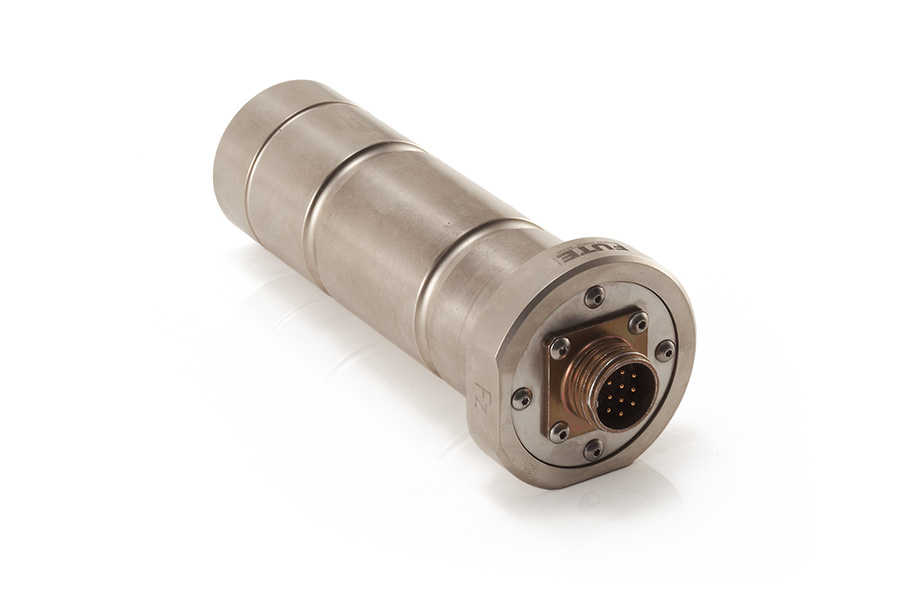

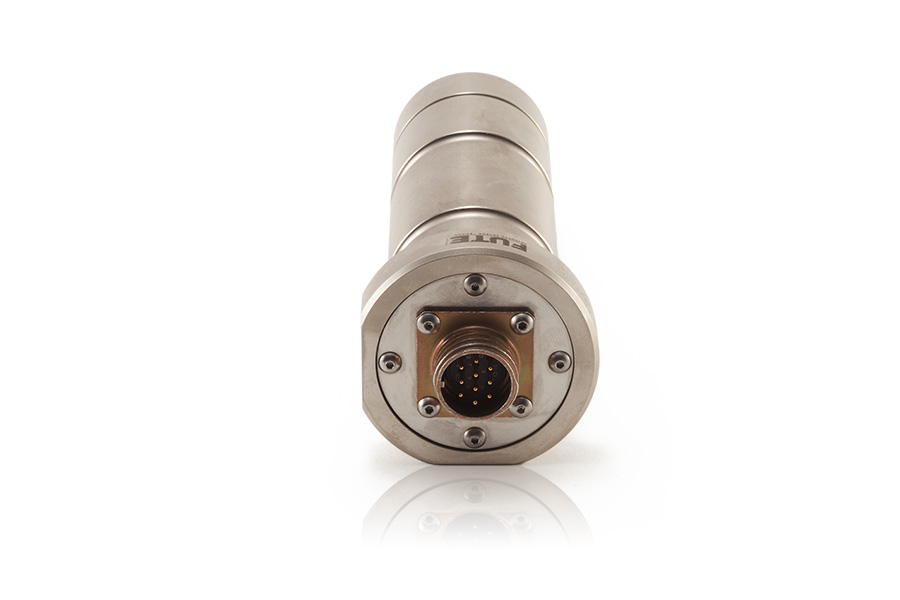

Custom 2 Axis Shear Pin Load Cell

QMA130 , Ch Fy: 81000 lb; Ch Fz: 32000 lb, Custom 2 Axis Shear Pin / Load Pin / Clevis Pin Load Cell , 1 5/8" Diameter Pin , 1.6234 in [41.23 mm] OD , Material: Steel , 10 Pin PC02E-12-10P Connector

Spec Sheet

Listed price is in U.S. currency and subject to verification along with availability

Description

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Interference

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	Fz-1		10		Vdc
	Fy-1		10		Vdc
Excitation	Fz-1	1		15	Vdc
	Fy-1	1		15	Vdc
Input Resistance	Fz-1		372		Ohms nom.
	Fy-1		372		Ohms nom.
Insulation Resistance	Fz-1	500			Mohms @ 50 Vdc
	Fy-1	500			Mohms @ 50 Vdc
Crosstalk	Fz-1	-4		4	% of R.O.
	Fy-1	-4		4	% of R.O.
Safe Overload	Fz-1			110	% of R.O.
	Fy-1			110	% of R.O.
Capacity	Fz-1			32000	lbs
	Fy-1			81000	lbs
Hysteresis	Fz-1	-2		2	% of R.O.
	Fy-1	-2		2	% of R.O.
Nonlinearity	Fz-1	-2		2	% of R.O.
	Fy-1	-2		2	% of R.O.
Nonrepeatability	Fz-1	-0.5		0.5	% of R.O.
	Fy-1	-0.5		0.5	% of R.O.
Output Resistance	Fz-1		350		Ohms nom.
	Fy-1		350		Ohms nom.
Rated Output	Fz-1		1		mV/V nom.
	Fy-1		3		mV/V nom.
Compensated Temperature	Fz-1	60		160	F
	Fy-1	60		160	F
Operating Temperature	Fz-1	60		200	F
	Fy-1	60		200	F
Temperature Shift Span	Fz-1	-0.02		0.02	% of Load/F
	Fy-1	-0.02		0.02	% of Load/F
Temperature Shift Zero	Fz-1	-0.01		0.01	% of R.O./F
	Fy-1	-0.01		0.01	% of R.O./F
Zero Balance	Fz-1	-3		3	% of R.O.
	Fy-1	-3		3	% of R.O.
