QMA114 play_arrowQSH01032

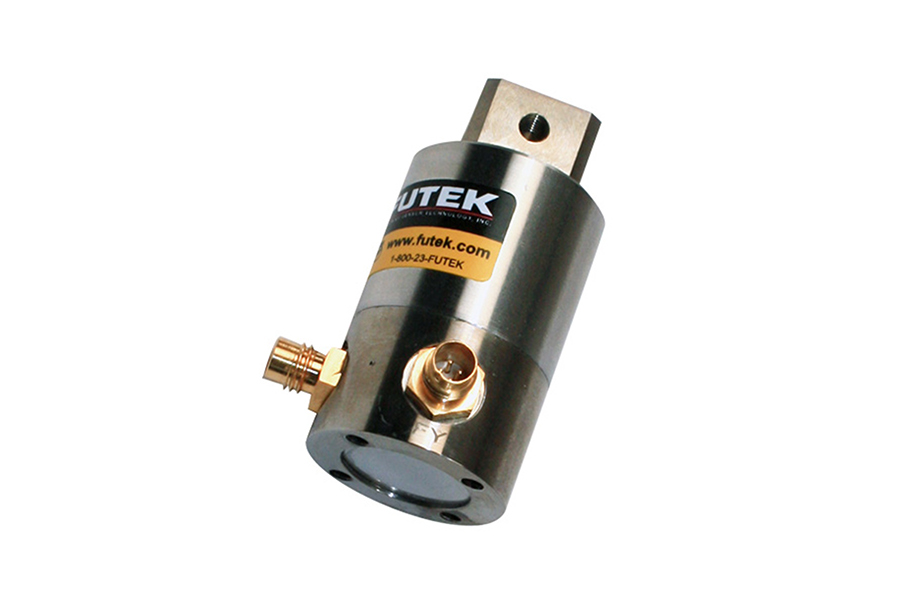

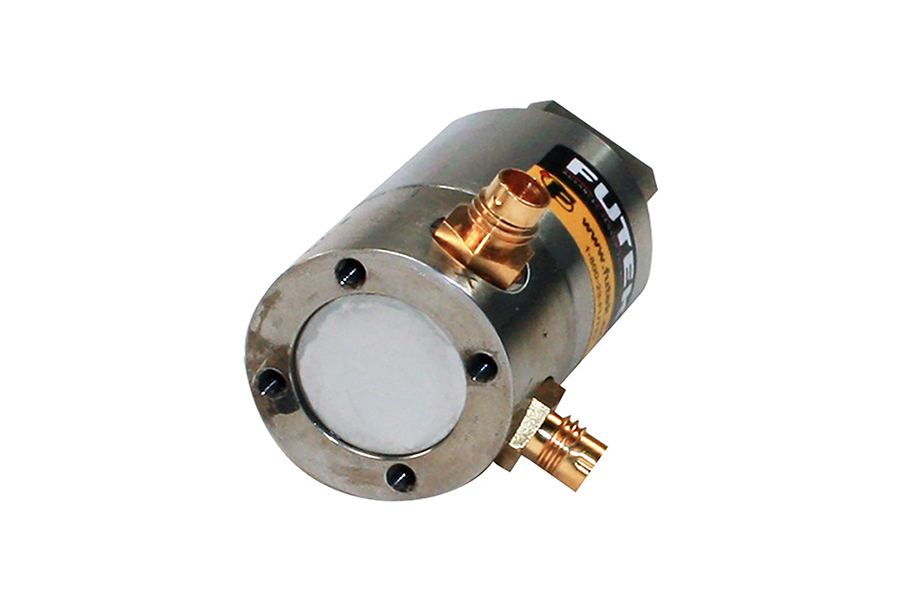

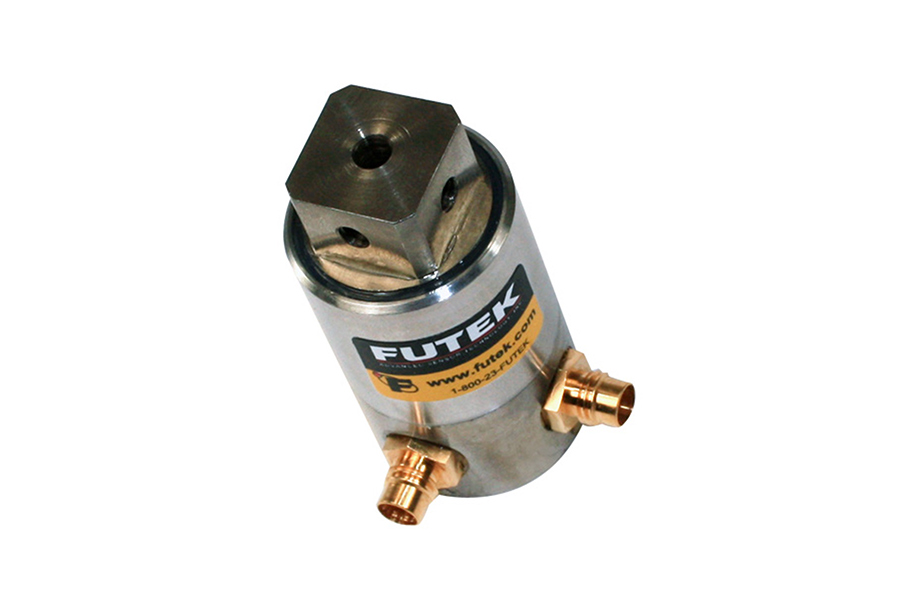

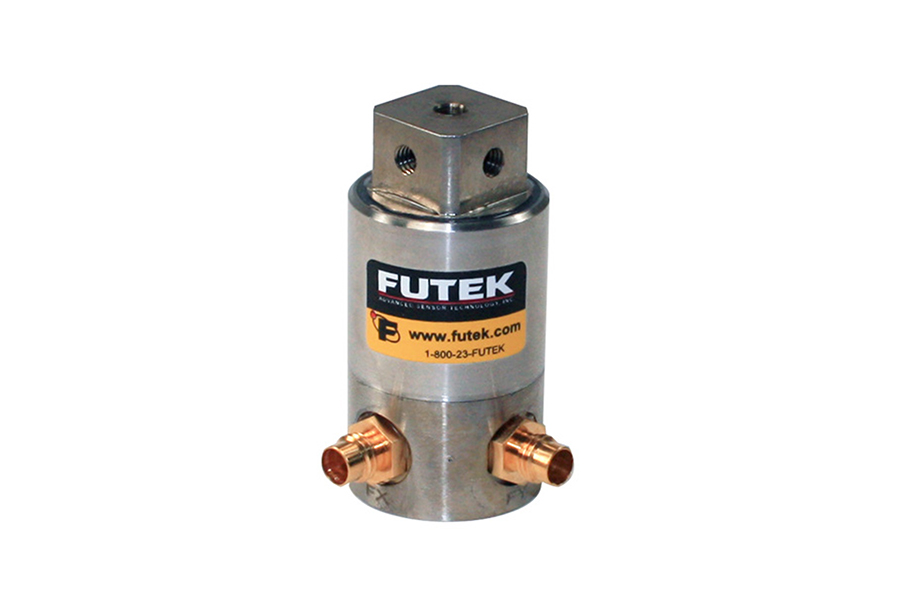

Custom Dual-Axis Load Cell

QMA114 , Ch Fx: 500 N;Ch Fy: 500 N; , Custom Dual-Axis Load Cell , Material - 17-4 PH S.S. , 4 Pin Microtech Receptacle DR-4S-4
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

QMA114 Custom Dual-Axis Load Cell

Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fx-1
10
Vdc
Fy-1
10
Vdc
Excitation
Fx-1
1
15
Vdc
Fy-1
1
15
Vdc
Input Resistance
Fx-1
350
Ohms nom.
Fy-1
350
Ohms nom.
Safe Overload
Fx-1
150
% of R.O.
Fy-1
150
% of R.O.
Capacity
Fx-1
500
N
Fy-1
500
N
Hysteresis
Fx-1
-0.25
0.25
% of R.O.
Fy-1
-0.25
0.25
% of R.O.
Nonlinearity
Fx-1
-0.25
0.25
% of R.O.
Fy-1
-0.25
0.25
% of R.O.
Nonrepeatability
Fx-1
-0.1
0.1
% of R.O.
Fy-1
-0.1
0.1
% of R.O.
Output Resistance
Fx-1
350
Ohms nom.
Fy-1
350
Ohms nom.
Rated Output
Fx-1
2
mV/V nom.
Fy-1
2
mV/V nom.
Compensated Temperature
Fx-1
60
160
F
Fy-1
60
160
F
Operating Temperature
Fx-1
32
185
F
Fy-1
32
185
F
Temperature Shift Span
Fx-1
-0.02
0.02
% of Load/F
Fy-1
-0.02
0.02
% of Load/F
Temperature Shift Zero
Fx-1
-0.01
0.01
% of R.O./F
Fy-1
-0.01
0.01
% of R.O./F
Zero Balance
Fx-1
-3
3
% of R.O.
Fy-1
-3
3
% of R.O.
