QMA141 play_arrowQSH01877

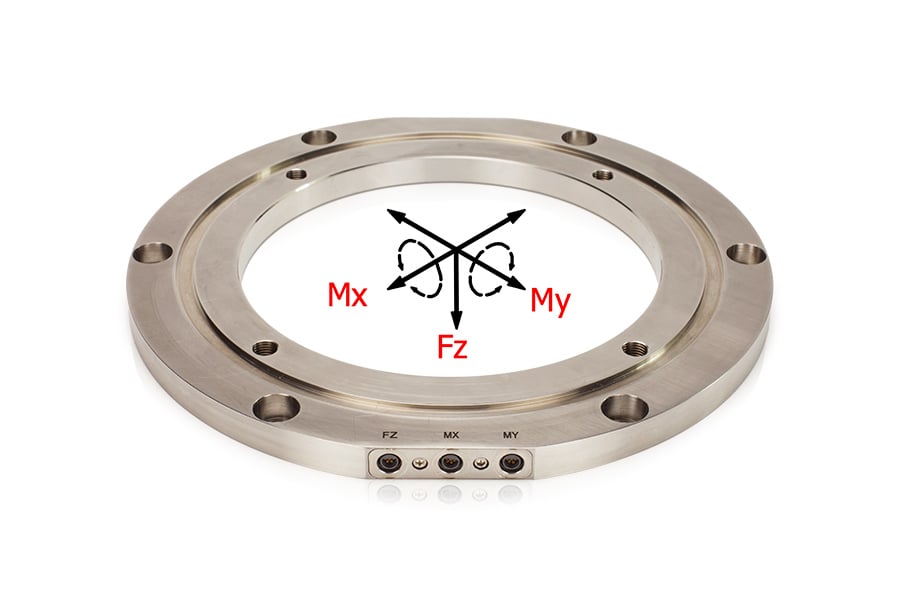

Custom High Temp Tri-Axial Force/Torque Load Cell

QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb, Custom High Temperature & Water Resistant Tri Axial Sensor, Material - 17-4 PH S.S., IP67 , Operating Temperature up to 350 F [177 C] & High Humidity , 3x Ultimate 4 Pin Receptacle
Spec Sheet Spec Sheet
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Custom High Temperature  and Water Resistant Tri-Axial Load Cell and Torque Sensor with Detachable Cables. Rated up to 350 F [177 C] for High Humidity Application that require a Large 6.2" [12.7 mm] ID Through Hole.

Features
  • Simultaneously measures inline forces and moments
  • Low Profile 0.5" [12.7 mm] Height
  • Water Resistant and Rated for High Humidity & Temperature
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fz-1
10
Vdc
Mx-1
10
Vdc
My-1
5
10
Vdc
Excitation
Fz-1
1
10
Vdc
Mx-1
1
10
Vdc
My-1
1
10
Vdc
Input Resistance
Fz-1
700
Ohms nom.
Mx-1
350
Ohms nom.
My-1
350
Ohms nom.
Safe Overload
Fz-1
300
% of R.O.
Mx-1
300
% of R.O.
My-1
300
% of R.O.
Capacity
Fz-1
6000
lbs
Mx-1
6000
in-lb
My-1
6000
in-lb
Nonlinearity
Fz-1
-1
1
% of R.O.
Mx-1
-2
2
% of R.O.
My-1
-2
2
% of R.O.
Output Resistance
Fz-1
700
Ohms nom.
Mx-1
350
Ohms nom.
My-1
350
Ohms nom.
Rated Output
Fz-1
1
mV/V nom.
Mx-1
0.5
mV/V nom.
My-1
0.5
mV/V nom.
Compensated Temperature
Fz-1
60
250
F
Mx-1
60
250
F
My-1
60
250
F
Operating Temperature
Fz-1
350
F
Mx-1
350
F
My-1
350
F
Temperature Shift Span
Fz-1
-0.02
0.02
% of Load/F
Mx-1
-0.02
0.02
% of Load/F
My-1
-0.02
0.02
% of Load/F
Temperature Shift Zero
Fz-1
-0.01
0.01
% of R.O./F
Mx-1
-0.01
0.01
% of R.O./F
My-1
-0.01
0.01
% of R.O./F
