QMA124 play_arrowQSH01331

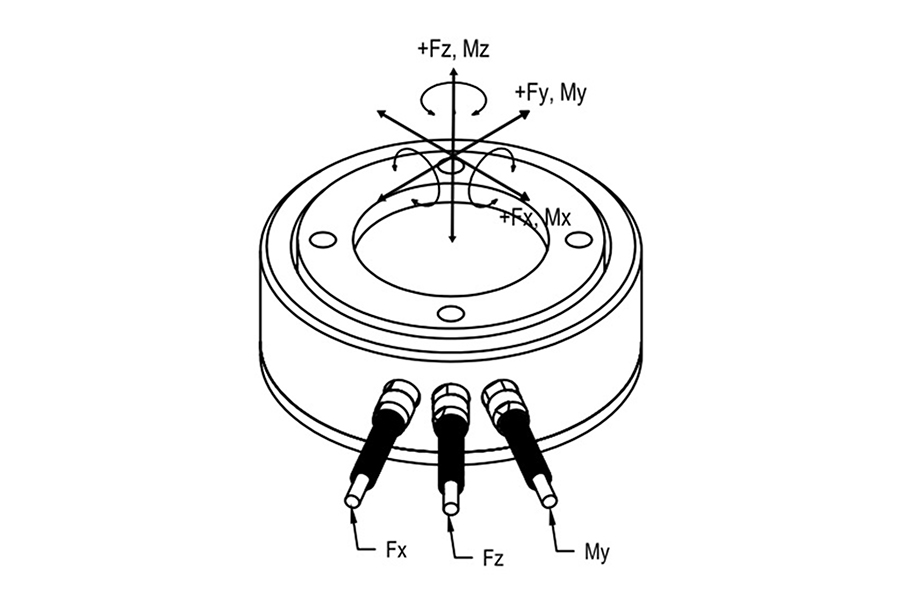

Custom Multi-Component Prosthetic/Robotic Knee Joint Sensor

QMA124 , Ch Fx: 60 lb; Ch Fz: 200 lb; Ch My: 200 in-lb , Custom Multi-Component Knee Joint Sensor , Material - Nickel Plated Allow Steel , 3x 28 Awg 4 Conductor Braided Shielded Clear PVC , 30 ft x3
Spec Sheet Spec Sheet
Listed price is in U.S. currency and subject to verification along with availability
Description

A Multi-Axis Sensor is a force-torque transducer that measures up to 6 different forces (Fx, Fy, Fz) and torque (Mx, My, Mz), in 3 spatial directions and converts it into an electrical output signal. Multi-Axis Sensors are also known as Multi-component transducers or force-torque sensors (6 axis force sensor, 6 axis load cell, 6 axis force/torque sensor). Custom Multi Component Sensor manufactured in the US by FUTEK utilizing Metal foil strain gauge technology.


Features
Technical Documents
Resources
How to reduce electrical noise in your system
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fx-1
10
Vdc
Fz-1
10
Vdc
My-1
10
Vdc
Excitation
Fx-1
1
20
Vdc
Fz-1
1
20
Vdc
My-1
1
20
Vdc
Input Resistance
Fx-1
350
Ohms nom.
Fz-1
700
Ohms nom.
My-1
350
Ohms nom.
Safe Overload
Fx-1
150
% of R.O.
Fz-1
150
% of R.O.
My-1
150
% of R.O.
Capacity
Fx-1
60
lbs
Fz-1
200
lbs
My-1
200
in-lb
Nonlinearity
Fx-1
-1
1
% of R.O.
Fz-1
-1
1
% of R.O.
My-1
-1
1
% of R.O.
Nonrepeatability
Fx-1
-0.25
0.25
% of R.O.
Fz-1
-0.25
0.25
% of R.O.
My-1
-0.25
0.25
% of R.O.
Output Resistance
Fx-1
350
Ohms nom.
Fz-1
700
Ohms nom.
My-1
350
Ohms nom.
Rated Output
Fx-1
0.5
mV/V nom.
Fz-1
0.5
mV/V nom.
My-1
0.5
mV/V nom.
Compensated Temperature
Fx-1
60
160
F
Fz-1
60
160
F
My-1
60
160
F
Operating Temperature
Fx-1
60
160
F
Fz-1
60
160
F
My-1
60
160
F
Temperature Shift Span
Fx-1
-0.02
0.02
% of Load/F
Fz-1
-0.02
0.02
% of Load/F
My-1
-0.02
0.02
% of Load/F
Temperature Shift Zero
Fx-1
-0.02
0.02
% of R.O./F
Fz-1
-0.02
0.02
% of R.O./F
My-1
-0.02
0.02
% of R.O./F
Zero Balance
Fx-1
-5
5
% of R.O.
Fz-1
-5
5
% of R.O.
My-1
-5
5
% of R.O.
