Custom Tri-Axial Load Cell

QMA129, Ch Fx: 1213 lb ; Ch Fy: 1213 lb ; Ch Fz: 1213 lb , Custom Tri-Axial Load Cell, Material - 2024-T4 , 3x 6 Pin Bendix Receptacle , PT02A-10-6P
Listed price is in U.S. currency and subject to verification along with availability
QMA129
QMA129
Description

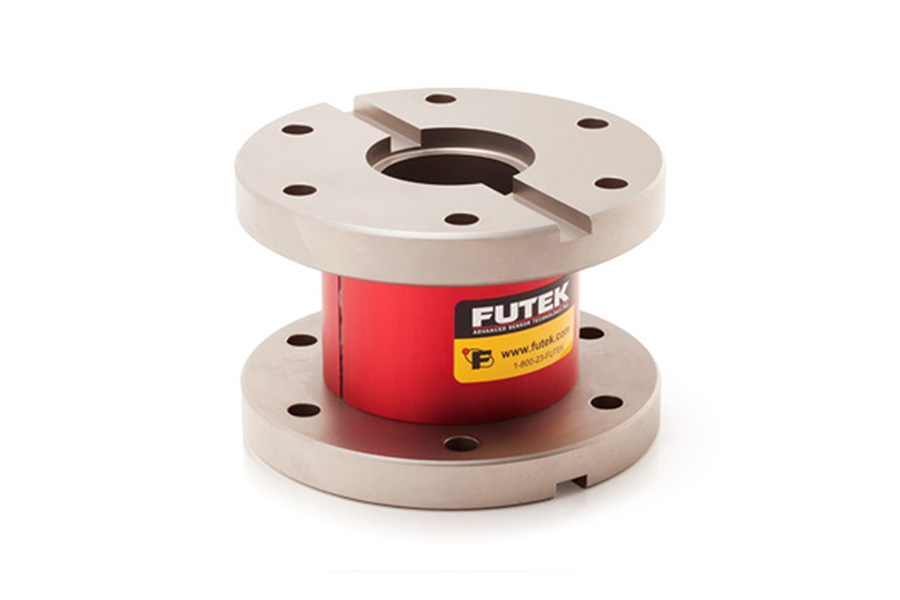

Custom Tri-Axial Fx, Fy, & Fz Load Cell with Thru Hole

Features
  • Measures forces in all 3-Axis
  • Tension & Compression & Shear Forces
  • 1.5 in [38.1 mm] Thru Hole
  • 3x Quick Disconnect Bendix Connectors
  • Large Flat Flange Loading and Support Surfaces
Specifications
Electrical
Mechanical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Input Resistance
Fx-1
350
Ohms nom.
Fy-1
350
Ohms nom.
Fz-1
700
Ohms nom.
Safe Overload
Fx-1
150
% of R.O.
Fy-1
150
% of R.O.
Fz-1
150
% of R.O.
Capacity
Fx-1
1213
lbs
Fy-1
1213
lbs
Fz-1
1213
lbs
Hysteresis
Fx-1
-0.5
0.5
% of R.O.
Excitation
Fy-1
-0.5
0.5
% of R.O.
Fz-1
-0.5
0.5
% of R.O.
Nonlinearity
Fx-1
-0.5
0.5
% of R.O.
Fy-1
-0.5
0.5
% of R.O.
Fz-1
-0.5
0.5
% of R.O.
Nonrepeatability
Fx-1
-0.2
0.2
% of R.O.
Fy-1
-0.2
0.2
% of R.O.
Fz-1
-0.2
0.2
% of R.O.
Output Resistance
Fx-1
350
Ohms nom.
Fy-1
350
Ohms nom.
Fz-1
700
Ohms nom.
Rated Output
Fx-1
2.5
mV/V nom.
Fy-1
2.5
mV/V nom.
Fz-1
1
mV/V nom.
Compensated Temperature
Fx-1
60
160
F
Fy-1
60
160
F
Fz-1
60
160
F
Temperature Shift Zero
Fx-1
-0.02
0.02
% of R.O./F
Fy-1
-0.02
0.02
% of R.O./F
Fz-1
-0.02
0.02
% of R.O./F
Zero Balance
Fx-1
-1
1
% of R.O.
Fy-1
-1
1
% of R.O.
Fz-1
-1
1
% of R.O.
Related Instruments
IAA100 , Full Bridge Strain Gauge Signal Conditioning Voltage Amplifier , +/-5 VDC , +/-10 VDC Output , 5 VDC Offset DIP Switch , Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA200 , Full Bridge Strain Gauge Signal Conditioning Current Transmitter , 4-20 mA Output , 12 mA Offset DIP Switch , Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA200 , Full Bridge Strain Gauge Signal Conditioning Current Transmitter , 0-20 mA Output, Up to 25 kHz Bandwidth , Detachable Screw Terminal Connectors , Metallic Enclosure , Integrated 35 mm DIN Clip
IAA300 , Ultra Low Noise Signal Conditioning Differential Strain Gauge Voltage Amplifier , For Full Bridge , +/-5 VDC , +/-10 VDC , Up to 50 kHz Bandwidth , Screw Terminal Connectors , Red Powder Coated , Integrated DIN Clip
IDA100 , High Speed & High Resolution Programmable Analog Amplifier w/ Greater Than 1 kHz Noise Rejection & Up To 4800 SPS USB Output , 0-10 VDC Analog Output , Powered By USB , Red Powder Coated Aluminum Enclosure, Integrated DIN Clip
IDA100 , High Speed & High Resolution Programmable Analog Amplifier w/ 60 Hz Bandwidth & Up To 4800 SPS USB Output , 0-10 VDC or +/-10 VDC Analog Output , Powered By USB , Red Powder Coated Aluminum Enclosure , Integrated DIN Clip
IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current , and Encoder Measurement , Analog Output , Alarm Relays , TEDS , and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT Software Included
IHH500 Pro , Intelligent Digital Handheld Display , mV/V , VDC , & mA Measurement , Analog Output , Alarm Relays , TEDS & USB Output , Only Power Supply Adapter is included
IPM650 Pro , Intelligent Panel Mount , mV/V , VDC , Current Measurement , Analog Output , Alarm Relays , TEDS and USB Output
IPM650 Pro , Intelligent Panel Meter , mV/V , VDC , Current Measurement , Analog Output , Alarm Relays , TEDS and USB Output , Power Button Disabled , Powers On When Plugged In
QIA124, Miniaturized & Digitally Configurable Ultra Low Noise Strain Gauge Amplifier , Voltage Amplifier , DB9 Male , +/- 10 VDC , 1000 Hz Bandwidth
USB220 , External USB Output Kit , 24 Bit Resolution , Up To 17.8 Bit Noise Free , Standard , For mV/V Inputs , Up to 4800 SPS , Red Powder Coated
Related Accessories
ZCC950 , 15 ft Long , 6 Pin Bendix PT06A-10-6S-SR to Cable Assembly , CC1 Code, Molded Strain Relief , Material - Polyurethane , 28 Awg 6 Conductors , Braided Shielded
ZCC950 , 100 ft Long , 6 Pin Bendix PT06A-10-6S-SR to Cable Assembly , CC1 Code, Molded Strain Relief , Material - Polyurethane , 28 Awg 6 Conductors , Braided Shielded
ZCC950 , 30 ft Long , 6 Pin Bendix PT06A-10-6S-SR to Cable Assembly , CC1 Code, Molded Strain Relief , Material - Polyurethane , 28 Awg 6 Conductors , Braided Shielded
ZCC950, 6 Pin Bendix PT06A-10-6S-SR (CC1) to Binder Male Plug 99 5129 00 12, Braided Shielded Polyurethane Cable, 15 ft Long, RoHS Compliant, Mates sensor to IHH500/USB520
ZCC950, 6 Pin Bendix PT06A-10-6S-SR (CC1) to 12 Pin Hirose (for USB215/USB220/USB320), Braided Shielded Polyurethane Cable, 15 ft Long, RoHS Compliant, Mates sensor to USB215/USB220
ZCC950, 6 Pin Bendix PT06A-10-6S-SR (CC1) to 4 Position Terminal Block (for IAA100/IAA200), Braided Shielded Polyurethane Cable, 15 ft Long, RoHS Compliant, Mates sensor to IAA100/IAA200
+
