Strain Gauge Analog Amplifier with Current Output
Amplify with
- Ease
- Precision
- Rigor
- Accuracy
- Exactitude
- Consistency
- Conviction
- Trust
- Assurance
- Fidelity
- Certitude
- Love
- Speed
- Reliability
- Confidence
- Selective Current Output Options: 4
- Non-linearity (% of FSR): 0.01%
- Selectable Gains Options: 256

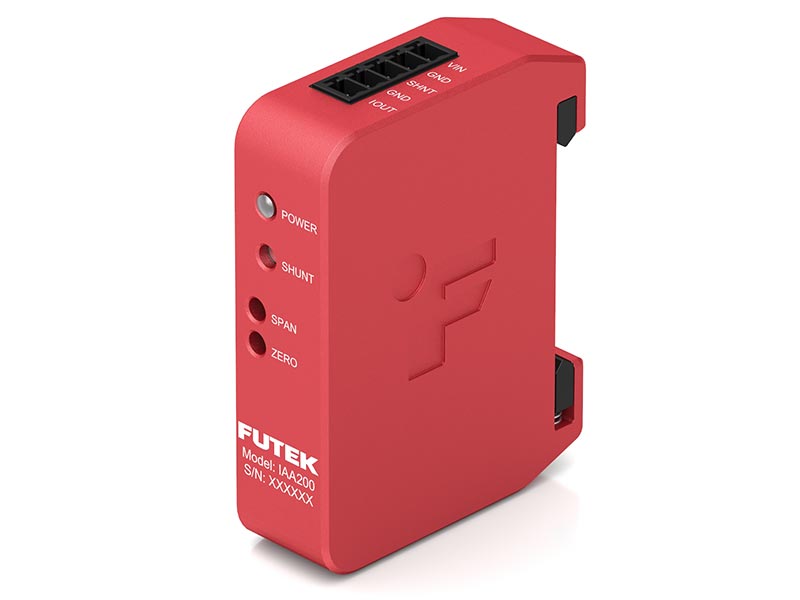

The IAA200 converts low-level mV/V inputs from full-bridge strain gauge sensors into a robust current output, enabling reliable signal transmission over long cable runs in electrically noisy industrial environments. Straightforward configuration and built-in verification features support quick deployment, consistency across setups, and dependable results from development through production.
Unmatched Compatibility
An industry-leading input range of ±0.2 mV/V to ±18 mV/V ensures seamless integration with a wide variety of bridge-based sensors, including load, torque, and pressure sensors. This broad input range makes the IAA200 well suited for both low-output miniature sensors and higher-output strain gauge transducers, simplifying integration across diverse applications.
Seamless Integration
Selectable current outputs of 4 to 20 mA, 0 to 20 mA, 5 to 25 mA, and 12 ± 8 mA ensure plug-and-play connectivity with any industrial PLC or DAQ. Integrated zero-offset adjustment and a polarity reversal switch allow alignment of signal direction and system baselines without rewiring.
Simplified Setup

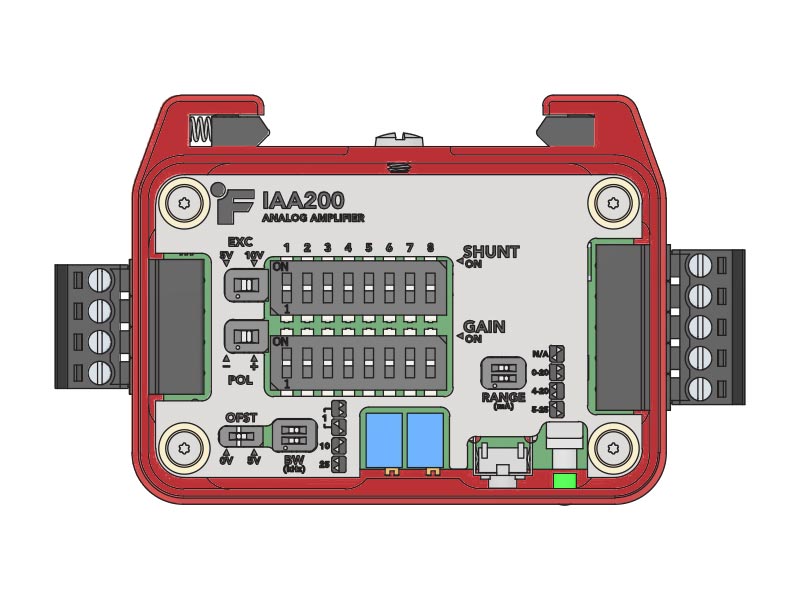

Discrete switches for gain, excitation, and bandwidth significantly reduce setup time and errors. Once base configuration is set, dedicated span and zero adjustments allow precise fine-tuning without resetting the hardware.
Wide Bandwidth
Selectable bandwidth settings of 1 kHz, 10 kHz, or 25 kHz, allow precise tuning of the amplifier response to match a given application. This ensures capture of the entire signal without filtering out real response.
Resilient Design for Minimum Downtime
Hot-swappable design allows for seamless sensor replacements and maintenance without powering down the system. Built-in ESD protection guards against handling errors, while over-voltage and over-current protections shield the device from electrical faults. These integrated safeguards enable quick reconfiguring of measurement chain, preventing damage and reducing troubleshooting time.
Unparalleled Precision

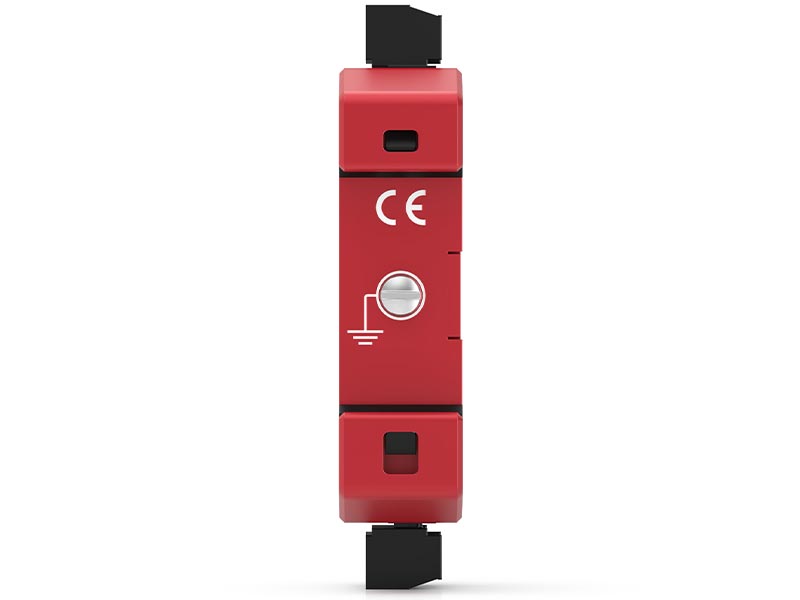

Low-noise performance with excellent linearity ensures accurate, repeatable results even when capturing small, rapid changes. An external chassis ground connection provides enhanced noise isolation, reducing interference in electrically noisy environments. This results in a clean, trustworthy analog signal optimized for analysis, automation, and control.
Built-In Calibration Checks
An externally (and remotely) accessible shunt allows instant validation that the sensor remains calibrated and fully functional. Features such as polarity reversal help streamline setup and support troubleshooting by allowing quick correction of signal direction without rewiring.
Industrial-Grade Build Quality

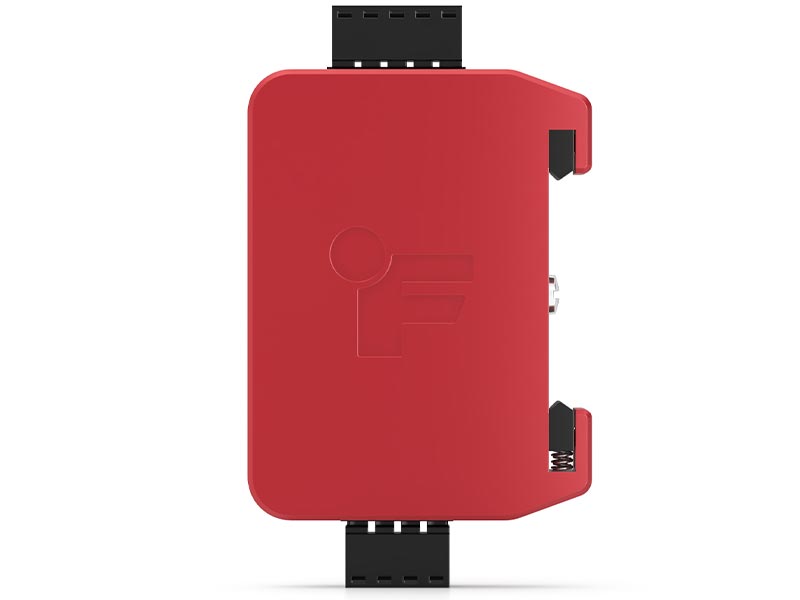

A robust metal housing, ensures long-term reliability in both high-stakes testing and everyday lab environments. Built to IPC-A-610 Class 3 standards, the IAA200 delivers consistent performance across demanding applications.

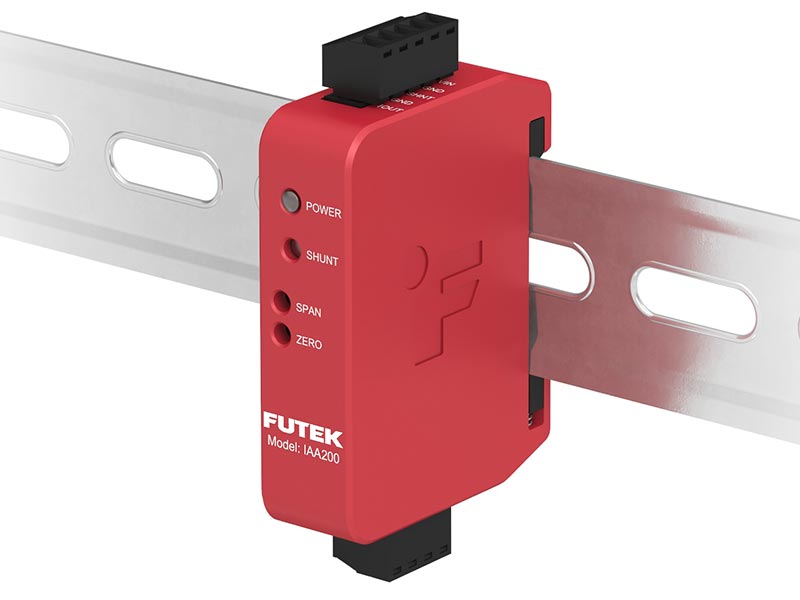

DIN Rail Clip
A custom spring-loaded 35 mm DIN rail clip ensures rapid attachment and easy removal, as well as a firm, vibration-resistant hold within control panels and cabinet setups.
