Strain Gauge Analog Amplifier with Voltage Output
Amplify with
- Ease
- Precision
- Rigor
- Accuracy
- Exactitude
- Consistency
- Conviction
- Trust
- Assurance
- Fidelity
- Certitude
- Love
- Speed
- Reliability
- Confidence
- Flexible Analog Output: ±5/±10 VDC
- Non-linearity (% of FSR): 0.01%
- Selectable Gains Options: 256

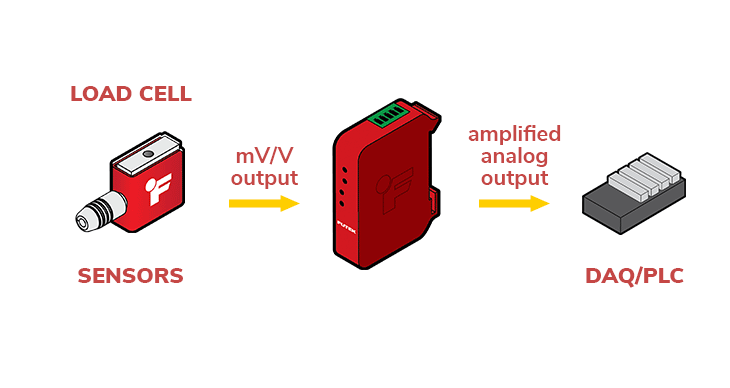

The IAA100 converts low-level mV/V signals from full-bridge strain gauge sensors into clean, stable voltages that integrate directly with common DAQs and PLCs. Straightforward configuration and built-in verification features support quick deployment, consistency across setups, and dependable results from development through production.
Unmatched Compatibility
An industry-leading input range of 0.2 mV/V to 18 mV/V ensures effortless integration with a variety of bridge-based sensors (load, torque, pressure etc.), making IAA100 ideal for low-output miniature sensors. This exceptional sensitivity allows accurate data capture in demanding applications while maintaining compatibility with virtually most Wheatstone bridge sensors on the market.
Seamless Integration
Standard ±5 V and ±10 V outputs ensure plug-and-play connectivity with most industrial PLC or DAQ. Integrated zero-offset adjustment and a polarity reversal switch allow alignment of signal direction and system baselines without rewiring.
Simplified Setup

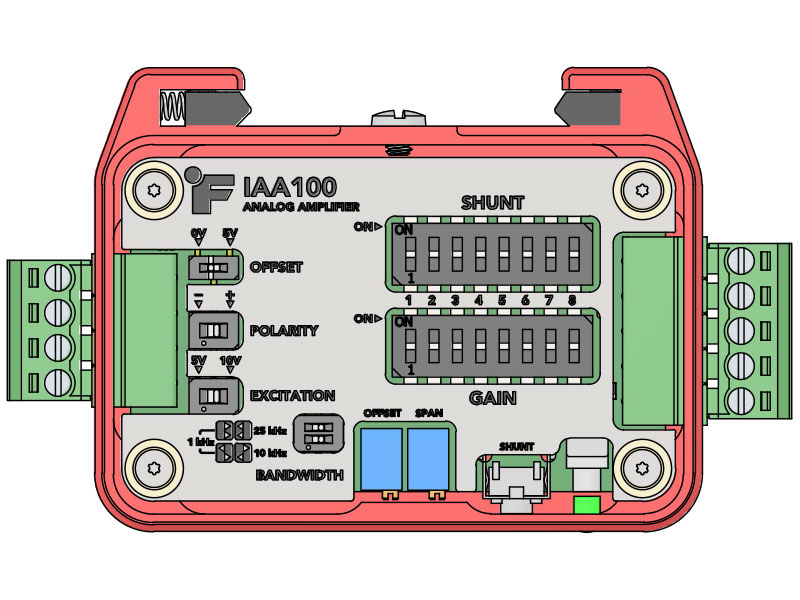

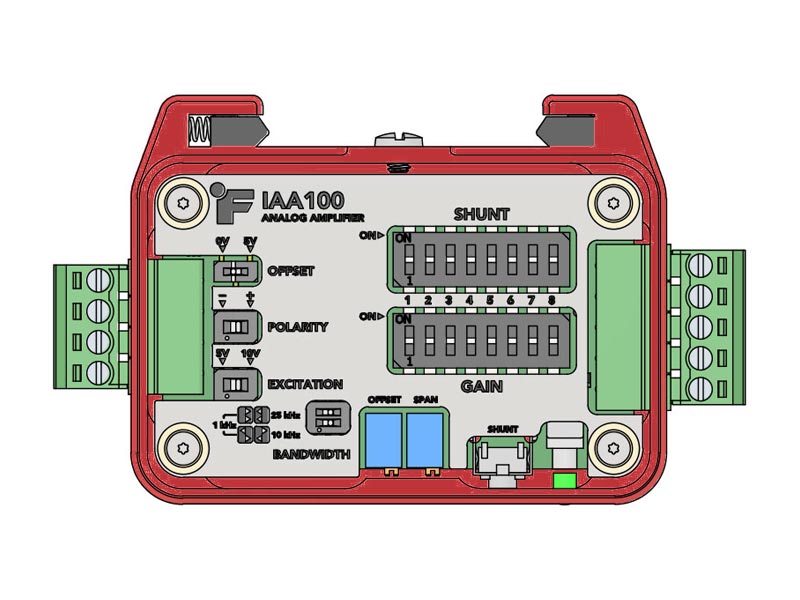

Discrete switches for gain, excitation, and bandwidth significantly reduce setup time and errors. Once base configuration is set, dedicated span and zero adjustments allow precise fine-tuning without resetting the hardware.
Wide Bandwidth
Selectable bandwidth settings of 1 kHz, 10 kHz, or 25 kHz, allow precise tuning of the amplifier response to match a given application. This ensures capture of the entire signal without filtering out real response.
Resilient Design for Minimum Downtime
Hot-swappable design allows for sensor replacements and maintenance without powering down the system. Built-in ESD protection guards against handling errors, while over-voltage and over-current protections shield the device from electrical faults. These integrated safeguards enable quick reconfiguring and validation of measurement chain, preventing damage and reducing troubleshooting time.
Unparalleled Precision

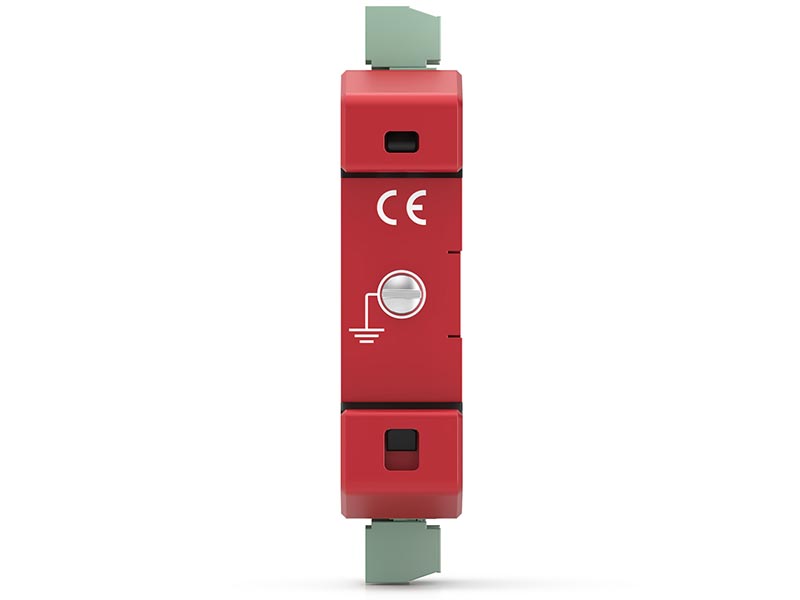

Low-noise performance with excellent linearity ensures accurate, repeatable results even when capturing small, rapid changes. An external chassis ground connection provides enhanced noise isolation, reducing interference in electrically noisy environments. This results in a clean, trustworthy analog signal optimized for analysis, automation, and control.
Built-In Calibration Checks
An externally accessible shunt allows instant validation that the sensor remains calibrated and fully functional. Polarity reversal streamlines setup and supports troubleshooting by allowing quick correction of signal direction without rewiring.
Industrial-Grade Build Quality
A robust metal housing, ensures long-term reliability in both high-stakes testing and everyday lab environments. Built to IPC-A-610 Class 3 standards, the IAA100 delivers consistent performance across demanding applications.

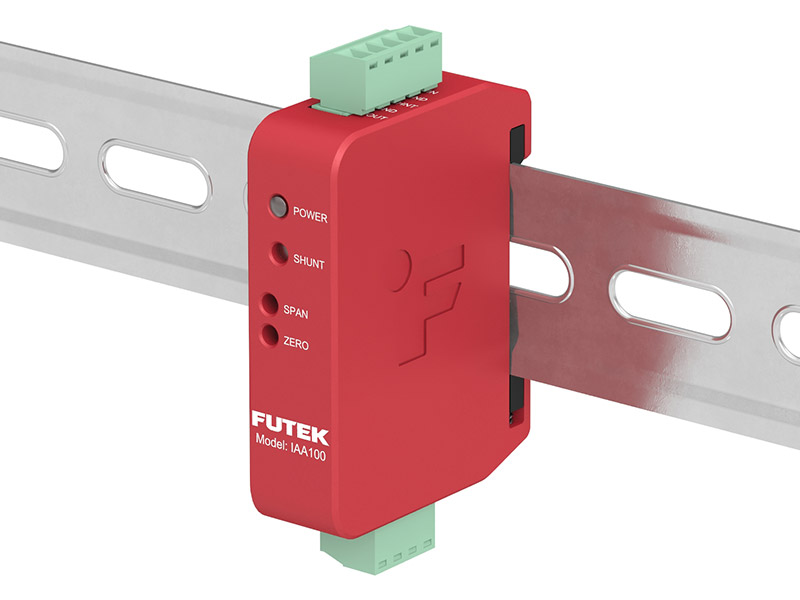

DIN Rail Clip
A custom spring-loaded 35 mm DIN rail clip, ensures both rapid, tool-free attachment and removal as well as a firm, vibration-resistant hold within any control panel or cabinet setup.
