IHH500 play_arrowFSH03460

Digital Hand Held Display

IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current , and Encoder Measurement , Analog Output , Alarm Relays , TEDS , and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT® Software Included
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

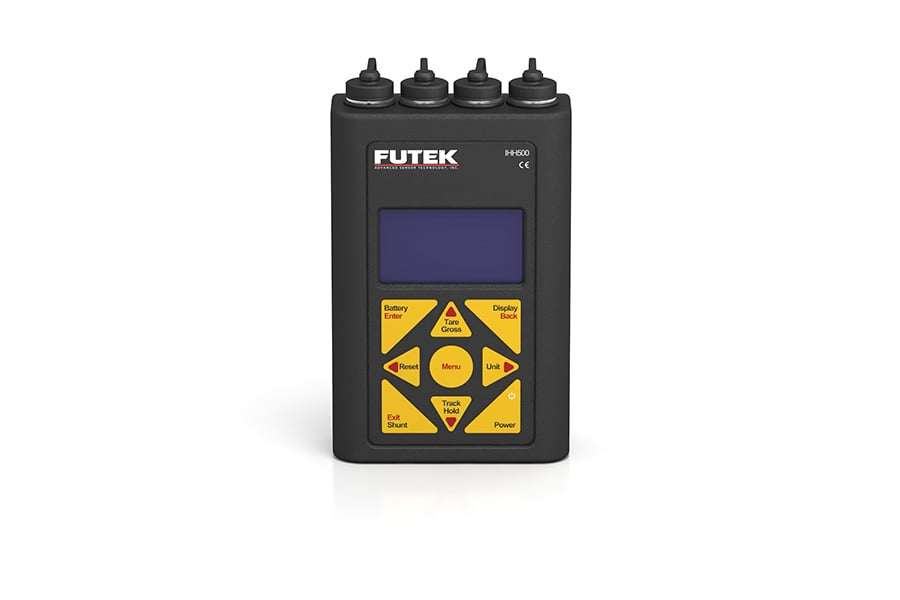

The IHH500 Hand Held Portable Digital Display is FUTEK’s solution that can be easily integrated to work with Load Cells, Torque Sensors and Pressure Sensors. The IHH500 has an input range of up to +/-500 mV/V. Beside the mV/V input, device accepts amplified output sensors in range of ± 12 VDC or up to 30 mA. It also has two individual relays and two analog voltage and analog current outputs. This device provides additional 24 VDC / 5VDC as the power supply for sensors with built-in amplifier. FUTEK’s Hand Held display also supports TEDS which makes it easy to switch between different sensors. A high speed/ low noise/ high resolution (24 bits) ADC is integrated into the device to make it suitable for high accuracy measurements. The IHH500 uses rechargeable battery with a long life time. The IHH500 also has the capability of displaying values onto a computer through a USB link.

For more information about support documents, please click here.

Features
  • Speed/Angle/Power Measurement (Elite Model Only)
  • Bridge Resistance Measurement
  • Keypad Options (Track/Hold, Peak/Valley Reset, Unit, Tare/ Gross, Shunt, Battery, Display, Menu)
  • First Peak/First Valley Feature
  • User Friendly Navigation Menu
  • Shunt Calibration
  • Universal Unit Conversion
  • Supports IEEE1451.4 Standard (TEDS Templates 30 & 33)
  • Leading and Lagging TTL input (Elite Model Only)
  • USB Output
  • ASCII Stream Output
  • Selectable Voltage and Current Configuration
Videos
video
Handheld display | Digital Load Cell Indicator | Product Demo (IHH500)
video
IHH500 and USB520 Binder Cable Assembly
video
IHH500 Profile Setup Guide
video
Torque Sensor and Handheld Display Demo
Specifications
Electrical
Error
Interference
Mechanical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bridge Resistance
1
30
Ohms nom.
Excitation
1
5
Vdc
Input Range
1
-500
500
mV/V nom.
1
-12
12
Vdc
1
30
mA
Input Voltage
1
100
240
Vac
Error
1
-0.15
0.15
% of Load
2
-0.06
0.06
% of Load
Communication Interface
1
USB
Weight
1
1.9
lbs
Analog Output
1
5
Vdc
1
-5
5
Vdc
1
20
mA
1
4
20
mA
1
25
mA
1
5
25
mA
Capacity
1
2
mV/V nom.
2
10
Vdc
3
4
20
mA
Display Resolution
1
3
7
Digits
Nonlinearity
1
-0.01
0.01
% of R.O.
Rated Output
1
1.995
2.005
mV/V nom.
2
10
Vdc
3
4
20
mA
Power Supply
1
12
Vdc
Sample Rate
1
5
4800
Samples / Sec
Operating Temperature
1
-4
158
F
Storage Temperature
1
-22
176
F
