IHH500 play_arrowFSH03571

Digital Hand Held Display

IHH500 Pro , Intelligent Digital Handheld Display , mV/V , VDC , & mA Measurement , Analog Output , Alarm Relays , TEDS & USB Output , Only Power Supply Adapter is included
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

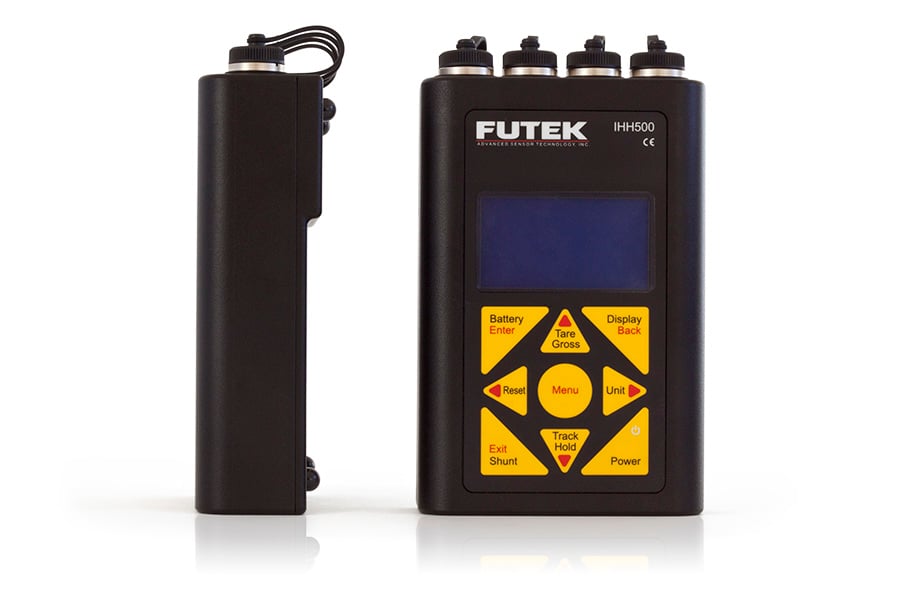

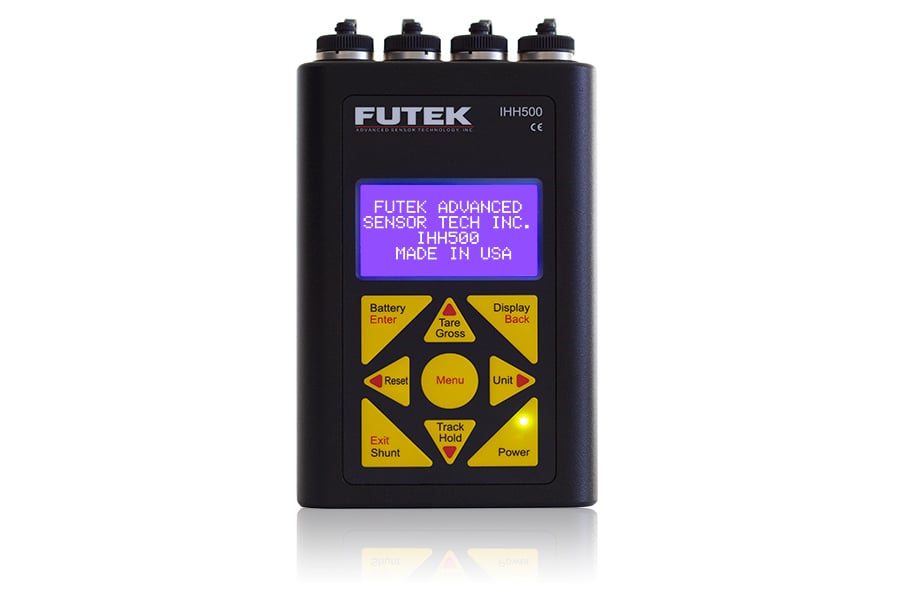

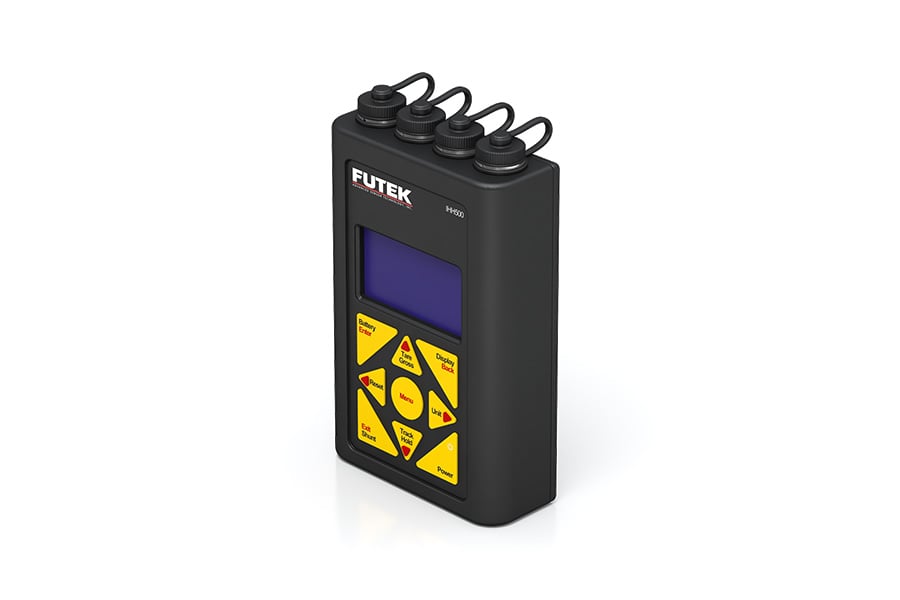

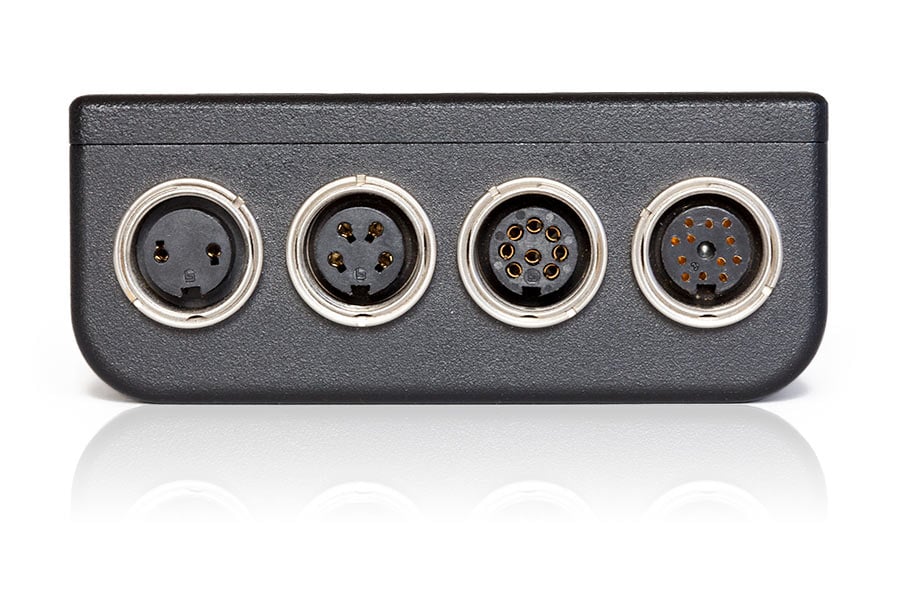

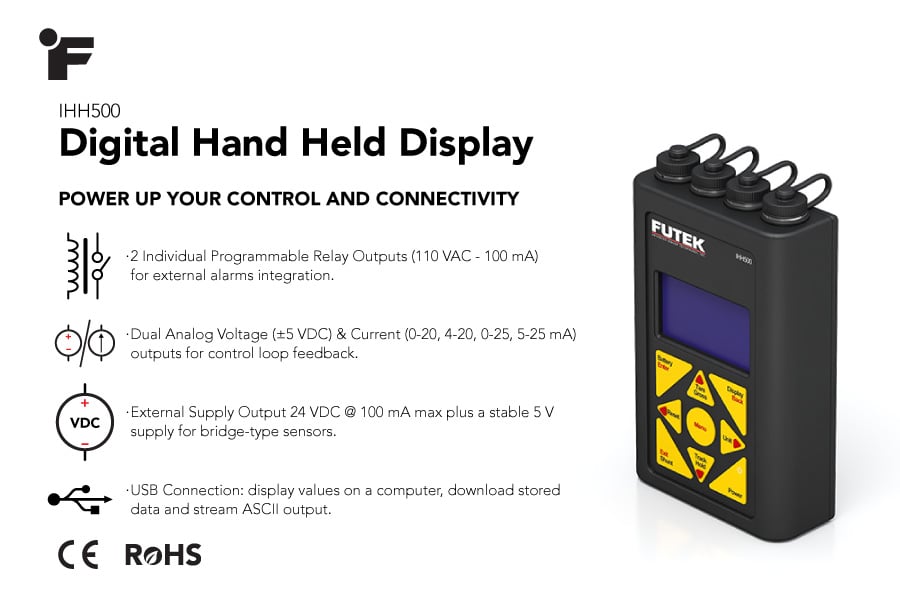

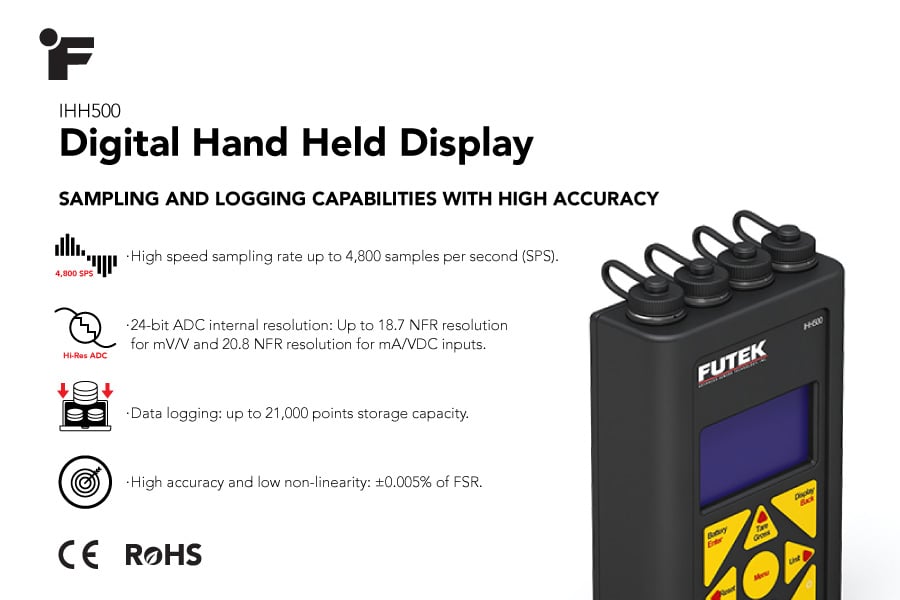

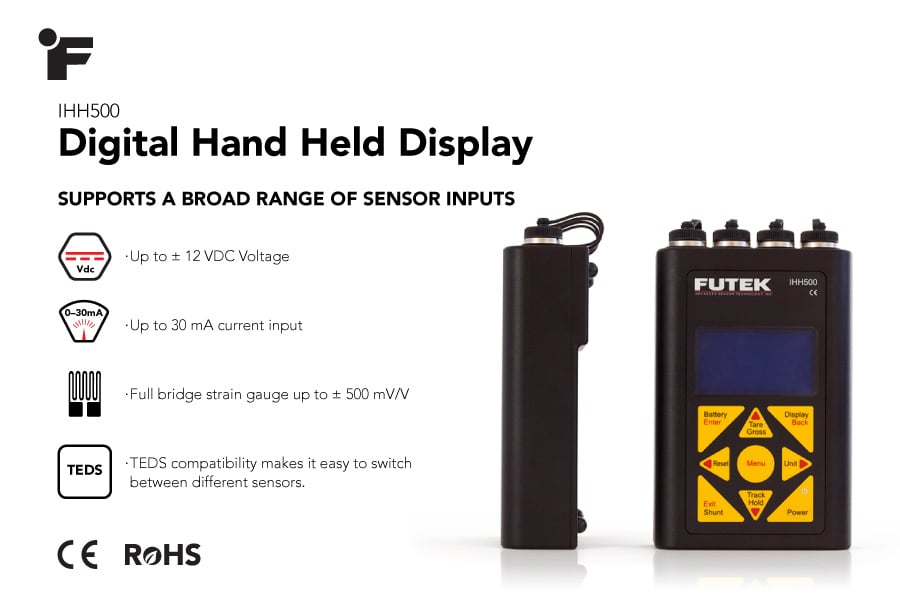

The IHH500 Hand Held Portable Digital Display is FUTEK’s solution that can be easily integrated to work with Load Cells, Torque Sensors and Pressure Sensors. The IHH500 has an input range of up to +/-500 mV/V. Beside the mV/V input, device accepts amplified output sensors in range of ± 12 VDC or up to 30 mA. It also has two individual relays and two analog voltage and analog current outputs. This device provides additional 24 VDC / 5VDC as the power supply for sensors with built-in amplifier. FUTEK’s Hand Held display also supports TEDS which makes it easy to switch between different sensors. A high speed/ low noise/ high resolution (24 bits) ADC is integrated into the device to make it suitable for high accuracy measurements. The IHH500 load cell readout uses rechargeable battery with a long life time. The IHH500 load cell display unit also has the capability of displaying values onto a computer through a USB link.


Load cell readouts are necessary where the load or force measurement application requires that the load to be displayed locally in the field or laboratory as well as displaying the results on a PC, DAQ or PLC (i.e. compression load cell with digital readout) .In those cases, one can use FUTEK IHH500 Digital Load Cell Readout. Each load cell display can be used to connect up to 14 sensors profile.

Digital Load Cell Readouts (strain gauge indicators or weight meters) go beyond than indicate you the force measurement value, they also power the full bridge load cell circuit and reads their output mV/V signal (i.e. compression load cell with display). The more advanced they digital load cell readouts are, the more capabilities they have to condition the signal and communicate with peripheral devices, such as a computer, PLC, DAQ, or remote display unit. IHH500 is the ideal solution if your application requires a compression load cell with display, for example.

For more information about support documents, please click here.

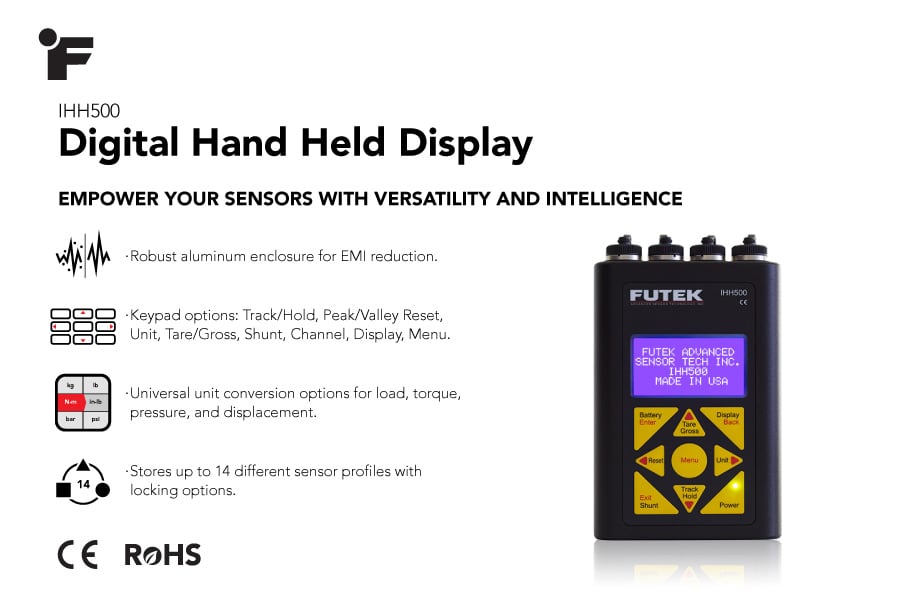

Features
  • Bridge Resistance Measurement
  • Keypad Options (Track/Hold, Peak/Valley Reset, Unit, Tare/ Gross, Shunt, Battery, Display, Menu)
  • First Peak/First Valley Feature
  • User Friendly Navigation Menu
  • Shunt Calibration
  • Universal Unit Conversion
  • Supports IEEE1451.4 Standard (TEDS Templates 30 & 33)
  • Leading and Lagging TTL input (Elite Model Only)
  • USB Output
  • ASCII Stream Output
  • Selectable Voltage and Current Configuration
Videos
video
Handheld display | Digital Load Cell Indicator | Product Demo (IHH500)
video
IHH500 and USB520 Binder Cable Assembly
video
IHH500 Profile Setup Guide
video
Torque Sensor and Handheld Display Demo
Specifications
Electrical
Error
Interference
Mechanical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bridge Resistance
1
30
Ohms nom.
Excitation
1
5
Vdc
Input Range
1
-500
500
mV/V nom.
1
-12
12
Vdc
1
30
mA
Input Voltage
1
100
240
Vac
Error
1
-0.15
0.15
% of Load
2
-0.06
0.06
% of Load
Communication Interface
1
USB
Weight
1
1.9
lbs
Analog Output
1
5
Vdc
1
-5
5
Vdc
1
20
mA
1
4
20
mA
1
25
mA
1
5
25
mA
Capacity
1
2
mV/V nom.
2
10
Vdc
3
4
20
mA
Display Resolution
1
3
7
Digits
Nonlinearity
1
-0.01
0.01
% of R.O.
Rated Output
1
1.995
2.005
mV/V nom.
2
10
Vdc
3
4
20
mA
Power Supply
1
12
Vdc
Sample Rate
1
5
4800
Samples / Sec
Operating Temperature
1
-4
158
F
Storage Temperature
1
-22
176
F
Related Accessories
APA200 , Power Supply Kit for IHH500 , Interchangeable Plugs , 100-240 VAC Input / 12 VDC Output Power Supply , 18 W , 5 ft Long
SENSIT® Test and Measurement Software Version 2.12. 1 Year Time-Limited License. Compatible with Windows 10 and Windows 11. For use with IDA100, IHH500, IPM650, USBXXX, QIA123, and QIA128. One License Required Per Seat.
SENSIT® Calibration Software Version 2.12. 1 Year Time-Limited License. Compatible with Windows 10 and Windows 11. For use with IDA100, IHH500, IPM650, USBXXX, QIA123, and QIA128. One License Required Per Seat.
IHH500/IPM650 Analog Output/Alarm/Relays Connector Cable, RoHS Compliant, 5 ft Long
Binder Male Plug USB Cable Assembly. For Use With IHH500, USB520 & USB530 , 2 m Long
Binder Male Plug With Cable Clamp , 99 5129 00 12 , 4-6mm Cable Outlet , Solder , Shielded , 12 Contacts , Gold Contact Plating , IP67 , M16 Locking. For Use with IHH500, ZCC994, & USB520
Z Clam Shell Mount/Stand w/ T-Knobs & Mounting Screws , For Use w/ IHH500
IHH500 Accessory Kit , Pelican Case , Software (FSH04877) , USB Cable , Support Bracket , Analog/Alarm Mating Connector , Sensor Mating Connector
ZCC200 System Cable Assembly , 15 ft [4.6 m] Long , 4 Pin Micro Mating Connector (CC19) , Mates IHH500 w/ TEDS (IEEE1451.4) , w/ Binder Male Plug 99 5129 00 12 , Braided Shielded PVC Cable , RoHS Compliant
ZCC200 System Cable Assembly , 15 ft [4.6 m] Long , 4 Pin Micro Mating Connector (CC19) , Mates IHH500/USB520 , w/ Binder Male Plug 99 5129 00 12 , Braided Shielded PVC Cable , RoHS Compliant
ZCC211 , System Cable Assembly , 5 ft Long , 11 Pin Nano Mating Connector (CC20) , Mates IHH500/USB520 , w/ Binder Male Plug 99 5129 00 12 , Braided Shielded PVC Cable , RoHS Compliant
ZCC910 , 10 ft Long , Mates TRD300, TRS300, TRH300 to IHH500/USB520 , 6 Pin Binder 99-2022-09-06 (CC11) to Binder Male Plug 99 5129 00 12 , Braided Shielded Polyurethane Cable , RoHS Compliant
Applications
Alternative Models
FSH03460

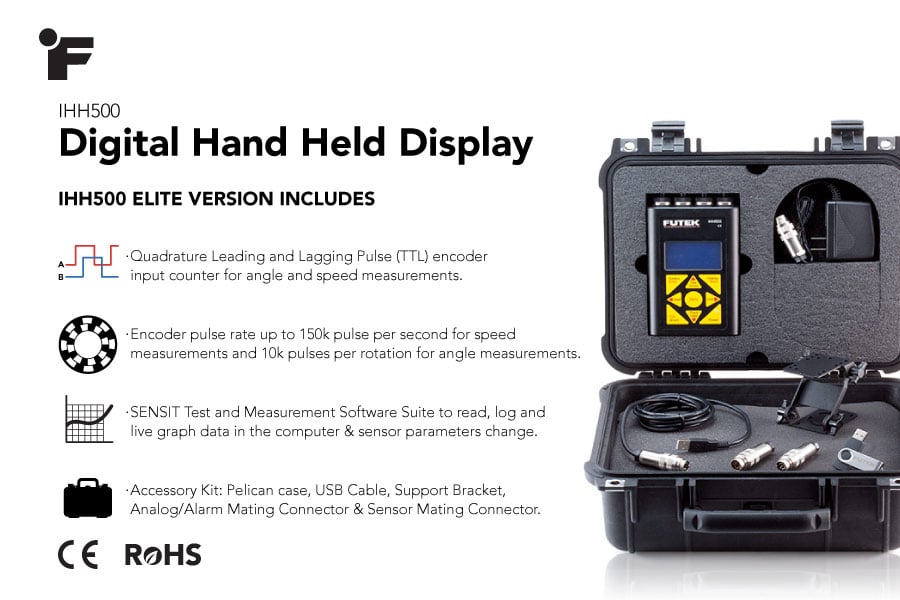

IHH500 Elite , Intelligent Digital Handheld Display , mV/V , VDC , Current , and Encoder Measurement , Analog Output , Alarm Relays , TEDS , and USB Output - Accessory Kit (FSH03583) With All Mating Connectors and SENSIT® Software Included
