IAC200 play_arrowFSH02126

4 Channel Summing Junction Box

IAC200 , Non-Amplified Junction Box , 1-4 Channel , Nema 4 Rating , Material - Polyurethane , Standard
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability

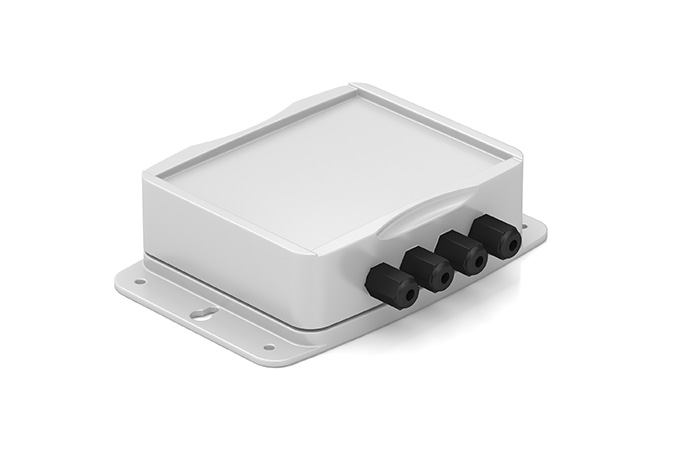

4 channel junction box IAC200
4 channel junction box IAC200
IAC200
IAC200
Description

FUTEK's IAC200 2–4 Channel Summing Junction Box is FUTEK’s solution for utilizing one display with multiple sensor where the output resultant or summing is required. The IAC200 features dip switch selectable channels (2 to 4), a UV Stable 94V-2 Polycarbonate Enclosure, and weighs only 14.7 oz.  The 4 channel junction box is also available with built-in amplifier for VDC or 4-20 mA output.

Features
  • Excitation – mV/V Version: Refer to sensor infosheet for max excitation, system not to exceed 24 VDC – VDC, mA Version: 14-26VDC
  • Dip Switch Selectable Channels (2-4)
  • Individual Span Adjustment For All 4 Channels 350 Ohm bridge - 13% 700 Ohm bridge - 24% 1000 Ohm bridge - 31%
  • Easy Access Screw Terminal Blocks
  • Cable Strain Relief To Support Cables From Ø 0.08 in [Ø 2.0 mm] to Ø 0.25 in [Ø 6.35 mm]
  • Dual Mounting Holes
  • IP65/NEMA 4X Rated Housing UV Stable 94V-2 Polycarbonate Material
Specifications
Electrical
Error
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bridge Resistance
350
1000
Span Adjustment
31
% of R.O.
Power Supply
14
26
Operating Temperature
32
158
Storage Temperature
-40
185
Related Accessories
#28 Awg , 10 ft Cable , 6 Cond. Braided Shielded Polyurethane
#28 Awg , 20 ft Cable , 6 Cond. Braided Shielded Polyurethane
#28 Awg , 50 ft Cable , 6 Cond. Braided Shielded Polyurethane
#28 Awg , 100 ft Cable , 6 Cond. Braided Shielded Polyurethane
Alternative Models
FSH01927
IAC200 , Amplified Junction Box , 1-4 Channel , Nema 4 Rating , Material - Polyurethane , Analog Output , +/-5 VDC , +/-10 VDC , 0-20 mA , 4-20 mA , 0-16 mA , 5-25 mA
