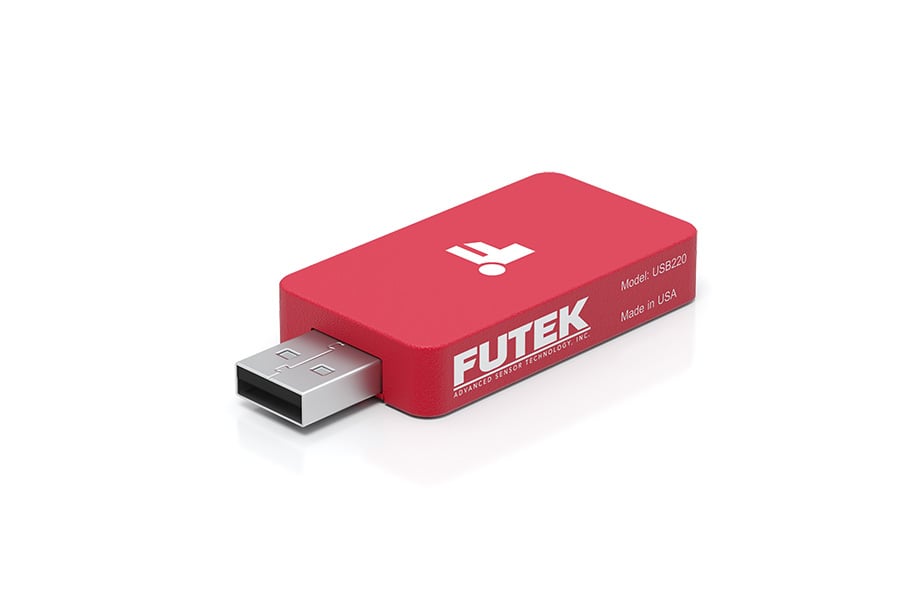

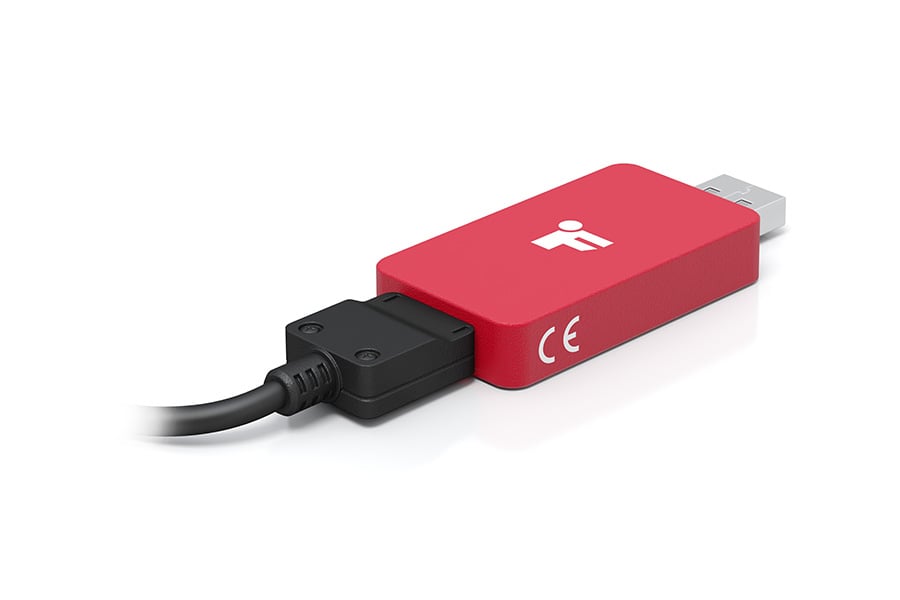

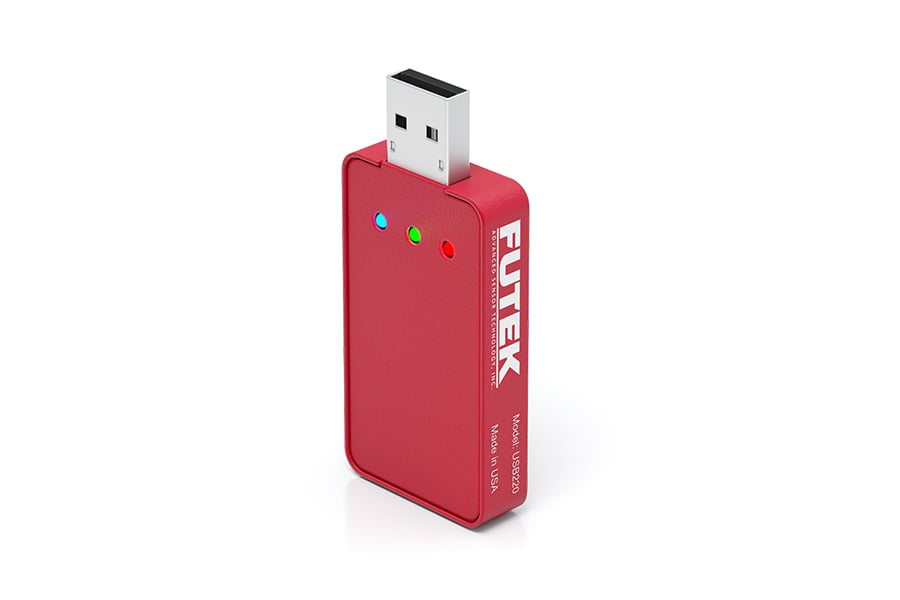

USB220 play_arrowFSH03927

High Resolution USB Solution

USB220 , External USB Output Kit , 24 Bit Resolution , Up To 17.8 Bit Noise Free , Standard , For mV/V Inputs , Up to 4800 SPS , Red Powder Coated
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Listed price is in U.S. currency and subject to verification along with availability
Description

The new USB220 High Resolution USB Load Cell Digital Amplifier eliminates the need for an analog amplifier, power supply, and display equipment. The module is supplied by PC power through a USB Cable, providing excitation voltage for the sensor, rendering a high resolution load cell. The analog output voltage of the sensor is then digitized and processed by a microprocessor using the integrated high resolution (24 bits) analog to digital converter (ADC). The on-board USB transmitter and receiver device allow the microprocessor to communicate with the PC by means of the USB link.

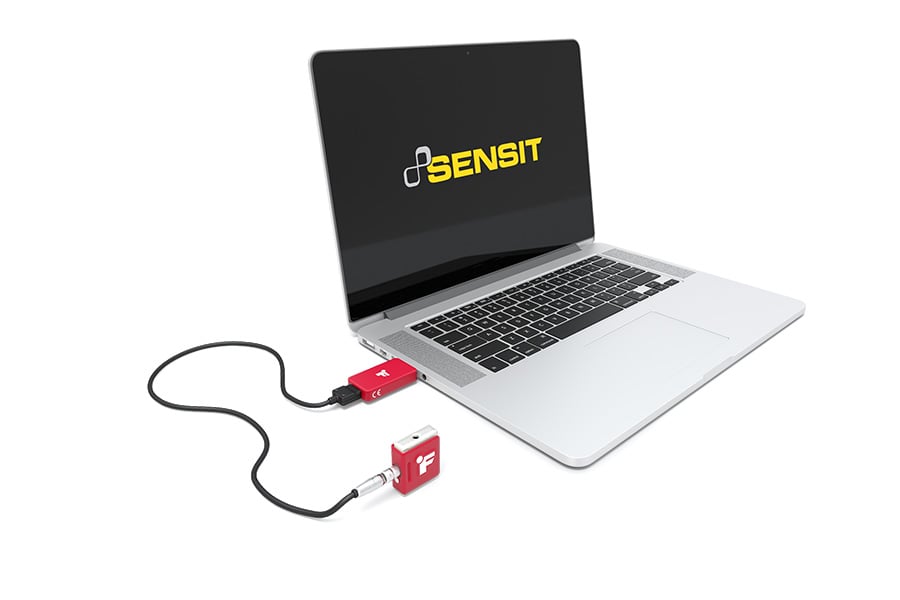

The USB Load Cell Amplifier works hand in hand with SENSIT Test and Measurement software, which allows users to monitor the actual output of the sensor in real time. This is calculated based on the calibration values stored in the on-board memory. The easy plug-and-play connection gives you the power to monitor the USB Load Cell interface output and enjoy measurement that is less affected by noise, temperature variation, and excitation. The USB220 USB Load Cell Digital Amplifier is designed and manufactured by FUTEK in the USA.


For other USB Solutions, check out our USB Load Cell Amplifiers store.

Features
  • USB 2.0 Communication Link
  • USB Bus-Powered
  • Integrated Shunt Call
  • Input/Output Short Circuit Protection
  • Streaming ASCII Output
  • CE Criteria A Certification for Aerospace and Medical Grade Devices
  • Supports mV/V type sensors
Videos
video
All New Housing for USB220 High Resolution/Speed USB Module
video
FUTEK USB Wiring, Configuration, and Calibration Tutorial
Specifications
Electrical
Interference
Mechanical
Performance
Set-up
Temperature
CHANNELMINTYPMAXUNIT
Bridge Resistance
50
5000
Excitation
4.6
Vdc
Input Range
-3.4
3.4
mV/V nom.
Communication Interface
USB
Weight
23
Gram
Nonlinearity
-0.01
0.01
% of R.O.
Power Supply
5
Vdc
Sample Rate
5
4800
Samples / Sec
Operating Temperature
-13
185
Storage Temperature
-40
257
Related Accessories
ASW200 play_arrow FSH04877
SENSIT® Test and Measurement Software Version 2.11. 1 Year Time-Limited License. Compatible with Windows 10 and Windows 11. For use with IDA100, IHH500, IPM650, USBXXX, QIA123, and QIA128. One License Required Per Seat.
ASW200 play_arrow FSH04878
SENSIT® Calibration Software Version 2.11. 1 Year Time-Limited License. Compatible with Windows 10 and Windows 11. For use with IDA100, IHH500, IPM650, USBXXX, QIA123, and QIA128. One License Required Per Seat.
CONNEC play_arrow GOD03135
USB Gold Extension Cable for USB 2.0 Cables , Type A (M/F) , 10 ft long
ZCC200 play_arrow FSH04549
ZCC200 System Cable Assembly , 15 ft [4.6 m] Long , 4 Pin Micro Mating Connector (CC19) , Mates USB215/USB220 , Braided Shielded PVC Cable , RoHS Compliant
ZCC910 play_arrow FSH04480
ZCC910 , System Cable Assembly , 10 ft [3 m] Long , 6 Pin Binder 99-2022-09-06 (CC11) to 12 Pin Hirose , Mates TRD300, TRS300, TRH300 to USB215/USB220 , Braided Shielded Polyurethane Cable , RoHS Compliant
ZCC921 play_arrow FSH04486
ZCC921 System Cable Assembly , 5 ft [1.52 m] Long , 7 Pin Nano Mating Connector (CC18) , Mates to USB215/USB220 w/ 12 Pin Hirose , Braided Shielded Polyurethane Cable , RoHS Compliant
ZCC940 play_arrow FSH04473
ZCC940 , System Cable Assembly , 15 ft [4.6 m] Long , 4 Pin Lemo FGG.0B.304.CLAD (CC4) to 12 Pin Hirose , Mates USB215/USB220 , Braided Shielded PVC Cable , RoHS Compliant
ZCC950 play_arrow FSH04477
ZCC950, System Cable , 15 ft [4.6 m] Long, 6 Pin Bendix PT06A-10-6S-SR (CC1) to 12 Pin Hirose , Mates sensor to USB215/USB220 , Braided Shielded Polyurethane Cable , RoHS Compliant
ZCC993 play_arrow FSH03520
ZCC993 , USB Screw Terminal Adapter Board , For Use With USB210/USB215/USB220/USB230/USB320 , 2 ft Long
ZCO940 play_arrow FSH03320
ZCO940 , Connector Plug Kit for USB215/USB220/USB320. Includes 12 pos. connector plug and appropriate size bushing (4.0, 4.5, 5.0). One Connector Kit included with the purchase of any USB215, USB220, or USB320.
Alternative Models
FSH04720
USB225 play_arrow FSH04720
USB225 Pro , High Resolution USB Output Kit , Up to 20 Bits Noise Free Resolution or Up to 4,800 SPS , For Strain Gauge Full Bridge mV/V Inputs , Red Powder Coated Aluminum Enclosure
play_arrow Spec Sheet
