QLA299 play_arrowQSH01133

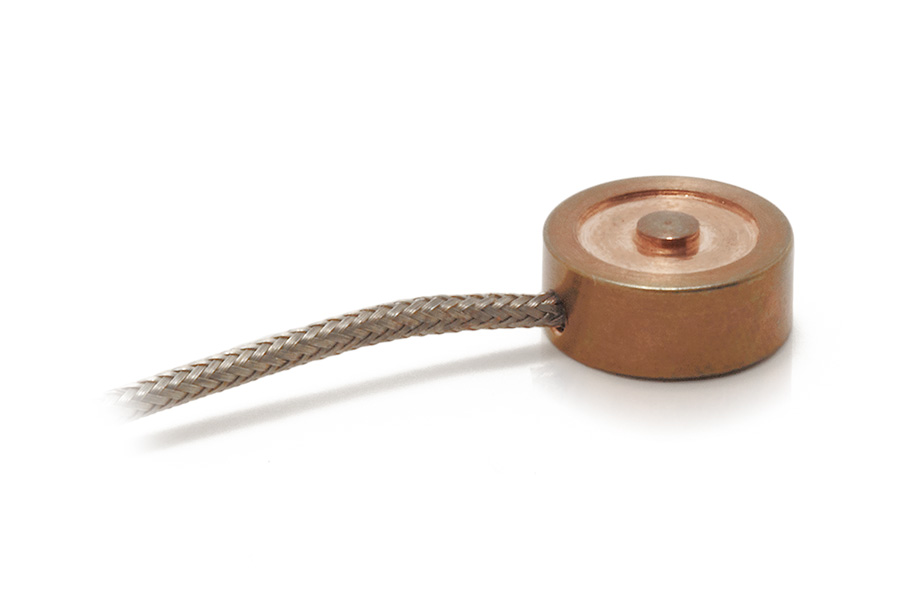

Non-Ferrous/Non-Magnetic Compression Load Button Load Cell

QLA299 , 250 lb , Non-Ferrous/Non-Magnetic Load Cell , Material - Beryllium Copper , 30 Awg 4 Conductor Braided Shielded Teflon Cable , 21" Long w/ JST PHR-5 Connector
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Non-Ferrous Load Cell

Features
Technical Documents
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
5
Vdc
Excitation
1
1
7
Vdc
Input Resistance
1
350
Ohms nom.
Safe Overload
1
150
% of R.O.
Capacity
1
250
lbs
Hysteresis
1
-0.25
0.25
% of R.O.
Nonlinearity
1
-0.25
0.25
% of R.O.
Output Resistance
1
350
Ohms nom.
Rated Output
1
1.8
2.2
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
160
F
Temperature Shift Zero
1
-0.02
0.02
% of R.O./F
Alternative Models
FSH03938
LLB300 , 250 lb , Subminiature Load Button , RoHS Compliant , Material - 17-4 PH S.S. , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
play_arrow Spec Sheet
+
