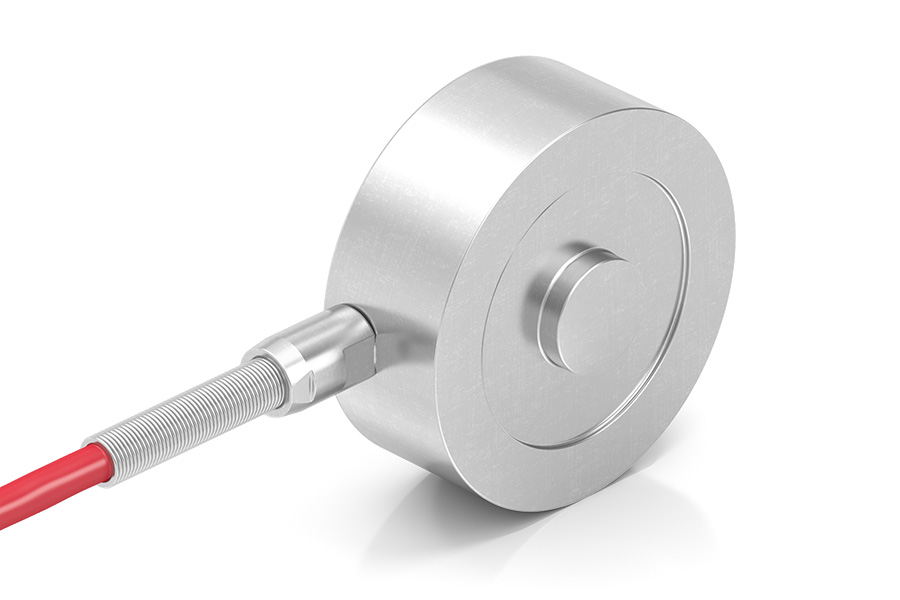

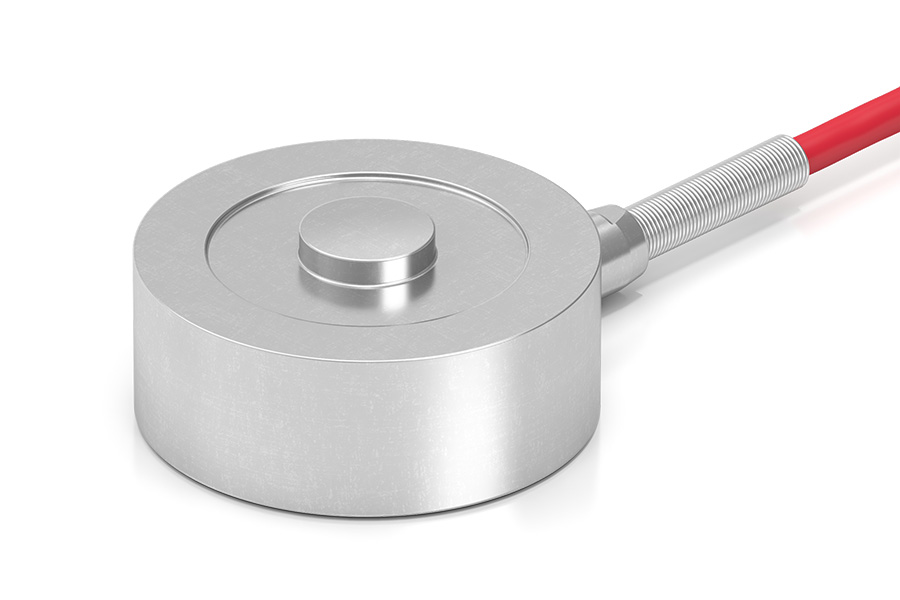

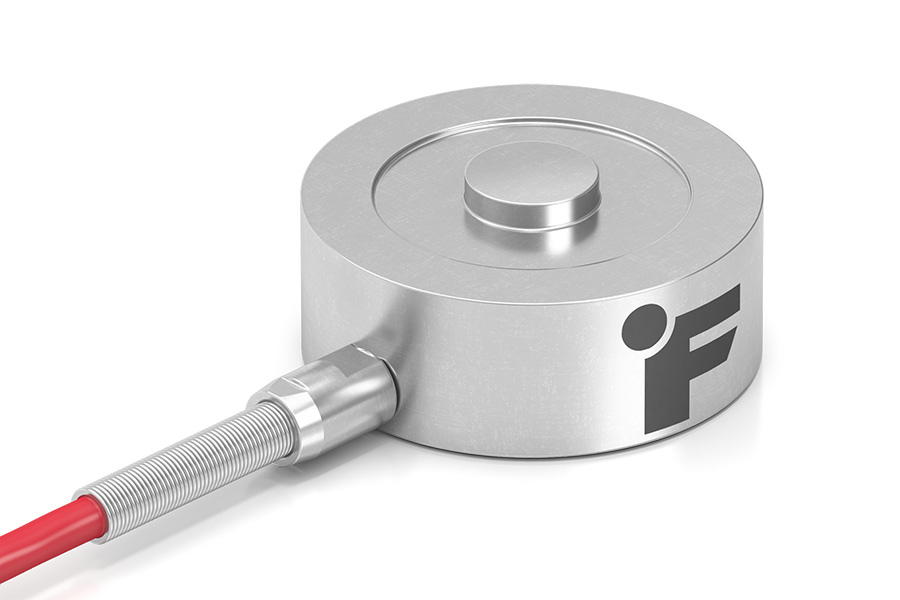

High Capacity Load Button with Threaded/Tapped Holes

LLB450 , 5000 lb , Load Button Load Cell , High Shock and Vibration Capability, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

Spec Sheet

3D Model Download

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

With a package that stands at 1.48” [37.6mm] in diameter and 0.63” [16.0mm] in height, the LLB450 Load Button Load Cell is an extraordinarily accurate miniature sensor that punches well above its size with a capacity range from 5,000 and 10,000 lbs [2268 – 4536kg]. This diverse and durable sensor solution features three mounting holes built for press or inline compression applications, such as measuring loads on a turbine shaft or gauging forces on a CNC workpiece. The LLB450 has a cable connection with a 10 feet [3.048m] long 28 AWG 4 conductor shielded cable.

FUTEK can offer custom versions that are rated for vacuum/low outgassing, high or low operating temperatures, radiation environments, autoclavable, and high vibration/shock.

Features

Low Deflection
17-4 Stainless Steel Construction
Compression
Utilizes Metal Foil Strain Gauge Technology

Technical Documents

Extraneous Load Factor

Guide To Calculating Extraneous Loads

Resources

How to reduce electrical noise in your system

LLB Connector Benefits

Load Verification Package

Product Manual

Load Button Series Manual

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		100		kOhm
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			5000	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
