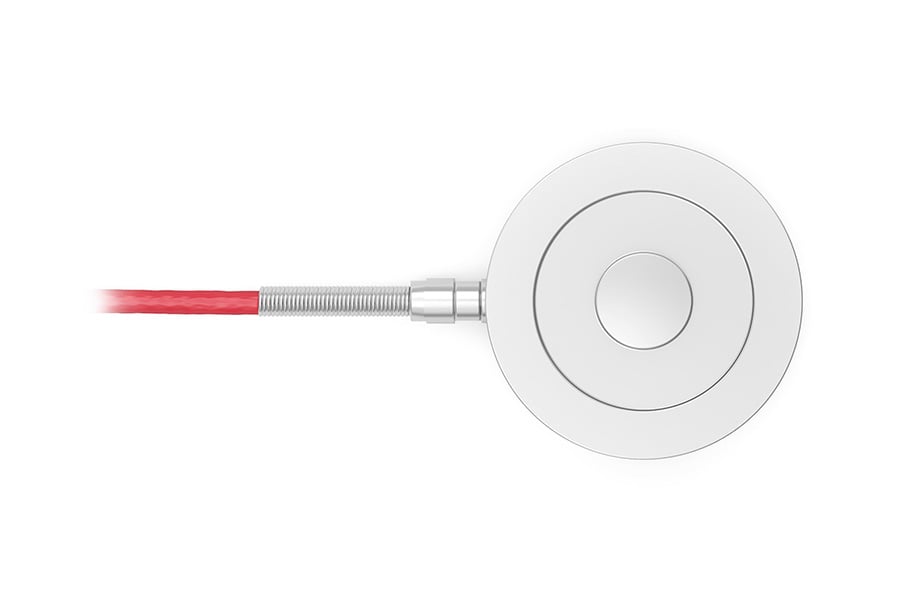

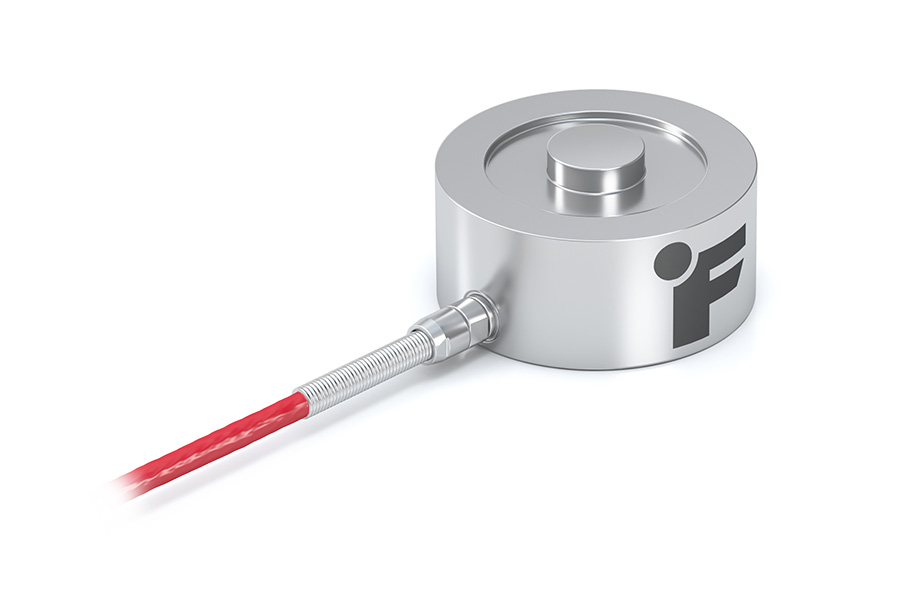

High Capacity Load Button with Threaded/Tapped Holes

LLB500 , 20000 lb , Load Button Load Cell , RoHS Compliant, Bottom #6-32 Tapped Holes , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long

Spec Sheet

3D Model Download

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

With a package that stands at 1.98” [50.3mm] in diameter and 1” [25.4mm] in height, the LLB500 Load Button Load Cell is an extraordinarily accurate sensor that punches well above its size with a capacity range from 15,000 to 30,000lbs [6804 – 13608kg]. This diverse and durable sensor solution features three mounting holes built for press or inline compression applications, such as measuring loads on a turbine shaft or gauging forces on a CNC workpiece. The LLB500 has a 10 feet [3.048m] long 28 AWG 4-conductor shielded cable.

When it comes to impact force measurement, FUTEK offers a range of high-quality products that meet the demands of even the most challenging scenarios. One highly recommended solution is the LLB500 Load Button, which provides exceptional performance with a frequency response of up to ~20 kHz. Combined with the USB225 Pro Elite, a USB digital signal conditioner capable of signal sampling up to 38,400 SPS, and the SENSIT data logging software, peak and impact forces can be accurately captured and analyzed.

Features

• Ultra low deflection
• Robust strain relief
• 17-4 PH stainless-steel construction
• For use in compression
• Utilizes metal foil strain gauge technology

Technical Documents

Extraneous Load Factor

Guide To Calculating Extraneous Loads

Resources

How to reduce electrical noise in your system

LLB Connector Benefits

Load Verification Package

Product Manual

Load Button Series Manual

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		100		kOhm
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
Safe Overload	1			150	% of R.O.
Capacity	1			20000	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.1		0.1	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
