LLB130 play_arrowTPS01001

Subminiature Load Button

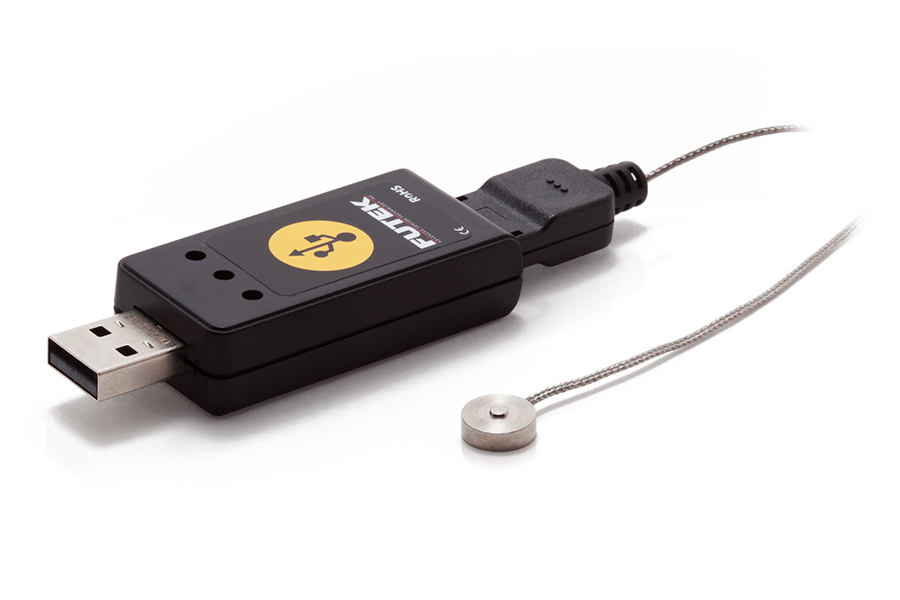

LLB130 + USB220 , 50 lb Capacity w/ Up To +/-0.0006 lb Noise Free Resolution , Subminiature Load Button Load Cell Bundle , 17-4 PH , Braided Shielded Silicone Cable , 5 ft Long , Includes NIST Traceable 5 point Compression Calibration
Listed price is in U.S. currency and subject to verification along with availability

Model LLB130 is a Miniature Load Button designed for Press, or Inline compression applications. The LLB130 Miniature Load Button model is made from a robust 17-4 PH Stainless Steel, with a subminiature 0.38 inch outside diameter.

Although Miniature Load Button are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. These load cells achieve great accuracy and stiffness with a Nonlinearity of ±0.5% and Deflection of 0.002” nominal. You will also find options for external matched output readily available.

The standard LLB130 Miniature Load Button can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

  • Fully internally temperature compensated (no external conditioning circuitry)
  • Subminiature / light weight
  •  Low deflection / fast response
  • 17-4 PH stainless-steel construction
  • For use in compression
  • Utilizes metal foil strain gauge technology
  • Adheres to RoHS directive 2011/65/EU
  • Accessories and related instruments available
LLB130: Overview Video
