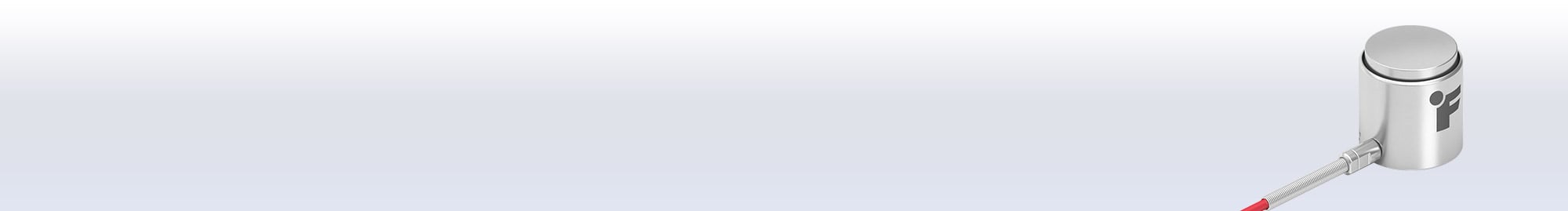

miniature column load cell LCA305
LCA305

Miniature Load Column Load Cell

1 Products
settings
Item Number
Load Capacity
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Features
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
Connection Code
Safe Overload
10000 lb
0.88
0.88
0.88
0.88
RoHS
mV/V
Cable
1
29 Awg 4 Conductor Spiral Shielded Teflon Cable
10 ft
Compression
0.25 %RO
200 F
-60 F
18 VDC
0.5 %RO
350 Ohm
IP64
17-4 PH S.S.
LCA305 , 10000 lb , Miniature Load Column Load Cell , Material - 17-4 PH S.S. , Welded Covers , RoHS Compliant , 29 Awg 4 Conductor Spiral Shielded Teflon Cable , 10 ft Long
160 F
60 F
0.16
N
WC1
150 %RO

FUTEK’s Column Miniature Load Cell offers an impressive compact design for high capacity applications. With a diameter of 0.88”, it is ideal for tight spaces. The LCA305 Column Miniature Load Cell is offered in 17-4PH Stainless Steel in 7,500 to 10,000 lbs, with a raised surface radius to lower the possibility of off center loading.

The Column Micro Force Sensor is designed to measure loads in compression. This model is manufactured in US, and similar to our entire Load Cell product line, uses metal foil strain gauge technology. Additional design features include the use of a strain relief providing much greater protection from the pull on the cable.

+
