QSH02151 Custom Torque and Thrust Biaxial Sensor

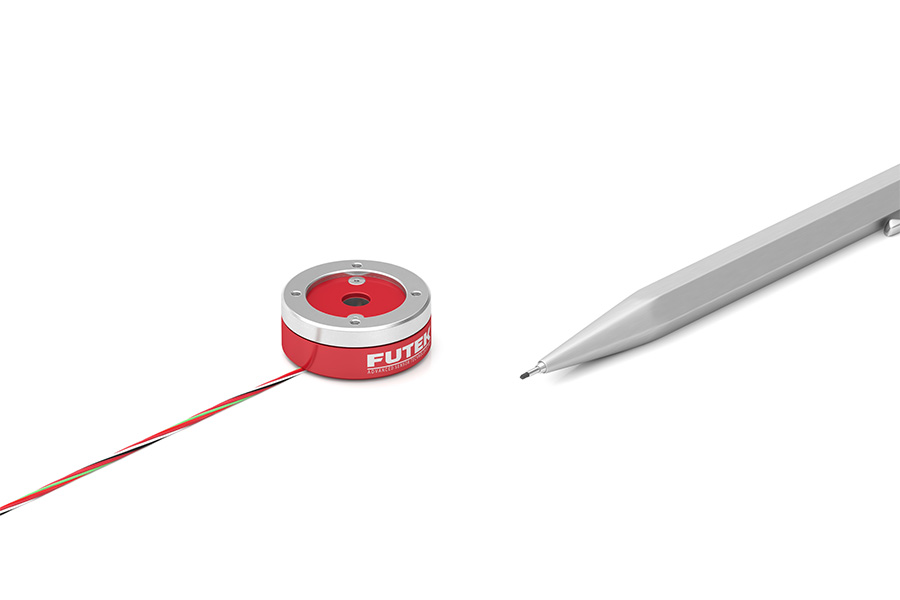

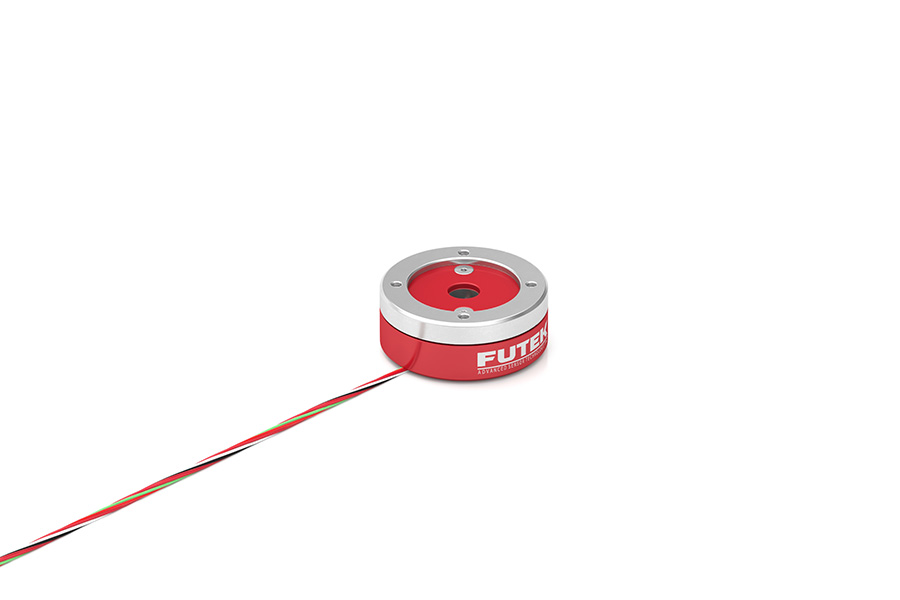

Custom Miniature Torque and Thrust Sensor with 5.5 mm Thru Hole.
Drilling torque and thrust force measurement is a potential application for bi axial axis sensors. Based on the drilling measurement data, operators and manufacturing engineers can optimize the process, prevent process failures, predict power drill or drill bit maintenance or replacement, and investigate the drilling process parameters, including cutting speed, feed rate, drill bit geometry, and composition, on the output product quality.
Features
- Low 12 mm Height force torque sensor.
- Miniature 30 mm Outer Diameter
- Light Weight Aluminum Construction
- Almost 15x Smaller Than a Traditional Dual Axis Load Cell
QSH02151Change
QMA150 , Ch Fz: 100 N ; Ch Mz: 2.5 Nm , Custom Miniature Torque & Thrust Sensor , 0.472" [12 mm] H x 1.181" [30 mm] OD , Material - 2024-T4 Aluminum, 6 Cond. Spiral Teflon Cable , 3.94" Long, RoHS Compliant
