Mini Beam Load Cell
LSM400

Mini Beam Load Cell

1 Products
settings
Item Number
Load Capacity
Thread Size
Height In Inches
Length In Inches
Width In Inches
Output Type
Connection Type
# Of Bridges/channels
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Safe Overload
Ip / Nema Rating
Material
Weight In Lb
Custom Special
Temperature Shift Span
Max Compensated Temperature
Temperature Shift Zero
Min Compensated Temperature
150 lb
#10-32
1
2.38
0.44
mV/V
Cable
1
29 Awg 4 Conductor Spiral Shielded Teflon Cable
10 ft
Tension & Compression
0.01 %RO
200 F
-60 F
18 VDC
0.05 %RO
1120 Ohm
150 %RO
IP20
2024-T4
0.1125
N
0.0008 TSS
160 F
0.001 TSZ
60 F

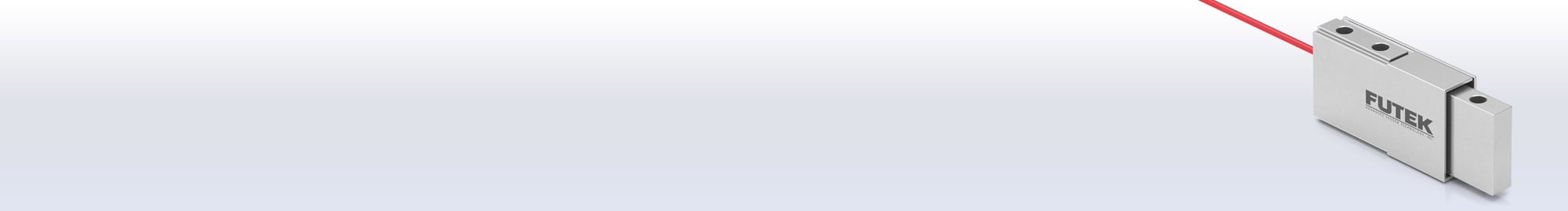

The LSM400 Single Point Load Cell offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression, the Single Point Load Cell has a length of 2.38”, width of 0.44” and with a height of 1.00” it is well suited for any tight spaces. The LSM400 Single Point Load Cell is offered in 2024 aluminum (5 – 150 lbs) and it has a 29 AWG 4 conductor shielded Teflon cable (10 ft). Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.


Mini Beam Load Cell
Mini Beam Load Cell
+
