rod end linear electric actuator load cell
LCB200

In Line Rod End Load Cell

6 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Safe Overload
Ip / Nema Rating
Material
Weight In Lb
Description
Custom Special
Temperature Shift Span
Max Compensated Temperature
Temperature Shift Zero
Min Compensated Temperature
1000 lb
3/8-24
0.96
2
0.96
0.96
Fatigue Rated, RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
0.21875
LCB200 , 1000 lb , Tension & Compression Inline Load Cell w/ Male and Female Thread , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
N
0.01 TSS
160 F
0.005 TSZ
60 F
1000 lb
3/8-24
0.96
2
RoHS
mV/V
Connector
1
4 Position Micro Circular Receptacle
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
LCB200 , 1000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 4 Pin Micro Receptacle
N
0.01 TSS
160 F
0.005 TSZ
60 F
2000 lb
3/8-24
0.96
2
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
LCB200 , 2000 lb , Tension & Compression Inline Load Cell w/ Male and Female Thread , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
N
160 F
0.005 TSZ
60 F
2000 lb
3/8-24
0.96
2
RoHS
mV/V
Connector
1
4 Position Micro Circular Receptacle
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
LCB200 , 2000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 4 Pin Micro Receptacle
N
160 F
0.005 TSZ
60 F
3000 lb
3/8-24
0.96
2
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
LCB200 , 3000 lb , Tension & Compression Inline Load Cell w/ Male and Female Thread , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long
N
160 F
0.005 TSZ
60 F
3000 lb
3/8-24
0.96
2
RoHS
mV/V
Connector
1
4 Position Micro Circular Receptacle
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
1000 Ohm
150 %RO
IP64
17-4 PH S.S.
LCB200 , 3000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/8-24-Thread , 4 Pin Micro Receptacle
N
160 F
0.005 TSZ
60 F

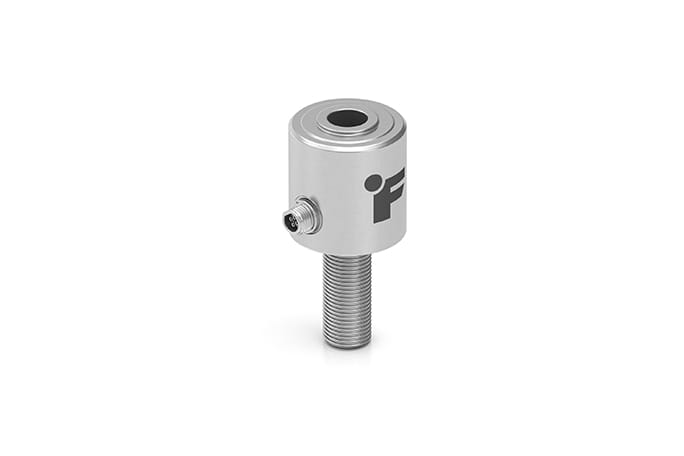

Model LCB200 is a Rod End Load Cell (Tension and Compression) designed for applications involving Inline Actuators or Hydraulic Jacks with Male/Female Threads. This model is well suited for the mid range capacity requirements (1,000 lb – 3,000 lb) offering high endurance and excellent accuracy. For any applications that require a higher capacity range, please refer to the LCB400, LCB450 and LCB500

This Rod End Load Cell has high accuracy and high stiffness. It has Nonlinearity of ±0.5%, Bridge Resistance of 1000 ohms, and Deflection of 0.001” nominal. The standard LCB200 Rod End Load Cell (Tension/Compression) can be modified or customized to meet your requirements, and most capacities are in our inventory, making them available for 24 hour shipping.


Commonly industrial applications involving electric actuators require the precise measurement of the load being applied by the actuator, and thus a linear actuator with force sensor is required (e.g. force-controlled linear actuator). LCB200 load cell is suitable for direct mounting on the cylinder rod. They can, for example, be used to measure contact forces or overloads.
