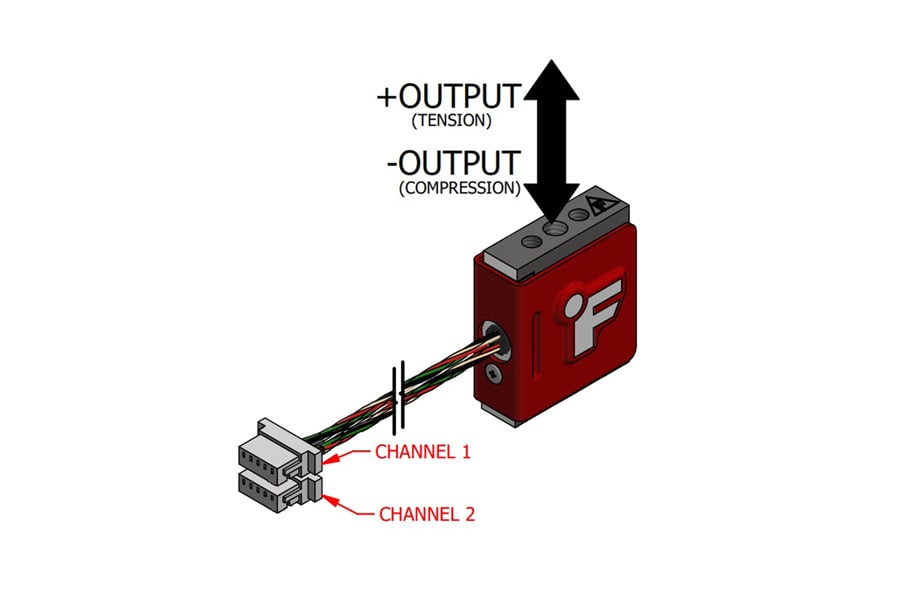

Miniature S-Beam Jr. Load Cell 2.0

LSB201 , Ch 1: 50 N; Ch 2: 50 N , S-Beam Jr.™ Load Cell , Custom Dual Bridge w/ Overload Protection , RoHS Compliant , 17-4 PH S.S., M3x0.5 & M2.5x0.45-Threads , 2x 29 Awg 4 Conductor Spiral Teflon Cable , 8 in Long w/ 5 Pin JST Connector

Spec Sheet

3D Model Download

Extraneous Load Factor

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

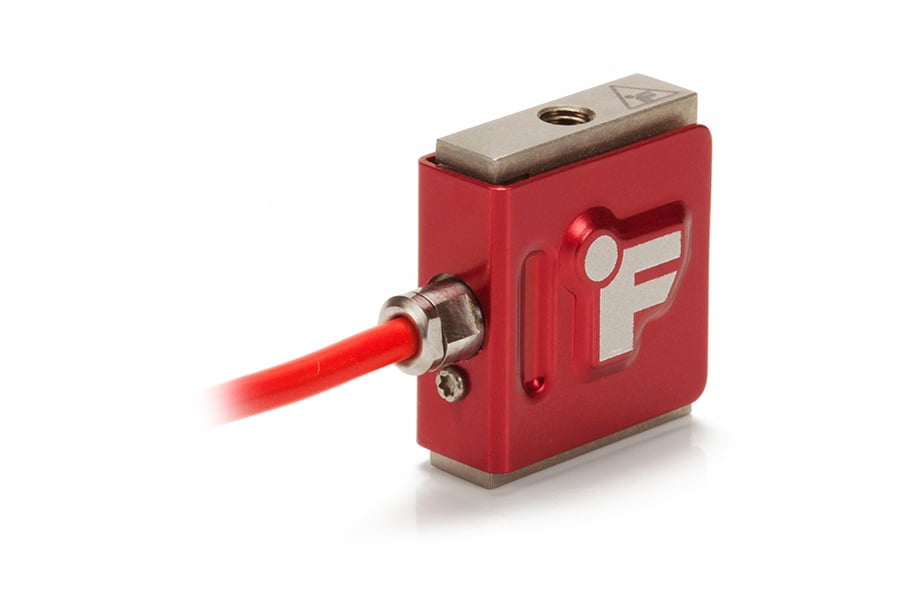

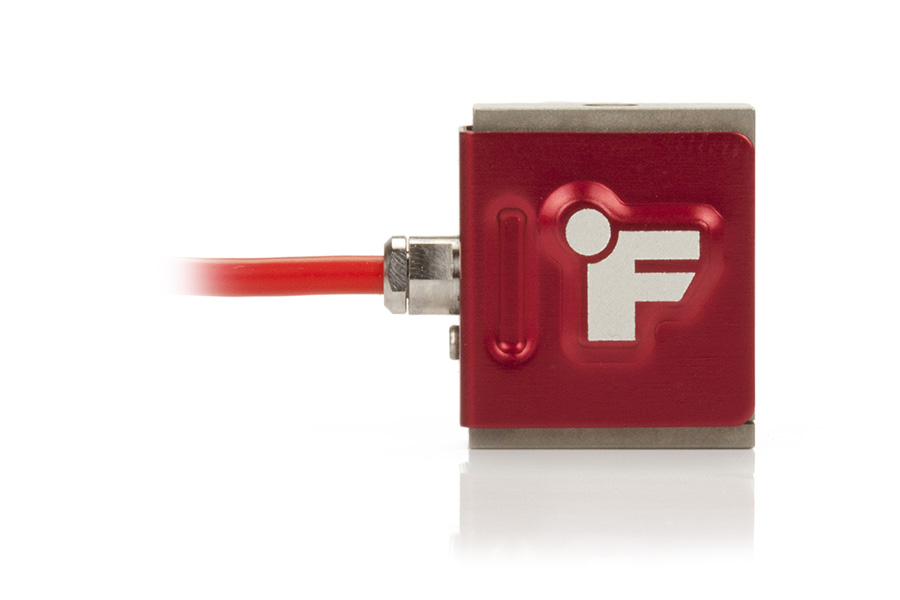

The LSB201 is one of FUTEK’s most in-demand miniature force sensors, due to its small footprint, high performance and exceptional quality and durability. Featuring unparalleled capabilities for a miniature load cell of its size, the versatile and universal LSB201 offers limitless possibilities for applications.

Model LSB201 is a Miniature S Beam Jr.^®Load Cell built for Endurance, for Tension, or Compression applications. The standard LSB201 Miniature S Beam Jr.^®Load Cell model has a very robust construction available in 17-4 PH Stainless Steel, with female threads on both ends and a 5 feet long 29 AWG 4 conductor Spiral Shielded Silicone Cable. This tension and compression ultra-lightweight micro force sensor offers an exceptional weight of 22 grams only. You will also find a mini load cell for external matched output readily available.

The Miniature Force Sensor offers high accuracy. It has a Nonlinearity of ±0.1% of Rated Output, Deflection of 0.003” nominal, and Safe Overload of up to 1000% of Rated Output. The standard LSB201 Miniature S Beam Jr.^®Load Sensor can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

Features

Technical Documents

Resources

How to reduce electrical noise in your system

Extraneous Load Factor

LSB201 - Extraneous Load Factor

Product Manual

S-Beam Load Cell Series Manual

Videos

Application Focus: Endurance Testing

LSB200 Installation Tool

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		5		Vdc
	2		5		Vdc
Shunt Calibration	1		60.4		kOhm
	2		60.4		kOhm
Excitation	1	1		10	Vdc
	2	1		10	Vdc
Input Resistance	1		350		Ohms nom.
	2		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
	2	500			Mohms @ 50 Vdc
Safe Overload	1			1000	% of R.O.
	2			1000	% of R.O.
Capacity	1			10	lbs
	2			10	lbs
Hysteresis	1	-0.1		0.1	% of R.O.
	2	-0.1		0.1	% of R.O.
Nonlinearity	1	-0.1		0.1	% of R.O.
	2	-0.1		0.1	% of R.O.
Nonrepeatability	1	-0.05		0.05	% of R.O.
	2	-0.05		0.05	% of R.O.
Output Resistance	1		350		Ohms nom.
	2		350		Ohms nom.
Rated Output	1		2		mV/V nom.
	2		2		mV/V nom.
Compensated Temperature	1	60		160	F
	2	60		160	F
Operating Temperature	1	-60		200	F
	2	-60		200	F
Temperature Shift Span	1	-0.02		0.02	% of Load/F
	2	-0.02		0.02	% of Load/F
Temperature Shift Zero	1	-0.01		0.01	% of R.O./F
	2	-0.01		0.01	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
	2	-3		3	% of R.O.
