LCM100

Micro Miniature Threaded In Line Load Cell

10 Products

settings

Item Number	Load CapacityME	Thread Size	Outer Diameter In Inches	Height In Inches	Environmental Conditions	Features	Output Type	Connection Type	# Of Bridges/channels	Cable Type	Cable Length	Load Directions	Nonrepeatability	Max Operating TemperatureME	Min Operating TemperatureME	Max Excitation	Nonlinearity	Input Resistance	Safe Overload	Ip / Nema Rating	Material	Weight In Lb	Description	Custom Special	Temperature Shift Span	Max Compensated TemperatureME	Temperature Shift Zero	Min Compensated TemperatureME
FSH03842	35.2739 oz	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 1000 g , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH04397	35.2739 oz	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 1000 g , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH03829	5 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 5 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH04398	5 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 5 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH03828	10 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 10 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH04399	10 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 10 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH03827	25 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 25 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
FSH04400	25 lb	M3x0.5	0.38	0.48		RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP64	17-4 PH S.S.	0.019	LCM100 , 25 lb , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Polyester Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
QSH01870	35.2739 oz	M3x0.5	0.38	0.48	Submersible, Water Resistance	RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP67	17-4 PH S.S.	0.01875	LCM100 , 1000 g , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, IP67, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Shielded Polyester Cable , 5 ft Long	N	0.02 TSS	160 F	0.02 TSZ	60 F
QSH01983	176.37 oz	M3x0.5	0.38	0.48	Submersible, Water Resistance	RoHS	mV/V	Cable	1	34 Awg 4 Conductor Braided Shielded Polyester Cable	5 ft	Tension & Compression	0.1 %RO	200 F	-60 F	7 VDC	0.5 %RO	350 Ohm	150 %RO	IP67	17-4 PH S.S.	0.01875	LCM100 , 5 kg , Sub-Miniature Tension & Compression Load Cell (Miniature/Inline Threaded) , RoHS Lead Free, IP67, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Shielded Polyester Cable , 5 ft Long	Y	0.02 TSS	160 F	0.02 TSZ	60 F

> LCM100

Ultra-small footprint for inline applications

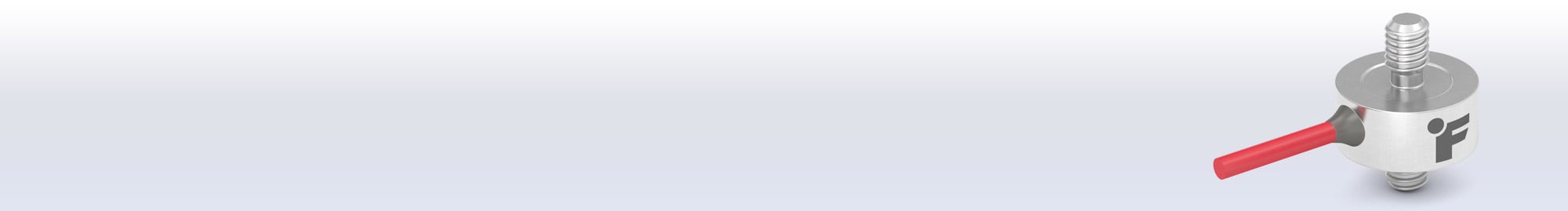

The micro rod end sensor LCM100 is the smallest inline male threaded solution in FUTEK’s catalog. Measuring just 0.38in (9.5mm) in diameter and 0.17in (4.2mm) in minimal clearance height, this micro diaphragm solution utilizes versatile M3 male thread mounting provisions. It provides an ultra fast response in both tension and compression loading with a capacity range of 2.2 to 25lb (1 to 11kg).

The LCM100 miniature load cell is particularly well suited for inline applications with size constraints, such as surgical robotics, as it adds minimal increase in outer diameter or height to the assembly. The model is offered with two cable types, one is a non-jacketed braided cable that is designed to be stable for a one-time static installation, the other is a jacketed cable that is designed for repeated flex cycles. This model can also be modified to suit OEM applications. FUTEK offers application and engineering resources during DFM/DFX stage upon request.

diameter: 9.5mm
height (excluding threads): 4.2mm
capacity: 2.2 to 25lb

Minimal mounting clearance

The minimal mounting clearance of the LCM100 makes it ideal for applications that require a tiny footprint without sacrificing accuracy and durability. It’s particularly beneficial for linear actuators in surgical robotics or very small processing or automation equipment where tension or compression forces are measured inline.

Made to be accurate

The LCM100 miniature load cell has a maximum non-linearity of ±0.5%. The precision of the sensor is also augmented by its high stiffness, which leads to a very low deflection. In addition, special design and manufacturing touches further enhance the sensor’s performance, such as a custom strain gage that further reduces influences of eccentric load.

Dust and water jet resistant

LCM100 models with a jacketed cable have an an IP65 rating, which means they can withstand dust and direct water spray. This opens up more options for applications in most dusty environments and those where there are washdown environments.

Easy mounting

The LCM100 has male threads on both ends for easy and flexible mounting options. Also, the compact design allows you to mount it in different locations, especially for applications with very limited space.

Interior thermal compensation

The LCM100 features a monolithic sensing element with integrated zero balance and thermal compensation, which reduces the risk of accidentally removing compensation circuitry. It also offers flexibility for cable routing and customization of the cable length. The sensor’s robust construction enhances and ensures unmatched sensor performance, reliability and environmental protection.

Allows flexible loading options

The flexible male threaded loading provision allows users to create their own end effectors, if, for example, there's a need for a non-conductive or less abrasive setup. Hence, the user can easily achieve the optimal loading provision for their application.

Welded construction

The seam-welded body provides enhanced protection against physical damage in addition to withstanding other harsh environmental conditions. A special heat treatment process has been applied to the flexure to improve durability, extending the life-cycle of the sensor.

Best-in-class material

The exceptional quality of this sensor makes it highly durable and reliable. Its body is made of aerospace-grade 17-4 precipitation hardened stainless steel, which provides high strength, high hardness, low hysteresis and creep properties, and corrosion resistance over a wide temperature range.

Compliance with safety standards

Complies with the CE and RoHS standard and requirements that ensure safety for use in almost any field. The load cell is lead-free, which means that it’s safe for both consumers and the environment.

Calibration included

The LCM100 has been tested by FUTEK’s world-class calibration department and is NIST traceable. We can also reduce hidden costs and setup time by calibrating your sensor with FUTEK electronics of your choice. In addition, we offer calibration to ANSI Z540-1 and ISO 17025 standards upon request.

Malleable cable

Certain units of the LCM100 are offered with a highly flexible 34 AWG, 4-conductor, 5-foot (1.5 m) long braided shielded cable that bends easily within a very tight radius. The braided shield, which is grounded to the sensor’s body, physically covers the signal wires while significantly reducing interference from electrical noise. Although extremely flexible, this cable is not intended for high flex cycles.

Cable designed for flex

The LCM100 is also available with a polyester jacketed cable that is floating on the sensor body and is designed for flex. It’s ideal for applications that require travel or constant handling. The jacket covers the signal wires while significantly reducing interference from electrical noise.

Made in California

Designed and manufactured in-house, using US-sourced materials. Our multidisciplinary engineering teams, high precision machining center, state-of-the-art quality assurance systems, and R&D and manufacturing facilities are all under one roof, allowing us to continuously reinvent and refine our products and processes.
