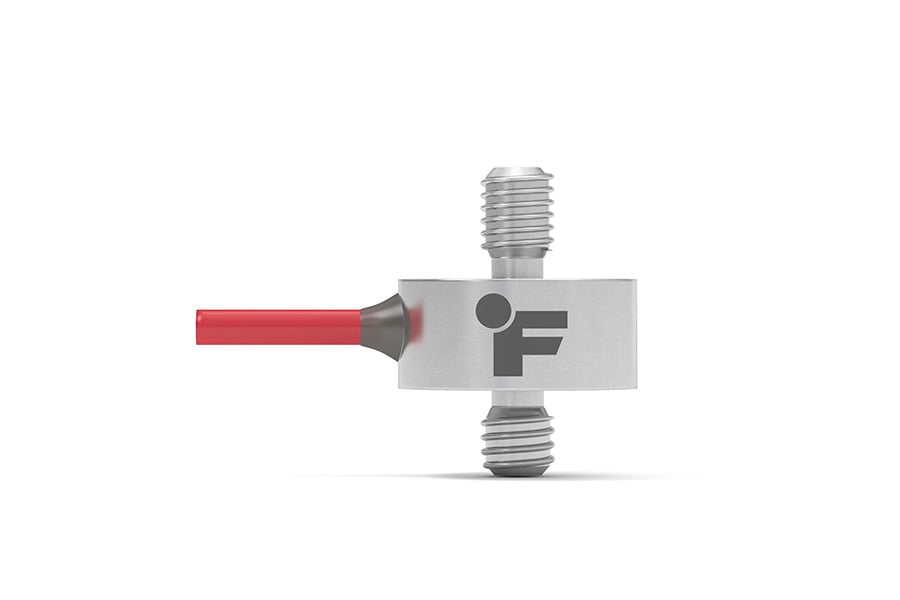

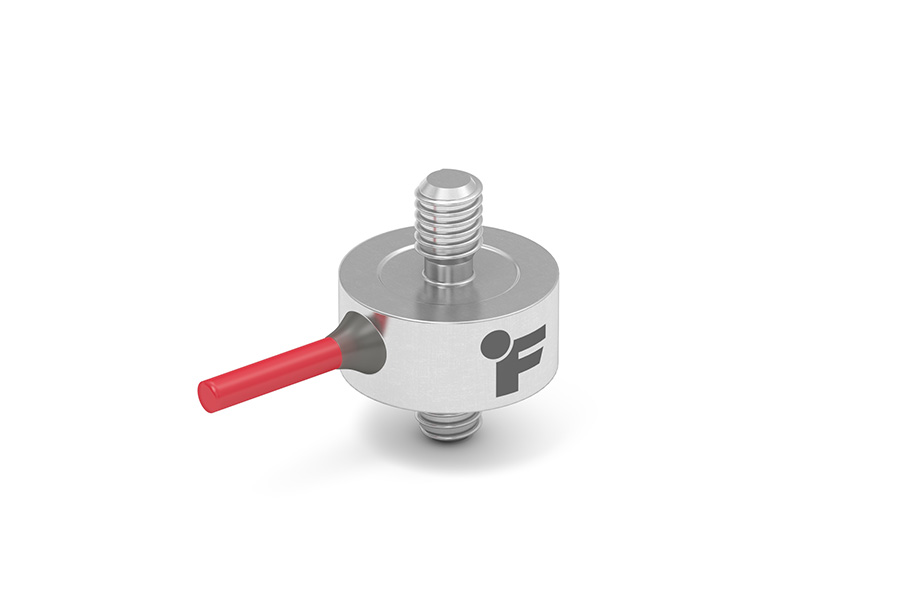

Miniature Threaded In Line Load Cell

LCM100 , 1000 g , RoHS Lead Free , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 5 ft Long mated to IAA100 Voltage Amplifier w/ 10 ft Instrumentation Cable & Compression Calibration
Listed price is in U.S. currency and subject to verification along with availability
LCM100
LCM100
LCM100
LCM100
Description

Model LCM100 is a Miniature Threaded In Line Load Cell built for Endurance or Inline Tension or Compression applications. The standard LCM100 Miniature Threaded In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 5 foot #34 Awg 4 conductor braided shielded cable. This product offers an exceptional weight of 0.3 oz (8.5 g). The LCM100 model is also CE and RoHS compliant.

The Miniature Threaded In Line Load Cell offers high accuracy. It has nonlinearity of ±0.5% of RO and deflection of 0.0001 in to 0.0002 in nominal. The standard LCM100 Miniature Tension and Compression Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

Features
  • High speed, low deflection
  • Minimal mounting clearance

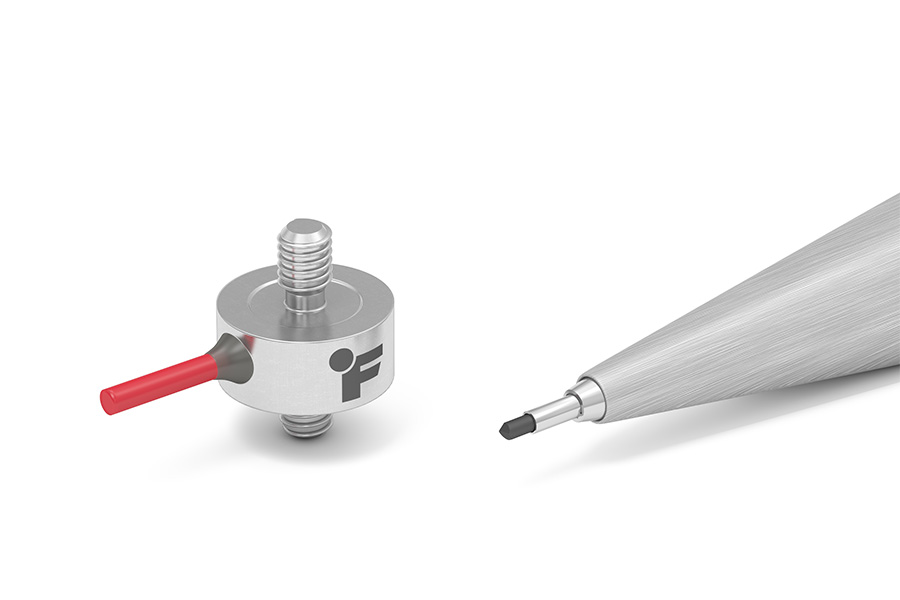

  • Outer diameter of 0.38” [9.5 mm]
  • 17-4 PH stainless-steel construction
  • For use in both tension and compression
  • Utilizes metal foil strain gauge technology
  • Adheres to RoHS directive 2011/65/EU
Support Documents
Videos
video
Application Focus: Endurance Testing
video
LCM100: Overview Video
Specifications
Performance
CHANNELMINTYPMAXUNIT
Capacity
1
1000
Gram
