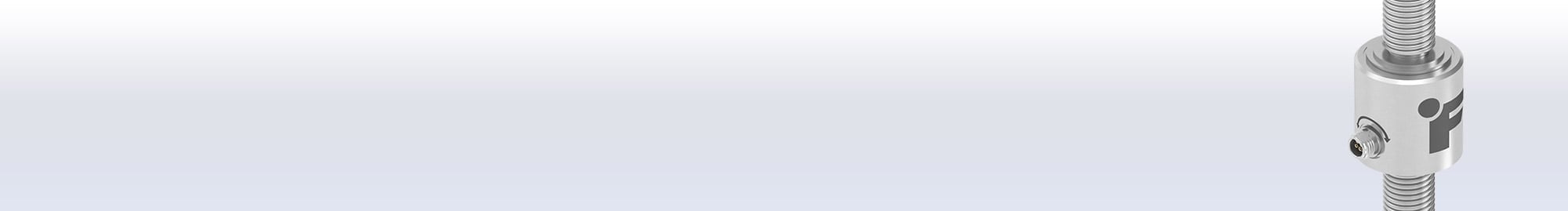

Miniature Threaded In Line Load Cell
LCM350

Miniature Threaded In Line Load Cell

5 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Safe Overload
Ip / Nema Rating
Material
Weight In Lb
Description
Custom Special
Temperature Shift Span
Max Compensated Temperature
Temperature Shift Zero
Min Compensated Temperature
4000 lb
1/2-20
0.96
2.77
0.96
0.96
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
150 %RO
IP64
17-4 PH S.S.
0.22
LCM350 , 4000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 1/2-20-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
N
0.02 TSS
160 F
0.005 TSZ
60 F
4000 lb
M12x1.75
0.96
2.77
0.96
0.96
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
150 %RO
IP64
17-4 PH S.S.
0.22
LCM350 , 4000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , M12X1.75-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
N
0.02 TSS
160 F
0.005 TSZ
60 F
5000 lb
1/2-20
0.96
2.77
0.96
0.96
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
150 %RO
IP64
17-4 PH S.S.
0.22
LCM350 , 5000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 1/2-20-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
N
0.02 TSS
160 F
0.005 TSZ
60 F
5000 lb
M12x1.75
0.96
2.77
0.96
0.96
RoHS
mV/V
Cable
1
28 Awg 4 conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
150 %RO
IP64
17-4 PH S.S.
0.22
LCM350 , 5000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , M12X1.75-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
N
0.02 TSS
160 F
0.005 TSZ
60 F
5000 lb
M12x1.75
0.96
2.77
0.96
0.96
RoHS
mV/V
Connector
1
4 Position Micro Circular Receptacle
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.25 %RO
350 Ohm
150 %RO
IP64
17-4 PH S.S.
0.22
LCM350 , 5000 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , M12X1.75-Thread , 4 Pin Micro Receptacle
N
0.02 TSS
160 F
0.005 TSZ
60 F

> LCM350

Compact, reliable and highly accurate

With a cover height of 1.03in (26.2mm) and diameter of 0.96in (24.4mm), LCM350 is a highly accurate, reliable and stable miniature load cell for tension and compression measurement. Boasting a nonlinearity of ±0.5%, deflection of 0.002in nom, this fast-response sensor has a robust construction that makes it suitable for a wide range of endurance, press, or inline applications and environments.

The LCM350 models with 5000lb capacity and metric thread have been updated with a connectorized cable for easy connection and disconnection. The other products are currently offered in the standard version with an integrated cable.

  • height: 26.2mm
  • diameter: 24.4mm
  • capacity: 4000 to 5000lb

Robust construction

The center covers are seam-welded to the sensor body, providing outstanding strength and enhanced protection against physical damage in addition to withstanding other harsh environmental conditions. A special heat treatment process has been applied to the flexure to improve durability, extending the life-cycle of the sensor.Additionally, IP64-rated housing prevents the ingress of dust and splashes of water from all directions.

Plug in, plug out

The LCM350 with 5000lb capacity and metric thread is now offered with an integrated connector that easily disconnects a damaged cable, which saves time, leads to higher system availability and reduces total cost of ownership. Besides the connectorized version, the original model with an integrated cable is still available.

The 4-position micro cable connector is shown here with the keyed mating face to reduce mating errors. The image shows another model.

Conductor Braided Shielded Clear PVC

For the items with an integrated cable, a braided shield physically covers the signal wires while blocking any interference from stray magnetic and static electric fields. Additionally, the metallic load cell housing blocks all interference and unwanted environmental conditions that would reduce the accuracy and reliability.

LCM300

Easy mounting options

The LCM350 has male threads on both ends for easy and flexible mounting options. Also, the compact design allows you to mount it in locations that require a small footprint, especially those applications with limited vertical space.

High stiffness

The LCM350 has a high stiffness and high natural frequency response rates, hence maintaining accuracy over its entire service life. Together with the robust construction, this feature makes this sensor an ideal load cell for dynamic applications.

High Accuracy

The LCM350 load cell provides enhanced accuracy, performance, and long-term stability. In particular, it has a nonlinearity of ±0.5%.

Calibration included

The LCM350 has been tested by FUTEK’s world-class calibration department and is NIST traceable. We can also reduce hidden costs and setup time by calibrating your sensor with FUTEK electronics of your choice. In addition, we offer calibration to ANSI Z540-1 and ISO 17025 standards upon request.

Best-in-class material

The exceptional quality of this sensor makes it highly durable and reliable. Its body is made of aerospace-grade 17-4 precipitation hardened stainless steel, which provides high strength, high hardness, low hysteresis and creep properties, and corrosion resistance over a wide temperature range.

Made in California

Designed and manufactured in-house, using US-sourced materials. Our multidisciplinary engineering teams, high precision machining center, state-of-the-art quality assurance systems, and R&D and manufacturing facilities are all under one roof, allowing us to continuously reinvent and refine our products and processes.
