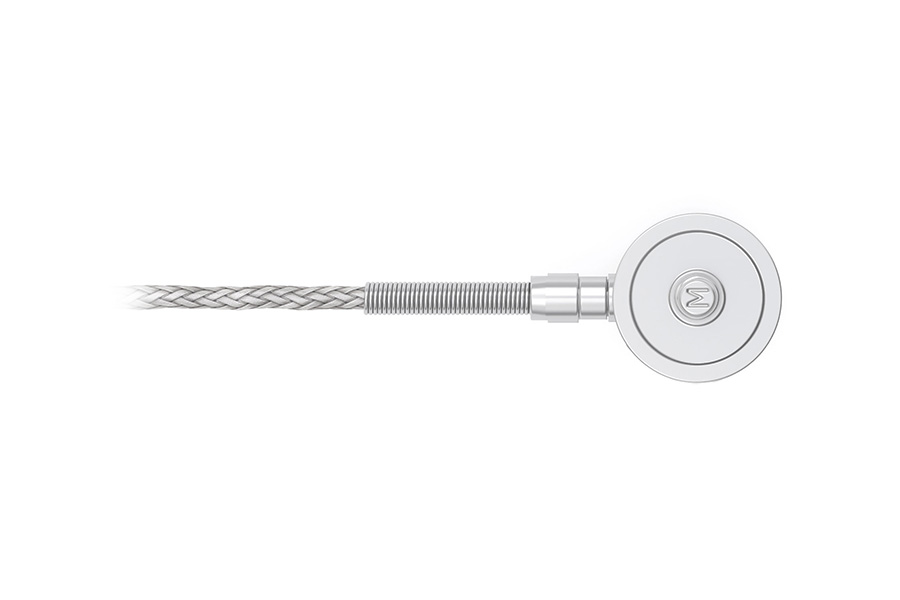

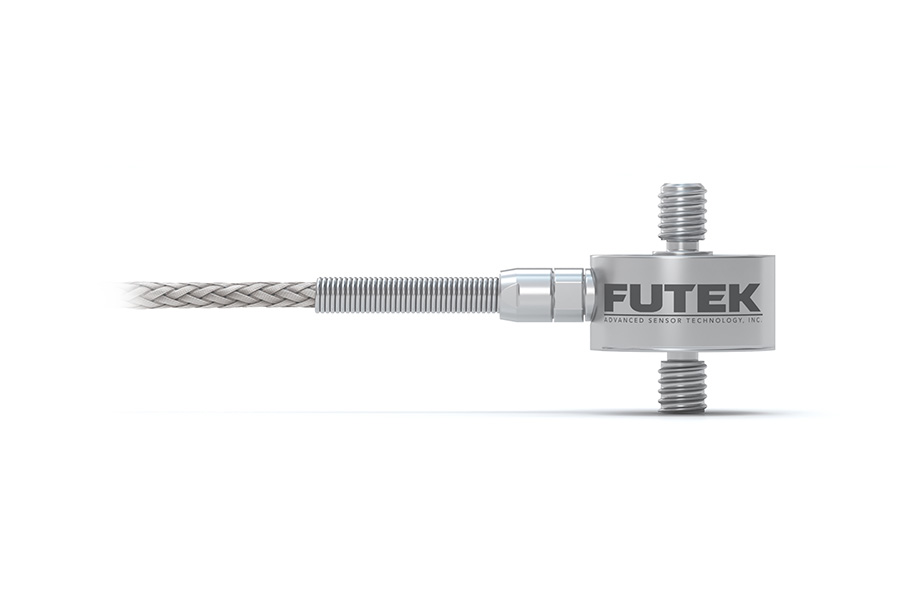

QSH02215 Miniature Threaded In Line Load Cell

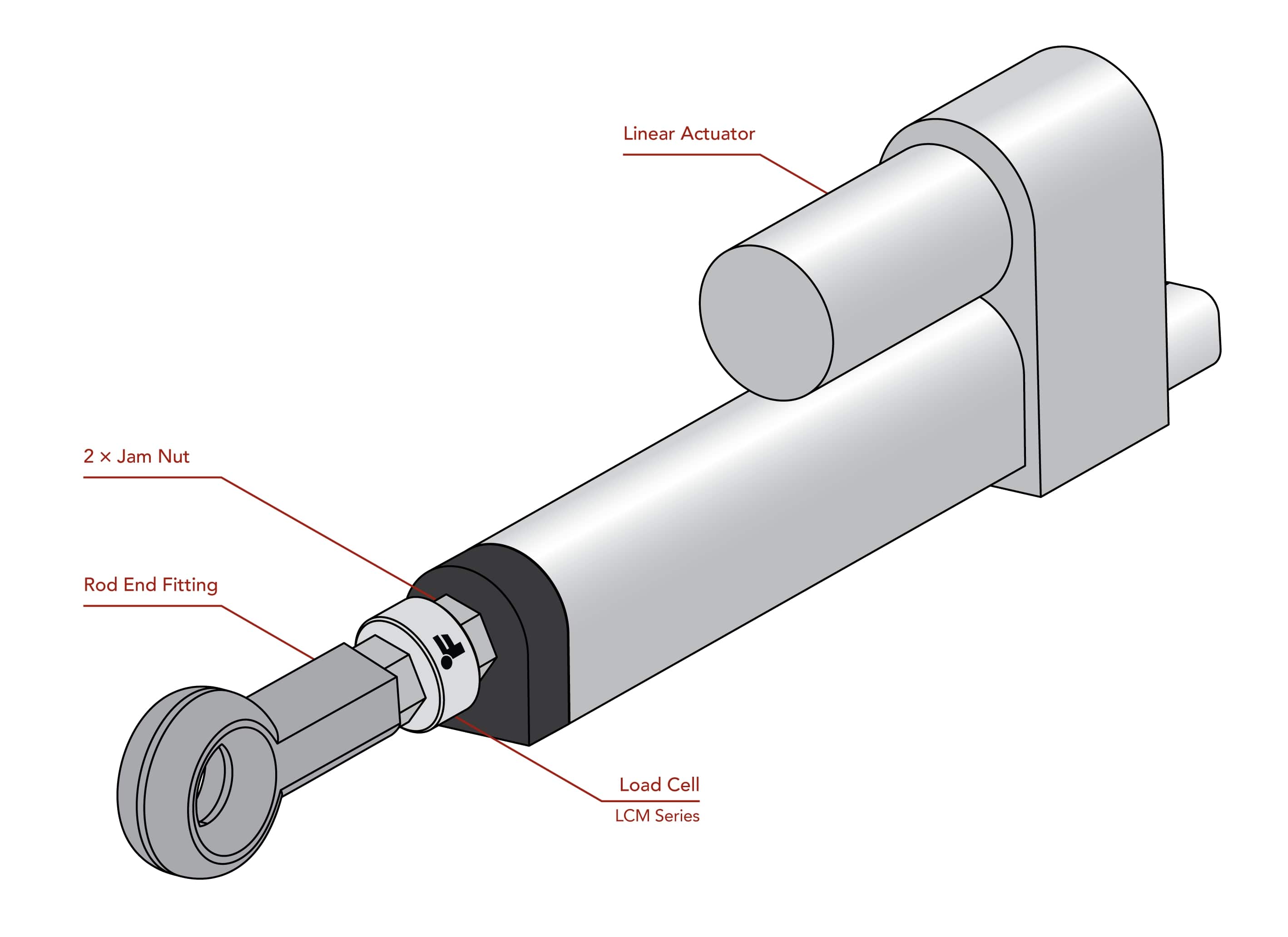

The LCM300 is a multi-dimensional miniature load cell that measures tension and compression loads in endurance, press, and inline applications that require a highly accurate sensor with a small footprint. It’s available in a wide range of capacities that range from 50 lb to 1000 lb [23 – 454 kg] and features a 10 feet [3 m] long 28 AWG 4 conductor braided shielded cable. The standard LCM300 sensor can also be customized to meet your specific requirements.
FUTEK can offer custom versions that are rated for vacuum/low outgassing, high or low operating temperatures, radiation environments, autoclavable, and high vibration/shock.
Features
- Vacuum Compatible/Low Outgassing
- -51 to 93 °C Operating Temperature Range
- Minimal mounting clearance
- 17-4 PH stainless-steel construction
- For use in both tension and compression
- Natural Frequency greater than 10 kHz
- Accessories and related instruments available
Sensor
$0.00
Instrument
$0.00
Accessories
$0.00
Calibration
$0.00
03/03 - Accessories & Services
QSH02215
Change | Lead Time
LCM300 , 100 lb , Miniature/Inline Threaded Tension & Compression Load Cell , Vacuum Compatible/Low Outgassing , Operating Temperature Range -51 to +93C , 17-4 PH S.S. , M6x1-Thread , 26 Awg 4 Conductor Braided Shielded Teflon , 5 ft Long
Where is the output of this model going? *
Please select your required output option for a suggested system
Tools, Adapters and Connectors
Please select your required accessories
Package Total $0.00
