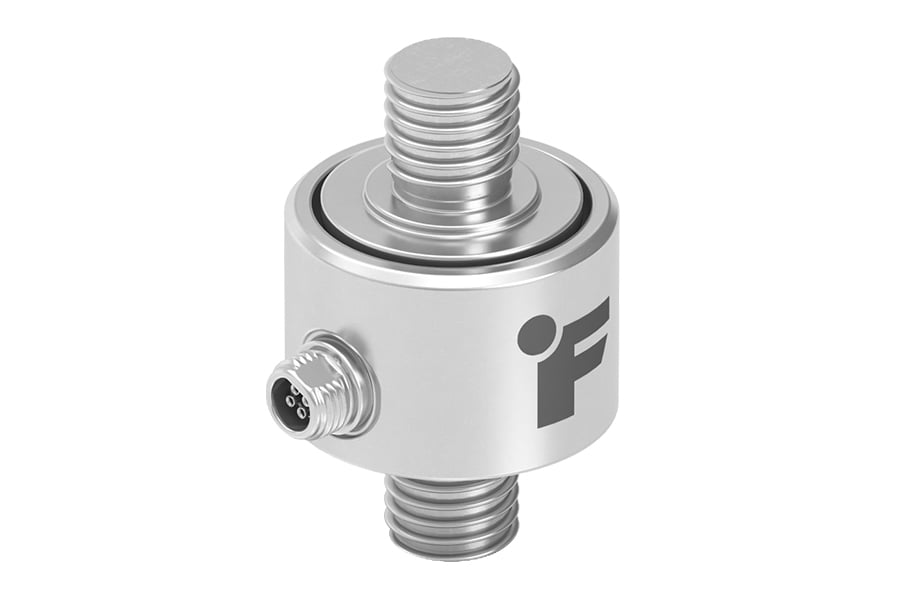

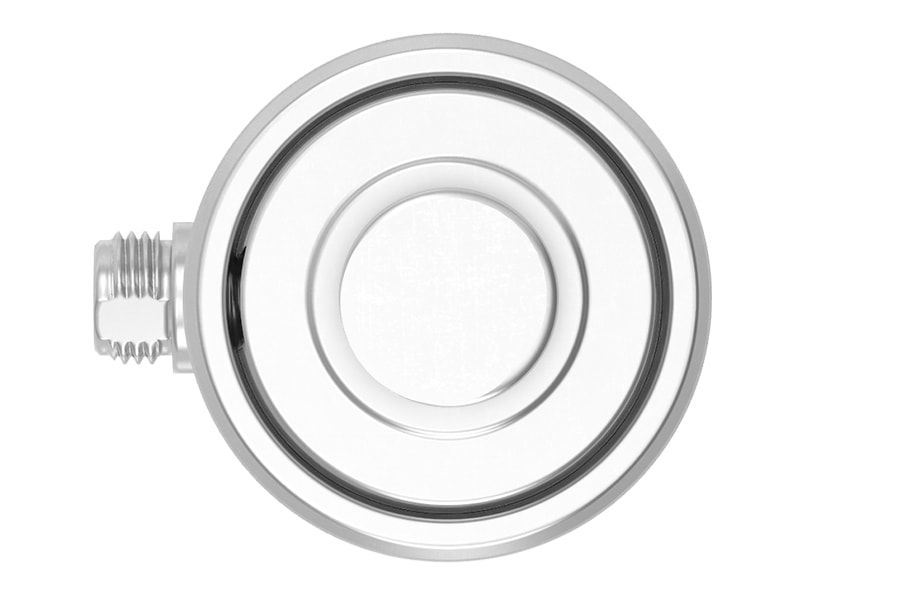

FSH04626 Miniature Threaded In Line Load Cell

Model LCM325 is a Tension and Compression Load Cell built for Endurance, Press, or Inline applications. The standard LCM325 Tension and Compression Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 4 Pin Micro Receptacle for a quick disconnect cable. You will also find options for external matched output or a Teflon cable readily available. For more capacity options range please see the LCM300 or LCM350. The Tension and Compression Load Cell offers high accuracy and high stiffness. It has a Nonlinearity of ±0.5%, Deflection of 0.001” to 0.002” nominal. The standard LCM325 Tension and Compression Load Cell can be customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping.
