Threaded In Line Load Cell
LCM550

Threaded In Line Load Cell

5 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Environmental Conditions
Features
Output Type
Connection Type
# Of Bridges/channels
Connector Type
Cable Type
Cable Length
Load Directions
Nonrepeatability
Max Operating Temperature
Min Operating Temperature
Max Excitation
Nonlinearity
Input Resistance
Ip / Nema Rating
Material
Description
Max Compensated Temperature
Min Compensated Temperature
Weight In Lb
Custom Special
50000 lb
1 1/2-12
1.73
6
2.73
1.73
TEDS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.2 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM550 , 50000 lb , Threaded Rod Load Cell , Material - 17-4 PH S.S. , 1 1/2-12-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P w/ Auto Recognition Chip
160 F
60 F
3.1
N
50000 lb
M36x4
1.73
6
2.73
1.73
TEDS
mV/V
Connector
1
6 Pin Bendix Receptacle, PT02E-10-6P
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.2 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM550 , 50000 lb , Threaded Rod Load Cell , Material - 17-4 PH S.S. , M36x4-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02E-10-6P w/ Auto Recognition Chip
160 F
60 F
3.1
N
50000 lb
1 1/2-12
1.98
6
1.98
1.98
RoHS
mV/V
Cable
1
24 Awg 4 Conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.2 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM550 , 50000 lb , Threaded Rod Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 1 1/2-12-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long
160 F
60 F
3.1
N
50000 lb
M36x4
1.98
6
1.98
1.98
RoHS
mV/V
Cable
1
24 Awg 4 Conductor Braided Shielded PVC Cable
10 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.2 %RO
350 Ohm
IP64
17-4 PH S.S.
LCM550 , 50000 lb , Threaded Rod Load Cell , RoHS Compliant, Material - 17-4 PH S.S. , M36x4-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long
160 F
60 F
3.1
N
5000 lb
1 1/2-12
1.98
6
1.98
1.98
Submersible, Water Resistance
mV/V
Cable & Connector
1
28 Awg 6 Conductor Braided Shielded Polyurethane Cable
1 ft
Tension & Compression
0.1 %RO
200 F
-45 F
18 VDC
0.5 %RO
350 Ohm
IP67
17-4 PH S.S.
LCM550, 5000 lb, Heavy Duty Threaded Rod Load Cell, IP67 Rated, 17-4 PH S.S., 1 1/2-12 Thread, 28 Awg 6 Conductor Braided Shielded Poly Cable, Axial Cable Exit Out of Bottom, 1 ft Long w/ 8 Pin Binder Male Plug 99-5171-00-08 (IP67 rated)
160 F
60 F
3.1
Y

> LCM550

Reliable and robust with a high fast response rate

LCM550 is a heavy-duty, 50000lb, high-quality threaded inline load cell for tension and compression applications. The fast response load cell operates reliably over a wide temperature range, making it suitable for various environments. As an IP64-rated device, the load cell has a sealed housing that prevents ingress of dust and water sprays from all directions.

LCM550 is available with a built-in connector that allows easy connection and disconnection and features TEDS auto-recognition of calibration data. Standard LCM550 models come with an integrated braided shielded cable.

  • height (excluding threads): 24.4mm
  • diameter: 43.9mm
  • capacity: 50000lb

Robust construction

The center covers are seam-welded to the sensor body, providing outstanding strength and enhanced protection against physical damage in addition to withstanding other harsh environmental conditions. A special heat treatment process has been applied to the flexure to improve durability, extending the life-cycle of the sensor. It also has a robust cable strain relief for rough environments to protect the cable.

Built for heavy-duty applications

The LCM550 has high stiffness and high natural frequency response rates, hence maintaining accuracy over its entire service life. Together with the robust construction, this feature makes LCM550 an ideal load cell for dynamic applications.

Easy mounting options

The LCM550 has male threads on both ends for easy and flexible mounting options. Also, the compact design allows you to mount it in different locations, including for those applications with limited spaces.

Connector and integrated cable versions

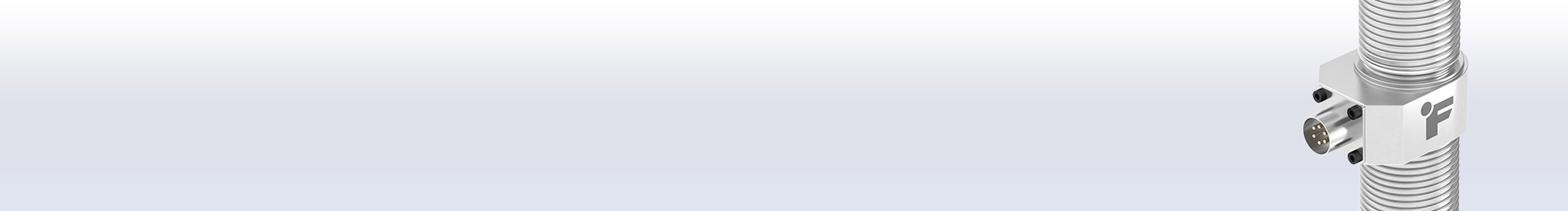

The updated version of LCM550 that features built-in TEDS has an integrated connector that easily disconnects a damaged cable, which saves time, leads to higher system availability and reduces total cost of ownership. Standard LCM550 models come with an integrated braided shielded cable that protects the signal wires while blocking any interference from stray magnetic and static electric fields.

High Accuracy

The LCM550 load cell provides enhanced accuracy, performance, and long-term stability. In particular, it has a nonlinearity of ±0.2%.

Calibration included

The LCM550 has been tested by FUTEK’s world-class calibration department and is NIST traceable. We can also reduce hidden costs and setup time by calibrating your sensor with FUTEK electronics of your choice. In addition, we offer calibration to ANSI Z540-1 and ISO 17025 standards upon request.

Best-in-class material

The exceptional quality of this sensor makes it highly durable and reliable. Its body is made of aerospace-grade 17-4 precipitation hardened stainless steel, which provides high strength, high hardness, low hysteresis and creep properties, and corrosion resistance over a wide temperature range.

Auto-recognition of calibration data

LCM550 is now offered in a connectorized version that has an automatic recognition of calibration data based on the TEDS IEEE 1451.4. The feature eliminates the slow and erroneous manual entry or configuration, hence saving installation time and money while improving accuracy and performance when paired with electronics that are TEDS compatible.

Made in California

Designed and manufactured in-house, using US-sourced materials. Our multidisciplinary engineering teams, high precision machining center, state-of-the-art quality assurance systems, and R&D and manufacturing facilities are all under one roof, allowing us to continuously reinvent and refine our products and processes.

+
