QSH01453 Custom Donut Load Cell

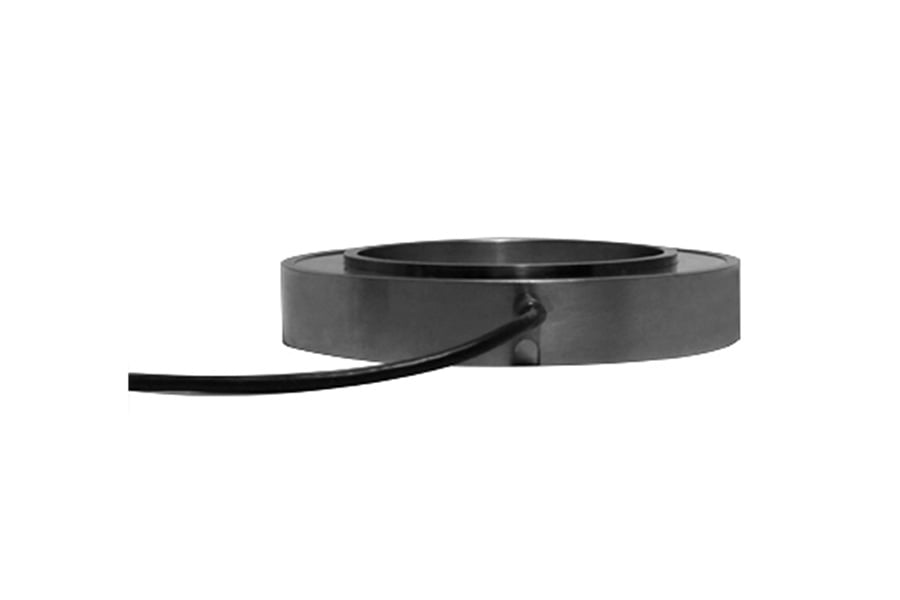

Model QLA341 is a custom donut load cell that is designed to measure forces up to 1,000 lbs . It stands at a height of 0.5 in (12.7 mm), with an outer diameter of 2.675 in (67.9 mm) and an ID of 1.8 in (45.7 mm). Constructed of 17-4 PH Stainless Steel, it is capable of operating in temperatures between – 60 to 185 °F (-50 to 85 °C). FUTEK can design custom donut load cells in various geometries and capacities.
Features
- Features anti-rotation key
- Available in amplified and non-amplified versions
- Unique low-profile design
- Vibration rated
Sensor
$0.00
Instrument
$0.00
Accessories
$0.00
Calibration
$0.00
03/03 - Accessories & Services
QSH01453
Change | Lead Time
QLA341 , 1000 lb , Custom Thru Hole Donut Load Cell , 1.8" [45.7 mm] ID x 2.675" [68 mm] OD x 0.5" [12.7 mm] H , Vibration Rated , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
