Donut/Through Hole Load Cell

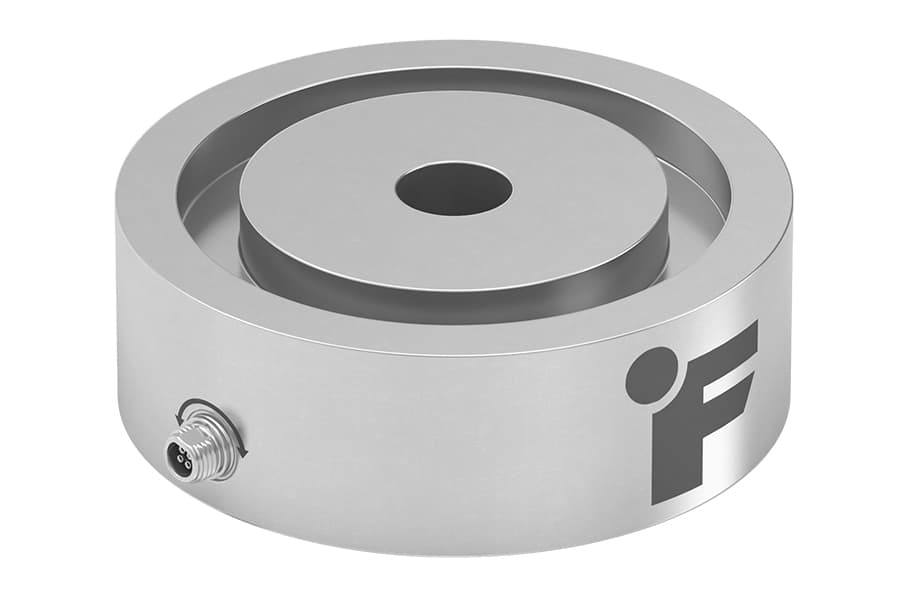

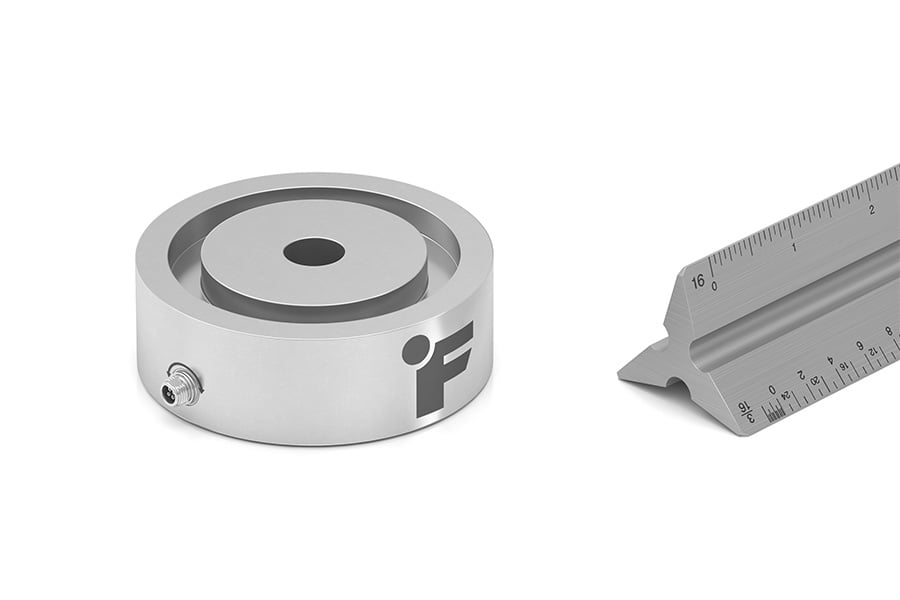

LTH500 , 2000 lb , Through Hole Donut Load Cell , 3/4" [19.05 mm] ID , RoHS Compliant , 500V Insulation Resistance & HiPot (DWV) Requirement , IP67 , 17-4 PH S.S. , 4 Pin Micro Receptacle

Spec Sheet

3D Model Download

In Stock

Listed price is in U.S. currency and subject to verification along with availability

Description

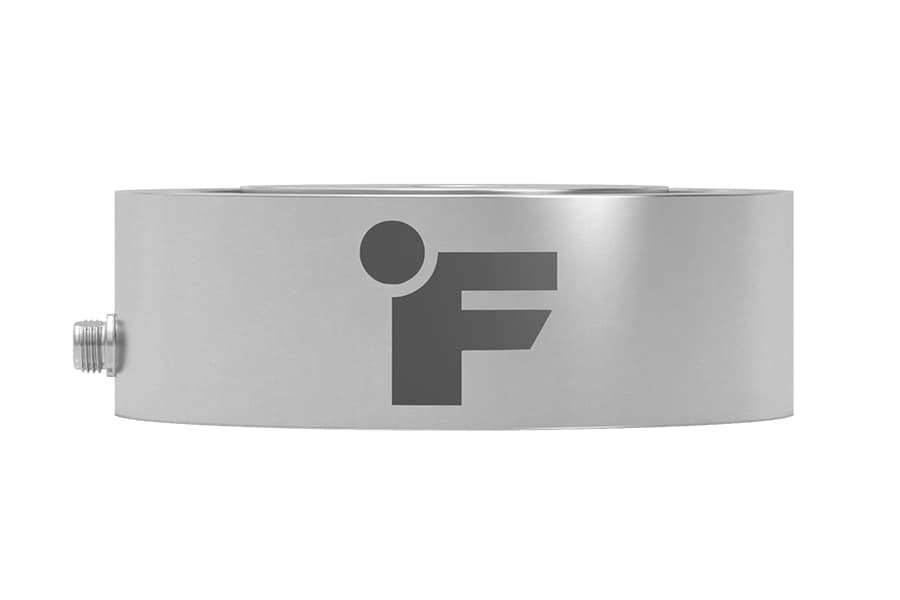

Model LTH500 is a Donut/Through Hole Load Cell built for Press or Inline compression applications. The standard LTH500 Donut Load Cell model has a very robust construction available in 17-4 Stainless Steel, with an I.D. range of 1/8” to 1 1/4” and a 4 Pin Micro Receptacle for a quick disconnect cable. You will also find options for external matched output readily available. The Donut/Through Hole Load Cell offers high accuracy and high stiffness. It has a Nonlinearity of ±0.5%, Deflection of 0.002” nominal, and Operating temperature of -60° F to 200° F. The standard LTH500 Donut Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping.

Features

Fast response time
Robust strain relief

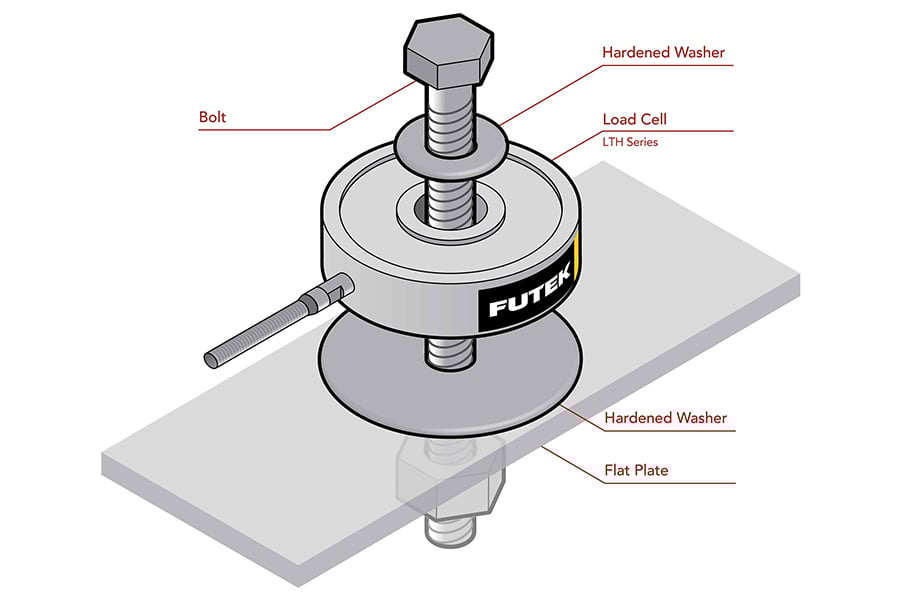

Compatible in load washer applications
Offered in a variety of capacities and inner diameters

Technical Documents

Resources

Bolt_Preload_Auditing

Donut Sensor Series Manual

How to reduce electrical noise in your system

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
Shunt Calibration	1		100		kOhm
Excitation	1	1		18	Vdc
Input Resistance	1		700		Ohms nom.
Insulation Resistance	1	10			MOhms @ 500 VDC
Safe Overload	1			150	% of R.O.
Capacity	1			2000	lbs
Hysteresis	1	-0.5		0.5	% of R.O.
Nonlinearity	1	-0.5		0.5	% of R.O.
Nonrepeatability	1	-0.5		0.5	% of R.O.
Output Resistance	1		700		Ohms nom.
Rated Output	1		2		mV/V nom.
Compensated Temperature	1	60		160	F
Operating Temperature	1	-60		200	F
Temperature Shift Span	1	-0.005		0.005	% of Load/F
Temperature Shift Zero	1	-0.005		0.005	% of R.O./F
Zero Balance	1	-3		3	% of R.O.
