MTA500 play_arrowFSH02299

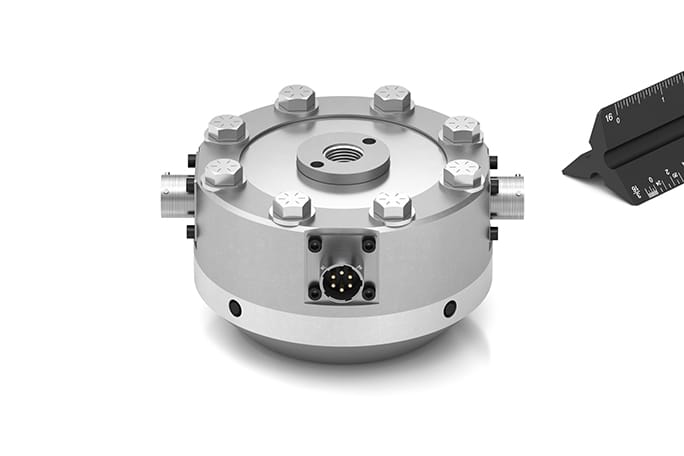

Low Profile Thrust and Moment Multi-Axis Load Cell

MTA500 , Ch Fz: 5000 lb; Ch Mx: 1000 in-lb; Ch My: 1000 in-lb , Low Profile Thrust and Moment Load Cell , Material - 17-4 PH S.S. , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Extraneous Load Factor Extraneous Load Factor
Listed price is in U.S. currency and subject to verification along with availability
Description

The MTA500 Multi Axis Load Cell (Tri-Axial) offers an excellent solution for measuring Mx, My, and Fz loads. The MTA500 is available in both Anodized Aluminum and Stainless.

The MTA500 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA and utilizes metal foil strain gauge technology.

Features
  • Used for quantification of test stand misalignment
  • Used for measurement of wind tunnel model aerodynamics
  • Can Measure Force via Moment Arms
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fz-1
10
Vdc
Mx-1
10
Vdc
My-1
10
Vdc
Excitation
Fz-1
1
18
Vdc
Mx-1
1
18
Vdc
My-1
1
18
Vdc
Input Resistance
Fz-1
700
Ohms nom.
Mx-1
350
Ohms nom.
My-1
350
Ohms nom.
Safe Overload
Fz-1
150
% of R.O.
Mx-1
150
% of R.O.
My-1
150
% of R.O.
Capacity
Fz-1
5000
lbs
Mx-1
1000
in-lb
My-1
1000
in-lb
Nonlinearity
Fz-1
-0.2
0.2
% of R.O.
Mx-1
-0.5
0.5
% of R.O.
My-1
-0.5
0.5
% of R.O.
Output Resistance
Fz-1
700
Ohms nom.
Mx-1
350
Ohms nom.
My-1
350
Ohms nom.
Rated Output
Fz-1
2
mV/V nom.
Mx-1
0.75
mV/V nom.
My-1
0.75
mV/V nom.
Compensated Temperature
Fz-1
60
160
F
Mx-1
60
160
F
My-1
60
160
F
Operating Temperature
Fz-1
-60
200
F
Mx-1
-60
200
F
My-1
-60
200
F
Temperature Shift Span
Fz-1
-0.01
0.01
% of Load/F
Mx-1
-0.01
0.01
% of Load/F
My-1
-0.01
0.01
% of Load/F
Temperature Shift Zero
Fz-1
-0.01
0.01
% of R.O./F
Mx-1
-0.01
0.01
% of R.O./F
My-1
-0.01
0.01
% of R.O./F
