Fatigue Rated Pancake Load Cell

LCF506 , Ch 1: 12500 lb; Ch 2: 12500 lb , Fatigue Rated Low Profile Universal Pancake Load Cell with Tension Base , 1 1/4-12-Thread , Dual Bridge , Material - 17-4 PH S.S. , 6 Pin Bendix Receptacle , PT02E-10-6P

Spec Sheet

3D Model Download

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

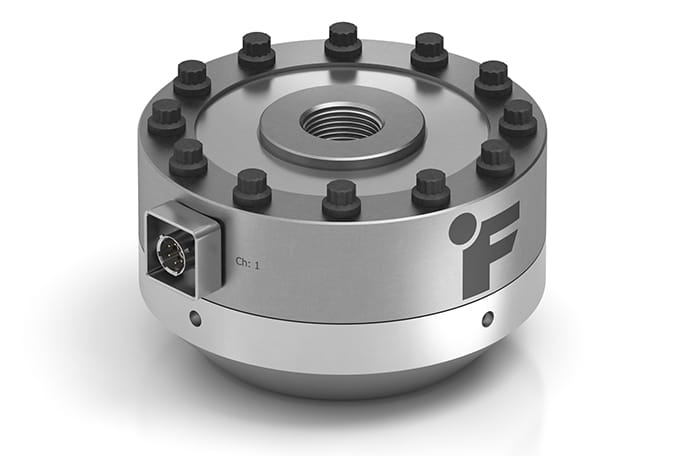

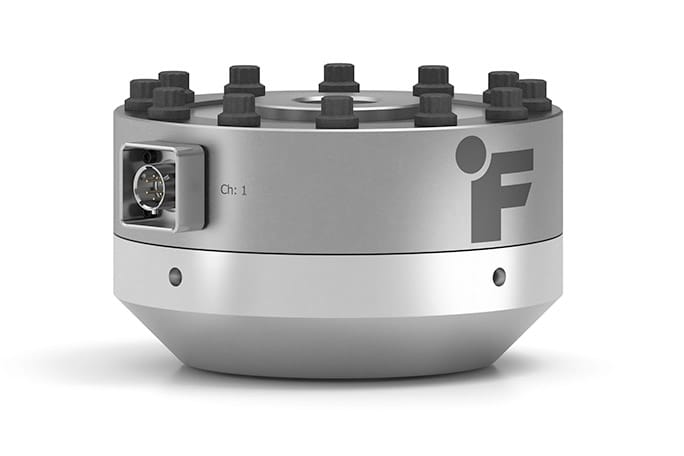

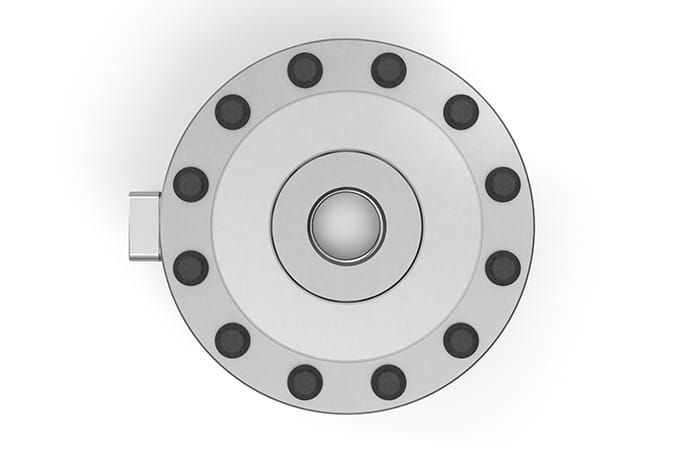

Pancake Load Cell (Tension Base)

Model LCF506 is a Pancake Load Cell (Tension Base) designed for tension and compression applications. The flexure is made from a rugged 17-4 Stainless Steel ranging from 12,500 lbs to 25,000 lbs, with options such as Metric Threads and Amplified Version readily available. The LCF506 Pancake Load Cell (Tension Base) has an added Tension Base making it suitable for Inline applications on Actuators or Threaded Assemblies.

The Pancake Load Cell (Tension Base) uses metal strain gauge technology, offering high accuracy. It has Nonlinearity of ±0.1% and Deflection of 0.001” to 0.0015” nominal. The standard LCF506 Pancake Load Cell (Tension Base) can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Load Cell product line this model is manufactured in US.

Product Highlights:

Weight: 20 lbs
Low Profile Design with Tension Base
Fatigue Rated
17-4 Stainless Steel Construction
In both Tension & Compression
Metric Thread Available
Amplified version Available
Utilizes Metal Foil Strain Gauge Technology

For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LCF Series is also available with TEDS / IEEE1451.4 option.

Features

Low profile design with tension base
For use in both tension and compression
Utilizes metal foil strain gauge technology
Highly resistant to off-axis loading

Technical Documents

Resources

how to reduce electrical noise in your system

Pancake Sensor Series Manual

Specifications

Calibration

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Calibration Excitation	1		10		Vdc
	2		10		Vdc
Excitation	1	1		20	Vdc
	2	1		20	Vdc
Input Resistance	1		350		Ohms nom.
	2		350		Ohms nom.
Insulation Resistance	1	500			Mohms @ 50 Vdc
	2	500			Mohms @ 50 Vdc
Safe Overload	1			300	% of R.O.
	2			300	% of R.O.
Capacity	1			12500	lbs
	2			12500	lbs
Hysteresis	1	-0.2		0.2	% of R.O.
	2	-0.2		0.2	% of R.O.
Nonlinearity	1	-0.1		0.1	% of R.O.
	2	-0.1		0.1	% of R.O.
Nonrepeatability	1	-0.02		0.02	% of R.O.
	2	-0.02		0.02	% of R.O.
Output Resistance	1		350		Ohms nom.
	2		350		Ohms nom.
Rated Output	1		2		mV/V nom.
	2		2		mV/V nom.
Compensated Temperature	1	60		160	F
	2	60		160	F
Operating Temperature	1	-60		200	F
	2	-60		200	F
Temperature Shift Span	1	-0.002		0.002	% of Load/F
	2	-0.002		0.002	% of Load/F
Temperature Shift Zero	1	-0.001		0.001	% of R.O./F
	2	-0.001		0.001	% of R.O./F
Zero Balance	1	-1		1	% of R.O.
	2	-1		1	% of R.O.
