Force Washer Load Cell

LLW555 , 2000 lb , Force Washer Load Cell , Fatigue Rated , Material - 2024-T4 , 1 3/4" [44.5 mm] ID , 26 Awg 4 Conductor Spiral Teflon Cable , 5 ft Long
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

Load Washer Load Cell

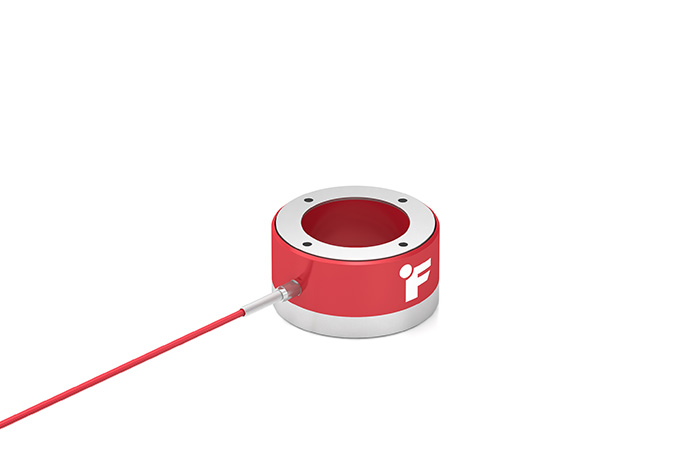

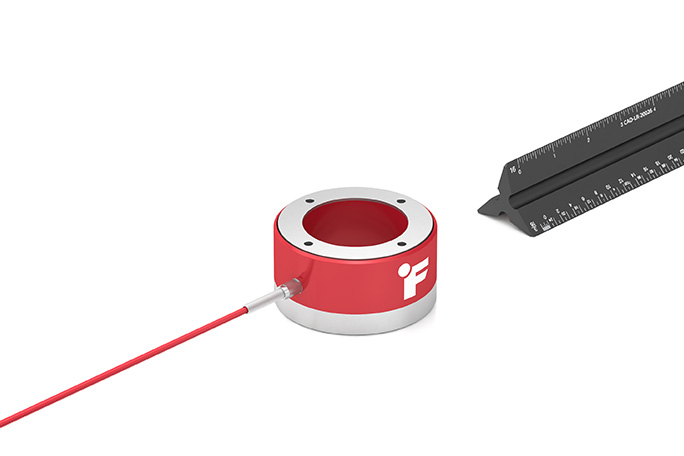

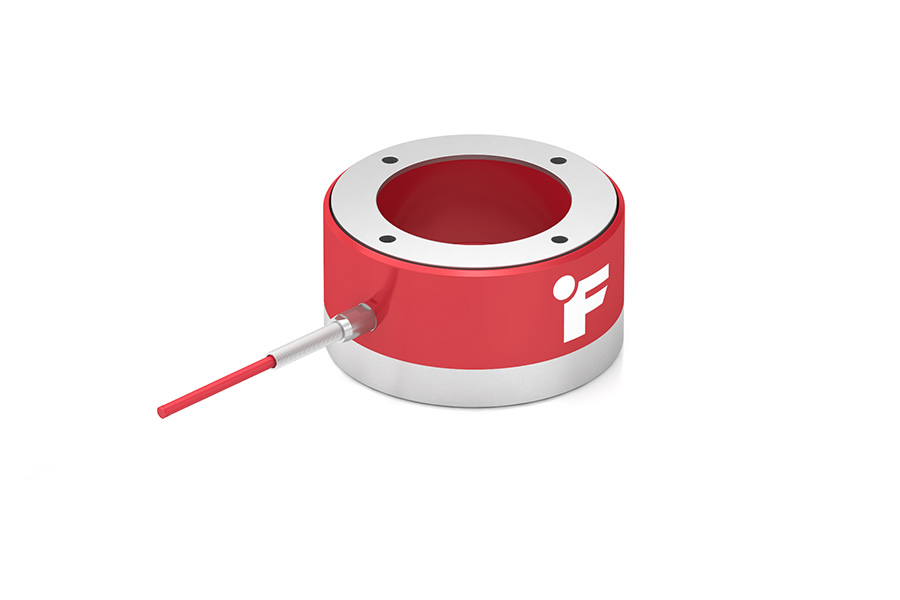

The LLW555 is a Load Washer Load Cell built for Press or Inline compression applications. The LLW555 Load Washer Load Cell standard model has a very robust construction available in 17-4 Stainless Steel with Anodized Aluminum cover, with a 2.98” outside diameter, and a 5 feet long 26 AWG 4 conductor spiral shielded Teflon cable.

The Load Washer Load Cell offers high stiffness with a Deflection of 0.001” nominal and Operating temperature of -60° F to 212° F. The Load Washer Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.

Features
  • Light Weight
  • Low Deflection
  • 17-4 Stainless Steel Construction
  • Compression
  • Operating Temperature of -65° F to 200° F
  • High Accuracy for Load Washer
  • Utilizes Metal Foil Strain Gauge Technology
Technical Documents
Specifications
Calibration
Electrical
Performance
Temperature
Zero
CHANNELMINTYPMAXUNIT
Calibration Excitation
1
10
Vdc
Excitation
1
1
18
Vdc
Input Resistance
1
500
Ohms nom.
Insulation Resistance
1
500
Mohms @ 50 Vdc
Capacity
1
2000
lbs
Hysteresis
1
-1
1
% of R.O.
Nonlinearity
1
-1
1
% of R.O.
Nonrepeatability
1
-0.2
0.2
% of R.O.
Output Resistance
1
500
Ohms nom.
Rated Output
1
0.8
mV/V nom.
Compensated Temperature
1
60
160
F
Operating Temperature
1
-60
212
F
Temperature Shift Span
1
-0.005
0.005
% of Load/F
Temperature Shift Zero
1
-0.005
0.005
% of R.O./F
Zero Balance
1
-3
3
% of R.O.
