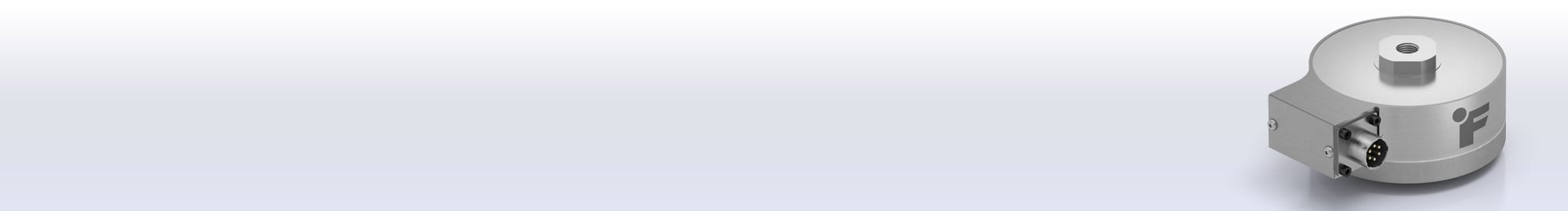

universal pancake load cell LCF400
LCF400

Universal Pancake Load Cell

8 Products
settings
Item Number
Load Capacity
Thread Size
Outer Diameter In Inches
Height In Inches
Length In Inches
Width In Inches
Features
Connection Type
Nonrepeatability
Max Excitation
Max Operating Temperature
Min Operating Temperature
Connector Type
Input Resistance
Hysteresis
Nonlinearity
Safe Overload
Cable Type
Cable Length
Output Type
Ip / Nema Rating
Environmental Conditions
Material
# Of Bridges/channels
Weight In Lb
Load Directions
Description
Custom Special
250 lb
M12x1.75
3.48
2
4.36
3.48
RoHS
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 250 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
N
500 lb
M12x1.75
3.48
2
4.36
3.48
RoHS
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 500 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
N
1000 lb
M12x1.75
3.48
2
4.36
3.48
RoHS
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 1000 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
N
2500 lb
M12x1.75
3.48
2
4.36
3.48
RoHS
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 2500 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
N
5000 lb
M12x1.75
3.48
2
4.36
3.48
RoHS
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 5000 lb , Tension & Compression Load Cell , RoHS Compliant, CC1 Wiring , Material - 17-4 PH S.S. , M12x1.75 Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
N
1000 lb
1/2-20
3.48
2
4.36
3.48
Connector
0.05 %RO
18 VDC
200 F
-65 F
6 Pin Bendix Receptacle, PT02E-10-6P
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
mV/V
IP64
Vacuum Rated
17-4 PH S.S.
2
3
Tension & Compression
LCF400 , 1000 lb , Tension & Compression Load Cell , Dual Bridge , CC1 Wiring , Material - 17-4 PH S.S. , 1/2-20-Thread , Vacuum Compatible/Low Outgassing , 6 Pin Bendix Receptacle , PT02E-10-6P
Y
3000 lb
1/2-20
3.48
2
4.36
3.48
Cable
0.05 %RO
18 VDC
230 F
-76 F
744 Ohm
0.1 %RO
0.1 %RO
150 %RO
24 Awg 4 Conductor Braided Shielded Teflon Cable
10 ft
mV/V
IP64
Cryogenic, Vacuum Rated
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 3000 lb , Tension & Compression Load Cell , Material - 17-4 PH S.S. , 1/2-20-Thread , Vacuum Compatible/Low Outgassing , -76 to 230 F (-60 to 110 C) Operating Temp. Range , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft
Y
5000 lb
1/2-20
3.48
2
4.36
3.48
Connector
0.05 %RO
18 VDC
200 F
-65 F
350 Ohm
0.2 %RO
0.2 %RO
150 %RO
mV/V
IP65
Water Resistance
17-4 PH S.S.
1
3
Tension & Compression
LCF400 , 5000 lb , Tension & Compression Load Cell , CC2 Wiring , 3 mV/V +/-0.25%, 350 Ohm Bridge, Material - 17-4 PH / 304 S.S. Passivated , 1/2-20-Thread , 6 Pin Receptacle per D38999/21YB98PN with EMI/Environmental Gasket
Y

Model LCF400 is a Pancake Load Cell that has an exceptional one-piece construction flexure design to resist high extraneous loads. The standard LCF400 Pancake Load Cell model has female/female threads, is made of 17-4 Stainless Steel and has a broad capacity ranging from 250 lb to 5,000 lb.


This Pancake Load Cell utilizes metal foil strain gauge technology that offers the highest accuracy. It has Nonlinearity of ±0.10%, Bridge Resistance of 700 Ohms, and Deflection of 0.002 to 0.005” nominal. The standard LCF400 Pancake Load Cell can be modified or customized to meet your requirements and most models are in our inventory making them available for quick delivery.


One of novel applications for this universal pancake load cell its measuring loads in weighing load rigging or lifting applications. Instead of replacing or customizing components, LCF400 pancake load cell can be integrated into the existing load block setup with minimal intervention to the hoisting and load block components. LCF400 with axially mounted rod end bearings is connected to the load block and the hoist hook using the existing shackles and load pins, leaving the existing hoisting elements largely intact. For further info on how LCF400 can be used as a shackle pin load cell, check the application note.

universal pancake load cell LCF400_1
universal pancake load cell LCF400_1
universal pancake load cell LCF400_2
+
