MTA400 play_arrowFSH04139

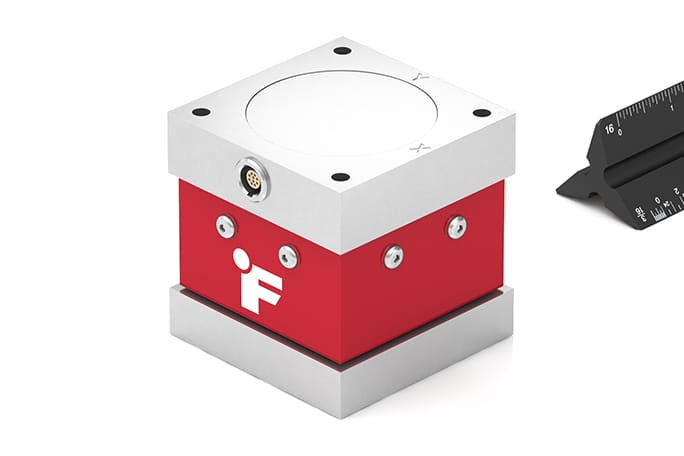

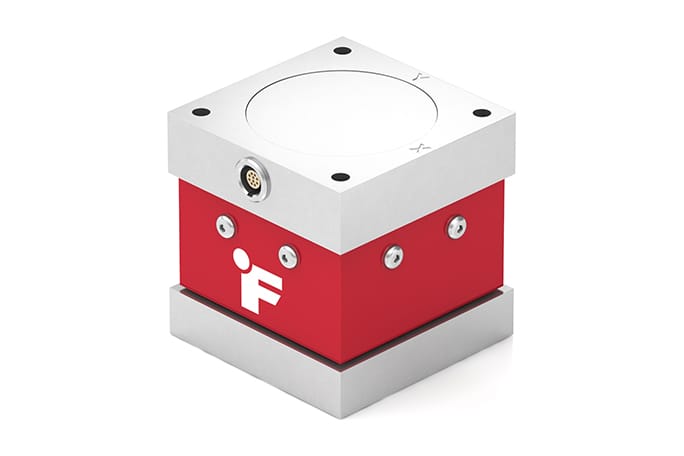

Triaxial Load Cell

MTA400 , Ch Fx: 250 lb; Ch Fy: 250 lb; Ch Fz: 500 lb , Tri-Axial Load Cell , RoHS Compliant, Material - 7075-T6 , 1/4-28-Thread , 10 Pin Lemo Receptacle, EGG.1B.310.CLL
Spec Sheet Spec Sheet
3D Model Download 3D Model Download
Extraneous Load Factor Extraneous Load Factor
inStockimg
In Stock
Listed price is in U.S. currency and subject to verification along with availability
Description

The MTA400 Tri-Axial Load Cell offers an excellent solution for measuring Fx, Fy, and Fz loads. The MTA400 tri axial load cell is made from Aluminum, weighs 32 oz and uses metal foil strain gauge technology.

The MTA400 triaxial load cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA.

Features
  • Ideal for wind tunnel lift, drag, and side force measurement
  • Low mechanical crosstalk
  • Tri axis load cell Ideal for flight control force auditing and measurement of Robotic Actuator and
  • Reaction Forces
Specifications
Calibration
Electrical
Mechanical
Performance
Temperature
CHANNELMINTYPMAXUNIT
Calibration Excitation
Fx-1
10
Vdc
Fy-1
10
Vdc
Fz-1
10
Vdc
Shunt Calibration
Fx-1
100
kOhm
Fy-1
100
kOhm
Fz-1
200
kOhm
Excitation
Fx-1
1
18
Vdc
Fy-1
1
18
Vdc
Fz-1
1
18
Vdc
Input Resistance
Fx-1
700
Ohms nom.
Fy-1
700
Ohms nom.
Fz-1
700
Ohms nom.
Safe Overload
Fx-1
150
% of R.O.
Fy-1
150
% of R.O.
Fz-1
150
% of R.O.
Capacity
Fx-1
250
lbs
Fy-1
250
lbs
Fz-1
500
lbs
Hysteresis
Fx-1
-0.25
0.25
% of R.O.
Fy-1
-0.25
0.25
% of R.O.
Fz-1
-0.25
0.25
% of R.O.
Nonlinearity
Fx-1
-0.25
0.25
% of R.O.
Fy-1
-0.25
0.25
% of R.O.
Fz-1
-0.25
0.25
% of R.O.
Nonrepeatability
Fx-1
-0.1
0.1
% of R.O.
Fy-1
-0.1
0.1
% of R.O.
Fz-1
-0.1
0.1
% of R.O.
Output Resistance
Fx-1
700
Ohms nom.
Fy-1
700
Ohms nom.
Fz-1
700
Ohms nom.
Rated Output
Fx-1
2
mV/V nom.
Fy-1
2
mV/V nom.
Fz-1
1
mV/V nom.
Compensated Temperature
Fx-1
60
160
F
Fy-1
60
160
F
Fz-1
60
160
F
Operating Temperature
Fx-1
-60
200
F
Fy-1
-60
200
F
Fz-1
-60
200
F
Temperature Shift Span
Fx-1
-0.01
0.01
% of Load/F
Fy-1
-0.01
0.01
% of Load/F
Fz-1
-0.01
0.01
% of Load/F
Temperature Shift Zero
Fx-1
-0.01
0.01
% of R.O./F
Fy-1
-0.01
0.01
% of R.O./F
Fz-1
-0.01
0.01
% of R.O./F
