Triaxial Load Cell

MTA600 (QMA104) , Ch Fx: 2500 lb; Ch Fy: 2500 lb; Ch Fz: 5000 lb , Submersible Tri Axial Load Cell , Material - 17-4 PH S.S. , Submersible , 24 Awg 12 Conductor Foil Shielded PVC Cable , 10 ft Long w/ DB15 Male

Spec Sheet

3D Model Download

Extraneous Load Factor

Listed price is in U.S. currency and subject to verification along with availability

Description

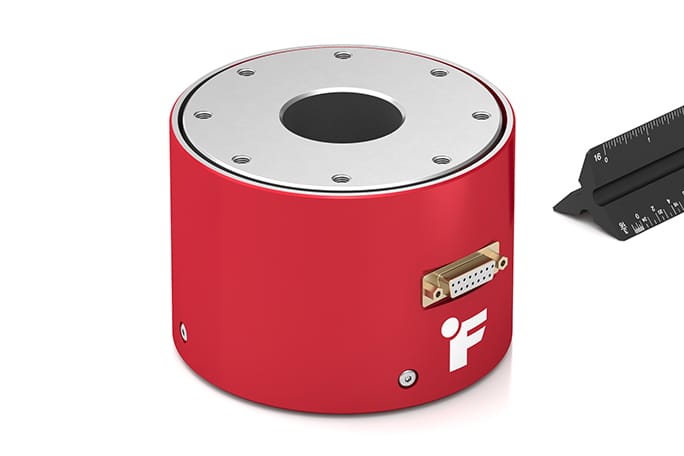

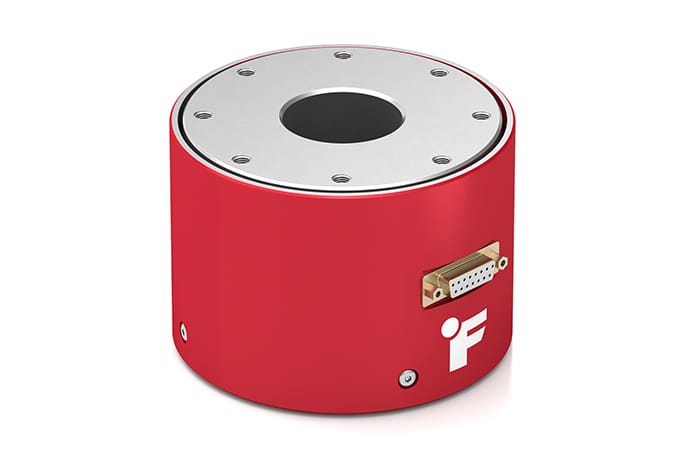

The MTA600 Multi Axis Load Cell (Tri-Axial) offers an excellent solution for measuring Fx, Fy, and Fz loads. The MTA600 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA.

Features

Can support simultaneous force measurements on the X, Y, Z axes
Used for wind tunnel model applications
Used for triaxial dynamometer applications for motion studies

Technical Documents

Resources

How to reduce electrical noise in your system

MTA Series Manual

Specifications

Electrical

Mechanical

Performance

Temperature

Zero

	CHANNEL	MIN	TYP	MAX	UNIT
Input Resistance	Fx-1		350		Ohms nom.
	Fy-1		350		Ohms nom.
	Fz-1		700		Ohms nom.
Safe Overload	Fx-1			150	% of R.O.
	Fy-1			150	% of R.O.
	Fz-1			150	% of R.O.
Capacity	Fx-1			2500	lbs
	Fy-1			2500	lbs
	Fz-1			5000	lbs
Hysteresis	Fx-1	-0.5		0.5	% of R.O.
	Fy-1	-0.5		0.5	% of R.O.
	Fz-1	-0.5		0.5	% of R.O.
Nonlinearity	Fx-1	-0.5		0.5	% of R.O.
	Fy-1	-0.5		0.5	% of R.O.
	Fz-1	-0.5		0.5	% of R.O.
Nonrepeatability	Fx-1	-0.2		0.2	% of R.O.
	Fy-1	-0.2		0.2	% of R.O.
	Fz-1	-0.2		0.2	% of R.O.
Output Resistance	Fx-1		350		Ohms nom.
	Fy-1		350		Ohms nom.
	Fz-1		700		Ohms nom.
Rated Output	Fx-1		1.5		mV/V nom.
	Fy-1		1.5		mV/V nom.
	Fz-1		0.5		mV/V nom.
Compensated Temperature	Fx-1	60		160	F
	Fy-1	60		160	F
	Fz-1	60		160	F
Temperature Shift Zero	Fx-1	-0.02		0.02	% of R.O./F
	Fy-1	-0.02		0.02	% of R.O./F
	Fz-1	-0.02		0.02	% of R.O./F
Zero Balance	Fx-1	-5		5	% of R.O.
	Fy-1	-5		5	% of R.O.
	Fz-1	-5		5	% of R.O.
