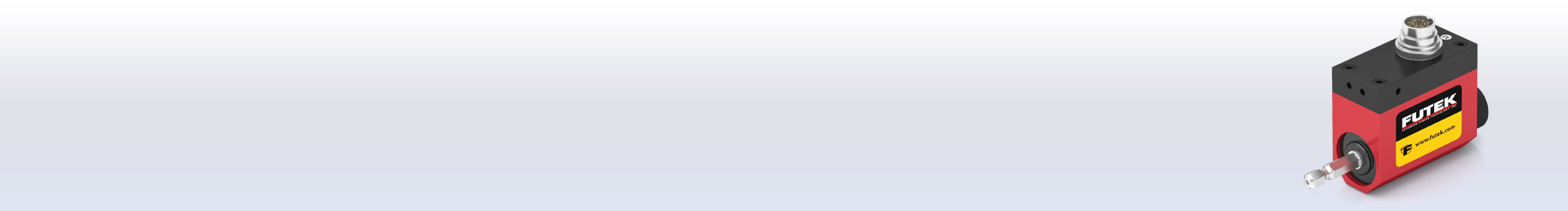

Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
TRH605

Non-Contact Hex-Drive Rotary Torque Sensor with Encoder

6 Products
settings
Item Number
Torque Capacity
Torque Sensor Type
Mounting Type
Output Type
Max Operating Temperature
Min Operating Temperature
Nonrepeatability
Nonlinearity
Max Excitation
Safe Overload
Connection Type
Ip / Nema Rating
Rotary Type
Connector Type
Temperature Shift Zero
Description
Custom Special
4.4253 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 0.5 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
8.8507 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 1 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
17.7014 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 2 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
53.1044 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 6 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
106.209 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 12 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N
159.313 in-lb
Rotary
Hex Drive
Encoder TTL, VDC
176 F
-13 F
0.2 %RO
0.2 %RO
26 VDC
150 %RO
Connector
IP40
Non Contact
12 Pin Binder Receptacle, 09-0331-90-12
0.01 TSZ
TRH605 , 18 N-m , Non-Contact Hex Drive Rotary Torque Sensor w/ Encoder , 1/4" Hex Drive , 12 Pin Binder Receptacle, 09-0331-90-12
N

FUTEK’s Rotary Torque Sensor - Non Contact Hex Drive with Encoder offers a unique solution for torque auditing applications. The TRH605 Rotary Torque Sensor - Non Contact Hex Drive with Encoder is available in a wide capacity range and utilizes strain gauge technology. FUTEK's TRH Series is also available with a TEDS / IEEE1451.4 option.

Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
Non-Contact Hex-Drive Rotary Torque Sensor with Encoder
