hex drive slip ring rotary torque sensor
TRH300

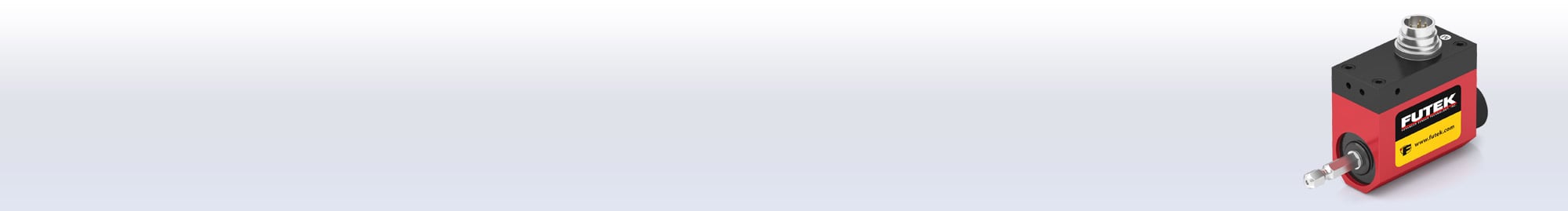

Slip-Ring Hex-Drive Rotary Torque Sensor

4 Products
settings
Item Number
Torque Capacity
Torque Sensor Type
Output Type
Max Operating Temperature
Min Operating Temperature
Nonrepeatability
Nonlinearity
Input Resistance
Max Excitation
Safe Overload
Connection Type
Ip / Nema Rating
Rotary Type
Connector Type
Temperature Shift Zero
Description
Custom Special
17.7014 in-lb
Rotary
mV/V
122 F
41 F
0.2 %RO
0.2 %RO
350 Ohm
11 VDC
150 %RO
Connector
IP40
Slip ring
6 Pin Binder Receptacle, 09-0323-99-06
0.01 TSZ
TRH300 , 2 N-m , Hex Drive Rotary Torque Sensor , 1/4" Hex Drive , 6 Pin Binder Receptacle, 09-0323-99-06
N
53.1044 in-lb
Rotary
mV/V
122 F
41 F
0.2 %RO
0.2 %RO
350 Ohm
11 VDC
150 %RO
Connector
IP40
Slip ring
6 Pin Binder Receptacle, 09-0323-99-06
0.01 TSZ
TRH300 , 6 N-m , Hex Drive Rotary Torque Sensor , 1/4" Hex Drive , 6 Pin Binder Receptacle, 09-0323-99-06
N
106.209 in-lb
Rotary
mV/V
122 F
41 F
0.2 %RO
0.2 %RO
350 Ohm
11 VDC
150 %RO
Connector
IP40
Slip ring
6 Pin Binder Receptacle, 09-0323-99-06
0.01 TSZ
TRH300 , 12 N-m , Hex Drive Rotary Torque Sensor , 1/4" Hex Drive , 6 Pin Binder Receptacle, 09-0323-99-06
N
177.015 in-lb
Rotary
mV/V
122 F
41 F
0.2 %RO
0.2 %RO
350 Ohm
11 VDC
150 %RO
Connector
IP40
Slip ring
6 Pin Binder Receptacle, 09-0323-99-06
0.01 TSZ
TRH300 , 20 N-m , Hex Drive Rotary Torque Sensor , 1/4" Hex Drive , 6 Pin Binder Receptacle, 09-0323-99-06
N

FUTEK’s Hex Drive Rotary Torque Sensor offers a unique solution for torque auditing applications. The TRH300 Rotary Torque Sensor - Hex Drive is available in a wide capacity range and utilizes strain gauge technology. FUTEK 's TRH Series is also available with a TEDS / IEEE1451.4 option.

hex drive rotary torque sensor
hex drive rotary torque sensor
hex drive slip ring rotary torque sensor
hex drive slip ring rotary torque sensor
hex drive rotary torque sensor
hex drive rotary torque sensor
