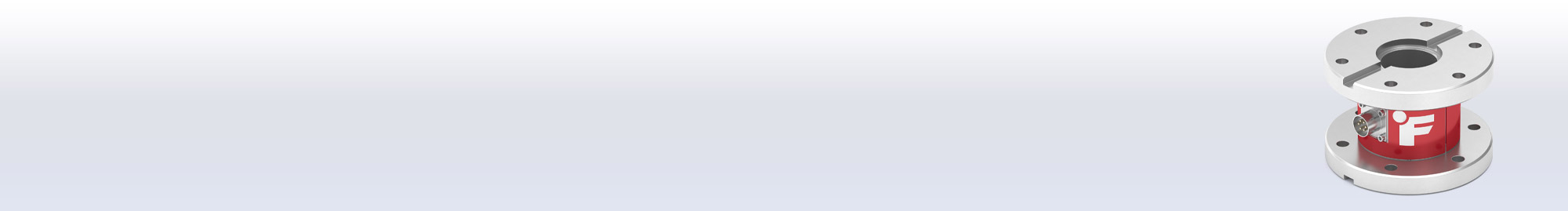

TFF600

Flange-to-Flange Reaction Torque Sensor

3 Products

settings

Item Number	Torque CapacityME	Torque Sensor Type	Mounting Type	Output Type	Height In Inches	Length In Inches	Width In Inches	Outer Diameter In Inches	Inner Diameter In Inches	Features	Max Operating TemperatureME	Min Operating TemperatureME	Nonrepeatability	Nonlinearity	Input Resistance	Max Excitation	Safe Overload	Connection Type	Ip / Nema Rating	Connector Type	# Of Bridges/channels	Material	Temperature Shift Zero	Max Compensated TemperatureME	Min Compensated TemperatureME	Description	Weight In Lb	Custom Special
FSH04020	2000 in-lb	Reaction	Flange	mV/V	3	4.48	4.48	4.48	1.5	RoHS	200 F	-60 F	0.2 %RO	0.2 %RO	350 Ohm	18 VDC	150 %RO	Connector	IP40	6 Pin Bendix Receptacle, PT02E-10-6P	1	2024-T4	0.002 TSZ	160 F	60 F	TFF600, 2000 in-lb, Reaction Torque Sensor, RoHS Compliant, Material - 2024-T4, 1 1/2" [38.1 mm] ID, 6 Pin Bendix Receptacle, PT02A-10-6P	2	N
FSH04022	2000 in-lb	Reaction	Flange	mV/V	3	4.48	4.48	4.48	1.5	RoHS, TEDS	200 F	-60 F	0.2 %RO	0.2 %RO	394 Ohm	18 VDC	150 %RO	Connector	IP40	6 Pin Bendix Receptacle, PT02E-10-6P	1	2024-T4	0.002 TSZ	160 F	60 F	TFF600 , 2000 in-lb , Reaction Torque Sensor , RoHS Compliant , Material - 2024-T4 , 1 1/2" [38.1 mm] ID , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P	2	N
FSH04021	10000 in-lb	Reaction	Flange	mV/V	3	4.48	4.48	4.48	1.5	RoHS	200 F	-60 F	0.2 %RO	0.2 %RO	372 Ohm	18 VDC	150 %RO	Connector	IP40	6 Pin Bendix Receptacle, PT02E-10-6P	1	17-4 PH S.S.	0.002 TSZ	160 F	60 F	TFF600 , 10000 in-lb , Reaction Torque Sensor , RoHS Compliant , Material - 17-4 PH S.S. , 1 1/2" [38.1 mm] ID , 6 Pin Bendix Receptacle, PT02E-10-6P	5	N

The TFF600 Flange to Flange Reaction Torque Sensor can accommodate applications that include automotive braking, engine and transmission dynamometers, torque table, fastener testing, and aircraft engine testing. This particular Hollow Flange Torque Sensor can be used to evaluate low-torque components and controls. Flange-reaction torque sensors measure small-reaction torque levels using flange-to-flange connections in-line with the component under test.

The standard TFF600 Reaction Torque Sensor can be modified or customized to meet your requirements. This specific model is designed with flanges, enabling easy installation or adaptation; it is rugged enough for factory use, yet accurate enough for the laboratory. Available maximum torque ranges are 2,000 in-lb to 10,000 in-lb (226 to 1,130 Nm).
